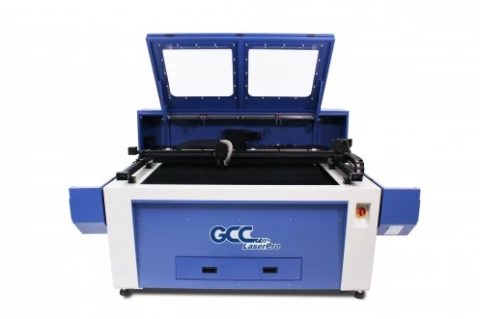

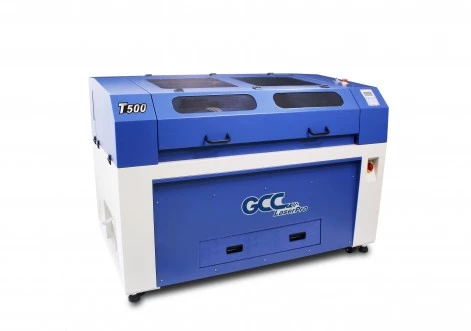

GCC LaserPro T500 Laser Cutter

Description

Developed on the basis of GCC LaserPro’s accumulated technology with new powerful motion system. GCC LaserPro T500 is capable of exceptional 3D engraving quality and cutting at high speed which make it a high ROI laser system on the market.

Equipped powerful 200W laser tube allow user to deliver clear and fine cutting result. GCC LaserPro T500 is a dedicated design to fulfill your cutting and engraving needs in one machine with high throughput and superb quality. With a series of user-definable features, the T500 is the flexible and user-friendly laser system for your choice.

Specifications

Format:	Benchtop
Laser Source:	CO2
Laser Output Power:	200 W
Laser Wavelength:	10.6 um (IR)
Beam Delivery:	Flatbed
Work Area X:	1346 mm
Work Area Y:	916 mm
Work Area Z:	127 mm
Application:	Sheet Cutting
Sector:	Home Improvement, Engineering, Job Shop
Materials:	Stainless Steel, Aluminum, Gold, Plastic, Wood, Nylon, Acrylic
Voltage Requirement:	220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz
Included Options:	Air Assist, Fume Extraction
Safety Enclosure:	Yes
Laser Safety Class:	Class 2
Max Cutting Speed:	1016 mm/s

Download Data Sheet

Features

RoHS Compliance
AC Servo Motor and Unique Motion
Excellent Speedy Scribing Quality
AAS Contour Cutting Device (patented)(Optional)
SmartPOINT Positioning Device (Patented)
Outstanding Cutting Capability
Superior Engraving Quality
Knife-shaped Cutting Table
LED Light Illumination System
Grid Cutting Table
Pass-through Front & Rear Doors (Optional)
Built-In Networking Connection
Job Preview Function
Bridge Cutting

Applications

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more. With this convenient selecting the appropriate job type (engraving or cutting) and material category, minimizing wasted time and materials.
