Description
Introducing our state-of-the-art Fiber Laser Cutting Machines, designed to meet the diverse needs of modern manufacturing and fabrication industries. These machines are engineered with precision and efficiency in mind, offering a range of models to cater to various cutting requirements. Whether you are working with small or large materials, our machines provide the flexibility and power needed to achieve exceptional results.

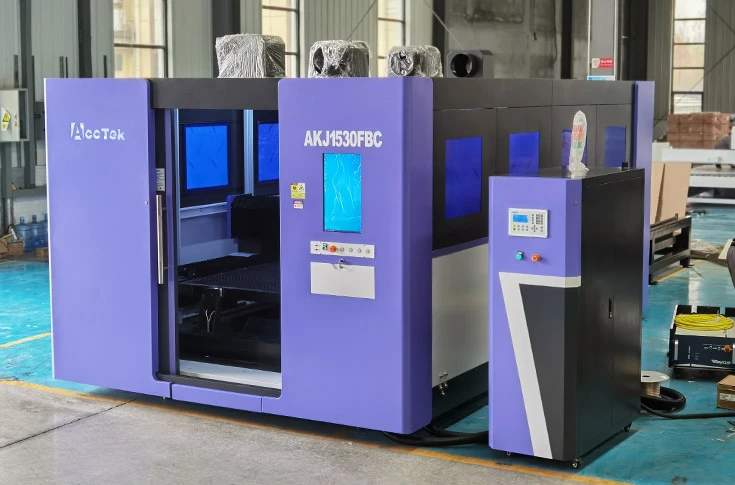

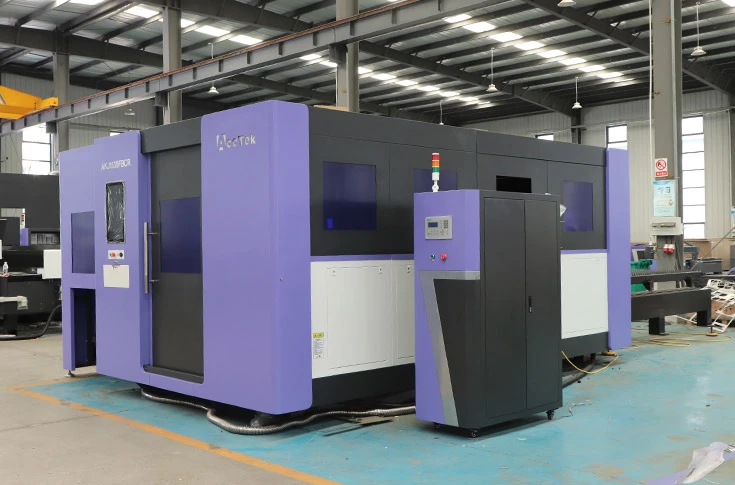

Each model, from the AKJ-1325FBC to the AKJ-2560FBC, is equipped with a robust Fiber Laser system, capable of delivering power ranging from 1500W to an impressive 40000W. This allows for high-speed cutting with remarkable accuracy, ensuring that every cut is clean and precise. The use of renowned laser generators such as Raycus, Max, BWT, JPT, and IPG guarantees reliability and performance, making these machines a valuable asset in any production environment.
The Gantry Double Drive Structure enhances the stability and speed of the cutting process, with a maximum speed of 100m/min and an acceleration of 1.0G. This ensures that even the most demanding projects can be completed swiftly without compromising on quality. The machines boast a positioning accuracy of ±0.01mm and a repeat accuracy of ±0.03mm, highlighting their capability to deliver consistent and precise results time after time.
Our Fiber Laser Cutting Machines are available in various cutting ranges, from 1300*2500mm to 2500*6000mm, providing the versatility needed for different applications. Whether you are cutting intricate designs or large-scale components, these machines offer the adaptability and power to handle any task with ease. Invest in our cutting-edge technology to enhance your production capabilities and achieve superior quality in every project.
Fiber Laser Cutting Machine 1500-40000W Multiple Models Available
Specifications
| Format: | Tower |
|---|---|
| Laser Source: | Fiber |
| Laser Output Power: | 1500 W |
| Laser Wavelength: | 1064 nm (IR), 1070 nm (IR) |
| Beam Delivery: | Flatbed, Large Flatbed Platform |
| Work Area X: | 1300 mm |
| Work Area Y: | 2500 mm |
| Work Area Z: | 6000 mm |
| Application: | Tube Cutting, Sheet Cutting, Stent Cutting, Die Cutting |
| Sector: | Home Improvement, Industrial, Engineering |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic |
| Voltage Requirement: | Other / Not Specified |
| Included Options: | CNC, Air Assist, Fume Extraction, Rotary Attachment, Laser Chiller |
| Safety Enclosure: | Yes |
| Laser Safety Class: | Other / Not Specified |
| Max Cutting Speed: | 1667 mm/s |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Versatile Cutting Range: Models available with cutting dimensions from 1300*2500mm to 2500*6000mm, catering to various industrial needs.
- High-Power Fiber Laser: Equipped with fiber laser power options ranging from 1500W to 40000W, ensuring efficient and precise cutting for different materials.
- Reliable Laser Generators: Choose from top brands like Raycus, Max, BWT, JPT, and IPG for consistent performance and longevity.
- Advanced Transmission System: Features a Gantry Double Drive Structure for enhanced stability and precision during operation.
- Impressive Speed and Acceleration: Maximum speed of 100m/min and acceleration of 1.0G, optimizing productivity and reducing processing time.
- Exceptional Accuracy: Positioning accuracy of ±0.01mm and repeat accuracy of ±0.03mm, ensuring high precision in every cut.
- Gantry Structure: The fuselage adopts a gantry structure, and the beam is integrally cast, which has higher rigidity, stability, and shock resistance.
- Cooling, lubrication and dust removal systems: The machine has a complete cooling system, lubrication system, and dust removal system to ensure stable, efficient, and long-lasting operation of the machine.
- Adjustable laser head: The laser head is automatically adjusted to keep the focal length constant so that the cutting quality is more stable.Professional CAD/CAM automatic programming software and automatic nesting software can help save raw materials to the greatest extent.
Applications
AKJ-FBC laser cutting machine is a high-end laser cutting machine model, widely used in electronics, electrical, mechanical hardware, new energy, packaging, solar energy, LED, automobile, and other industries. The fiber laser cutting machine is used to cut various metal materials of different materials, such as stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals, etc.
Frequently Asked Questions
What is the cutting range of the AKJ-1325FBC model?
What types of laser generators are compatible with these fiber laser cutting machines?
What is the maximum laser power available for these machines?
What is the maximum speed of these fiber laser cutting machines?
What is the positioning accuracy of these machines?
What is the repeat accuracy of the fiber laser cutting machines?
What transmission system is used in these fiber laser cutting machines?
Got more questions? Use the inquiry form to ask the supplier directly.
