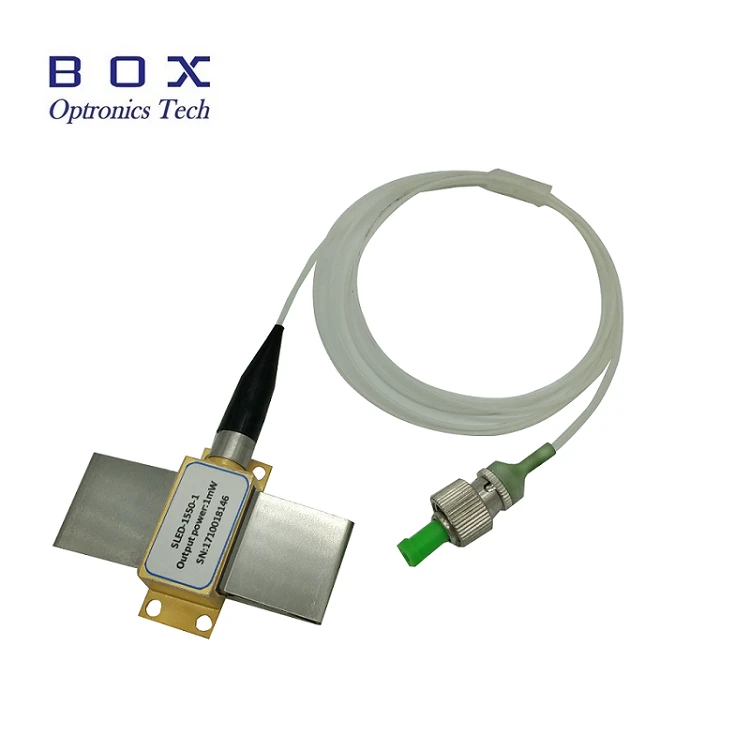

SLED Butterfly Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Shenzhen Box Optronics Technology Co.,Ltd. -
On FindLight:
since 2025
Description
BOX Optronics’ BFSLD-XXXX-10SM-FA series is a family of ultra-broadband SLED butterfly laser diodes that deliver high-power, low-coherence light ideal for precision fiber sensing, OCT, fiber-optic gyroscopes and test instrumentation.
Available at 1310 nm, 1450 nm, 1550 nm or 1610 nm, each device produces up to 10 mW CW power into SMF-28e fiber with a 3 dB bandwidth wider than 55 nm and spectral ripple below 0.2 dB, giving excellent spatial resolution and low polarization sensitivity. The industry-standard 14-pin butterfly package integrates a TEC, thermistor and 30 dB optical isolator for wavelength-locked, drift-free operation over 0–70 °C case temperature.
A 1.0 m, 900 µm loose-tube pigtail terminated with FC/APC connectors ensures plug-and-play compatibility, while Telcordia GR-468 qualification and RoHS compliance guarantee 25-year lifetime performance in demanding field and biomedical environments.

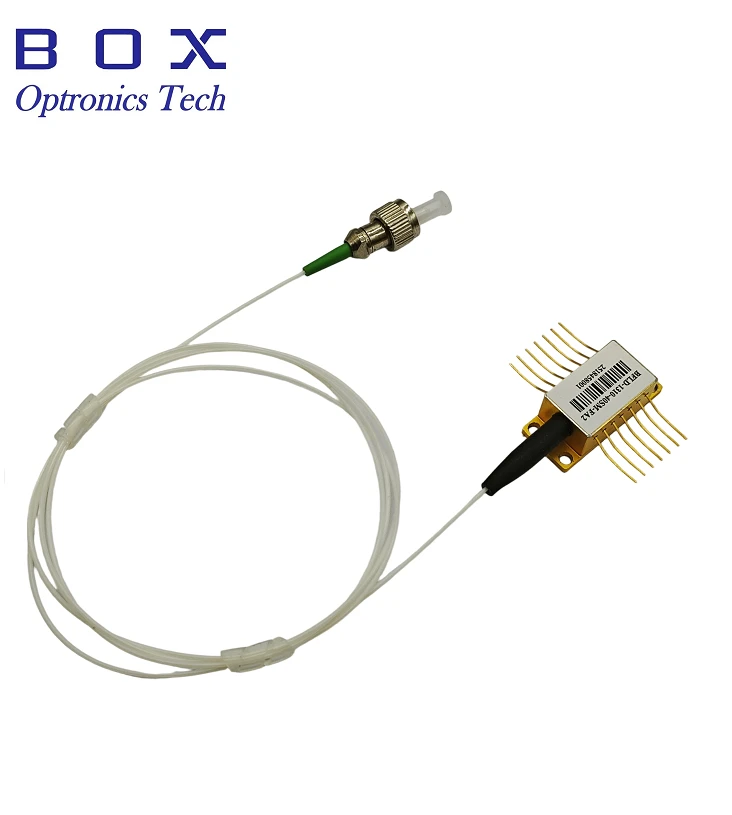

SLED Butterfly Laser Diode
Specifications |
|
|---|---|
| SLED Type: | Fiber Coupled |
| Operating Power (typical): | 10 mW |
| Center Wavelength (typical): | 1310 nm |
| Bandwidth (FWHM): | 40 nm |
Features
- Wavelength 1310nm,1450nm,1550nm,1610nm
- Industry-standard, 14-pins butterfly package
- Built-in optical isolator
- Low spectral ripple, broad bandwidth
- Low polarization sensitivity
Reliability: Telcordia GR-468. RoHS
Applications
- Optical fiber communications system
- Optical fiber gyroscopes
- Optical fiber sensors
- Optical test instruments
- Optical coherence tomography
- Biomedical imaging systems
