Description

The 1310nm SLD Laser Diode Butterfly (8 PIN LP) Module is a cutting-edge optical component designed for high precision and reliability. This module is engineered with a spontaneous emission light source, ensuring low ripple and a low polarization extinction ratio. Its wide-spectrum light source boasts a spectral width greater than 40nm, making it an ideal choice for applications requiring broad wavelength coverage. The module is housed in an 8-pin butterfly package, complete with a thermoelectric cooler (TEC) and thermistor, ensuring optimal performance across a wide temperature range.

Designed with high reliability in mind, this laser diode module is compliant with RoHS standards, underscoring its commitment to environmental responsibility. The robust construction allows it to operate efficiently in case temperatures ranging from -40℃ to 70℃, making it suitable for various demanding environments. The module's central wavelength is finely tuned between 1307nm and 1313nm, providing precise optical performance for advanced applications.

Attention to detail in the mechanical design ensures seamless integration into existing systems. The module's fiber characteristics include a YOFCSMBI1012-A fiber type with a length of 2 meters from the module case to the fiber end, and it is equipped with an FC/APC connector. The jacket diameter is ∅900 um, ensuring compatibility with standard optical setups. This meticulous design and engineering make the 1310nm SLD Laser Diode Butterfly Module a reliable and versatile component for cutting-edge optical technologies.

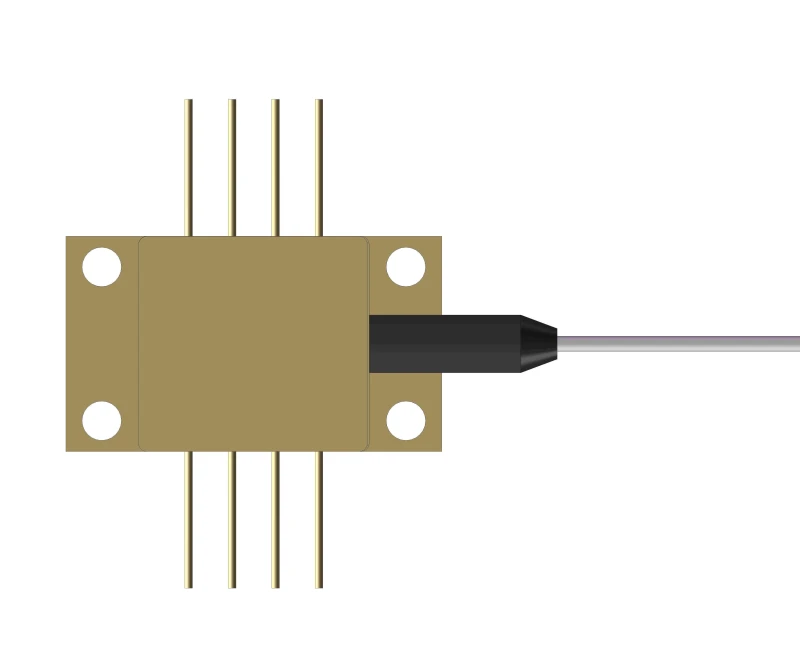

1310nm SLD Laser Diode Butterfly Module with TEC 8 Pin

Specifications

SLED Type: Fiber Coupled
Operating Power (typical): 3 mW
Center Wavelength (typical): 1310 nm
Bandwidth (FWHM): 40 nm
Center Wavelength: 1307~1313 nm
Case Operating Temperature: -40~70 ℃
Storage Temperature: -55~85 ℃
Laser Reverse Voltage: 2 V
Laser Forward Current: 150 mA
TEC Current: 1.2 A
TEC Voltage: 4 V
Central Wavelength: 1307~1313 nm
Polarization Extinction Ratio: 1.5 db
Spectral Ripple: 0.1~0.5 db
Fiber Length: 2 m
Connector: FC/APC
Jacket: ∅900 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Spontaneous Emission Light Source: Low ripple
  • Low Polarization Extinction Ratio: Ensures stable performance
  • Wide-Spectrum Light Source: Spectral width greater than 40 nm
  • High Reliability Design: Built for durability and consistent performance
  • RoHS Compliant: Environmentally friendly and safe
  • Case Operating Temperature: -40~70℃
  • 8-Pin Butterfly Package: Includes Thermoelectric Cooler (TEC)

Description: The 1310 nm SLD laser module features a low polarization extinction ratio, low ripple, and wide-spectrum. It is housed in an 8-pin butterfly package with a thermoelectric cooler (TEC) and thermistor inside.

Applications

  • Fiber Optic Gyroscope
  • Optical Coherent Tomography (OCT)
  • Optical Testing Instruments
  • Optical Fiber Communication

Frequently Asked Questions

What is the center wavelength of the 1310nm SLD Laser Diode Butterfly Module?
The center wavelength of the module is between 1307nm and 1313nm.
What are the main applications of this laser diode module?
The main applications include Fiber Optic Gyroscope, Optical Coherent Tomography (OCT), optical testing instruments, and optical fiber communication.
What is the operating temperature range for the case of the module?
The case operating temperature range is from -40℃ to 70℃.
What precautions should be taken to prevent electro-static damage to the module?
Operators should use antistatic bands and clothing, electric conductive shoes, and ensure the working environment has a humidity of 40% RH or above. Grounding mats should be used on workbench surfaces and surrounding floors.
What is the maximum laser forward current at 25℃?
The maximum laser forward current at 25℃ is 150 mA.
What type of fiber is used with this module?
The fiber type used is YOFCSMBI1012-A.
What is the spectral bandwidth of the module?
The spectral bandwidth of the module is greater than 40nm.

Got more questions? Use the inquiry form to ask the supplier directly.
