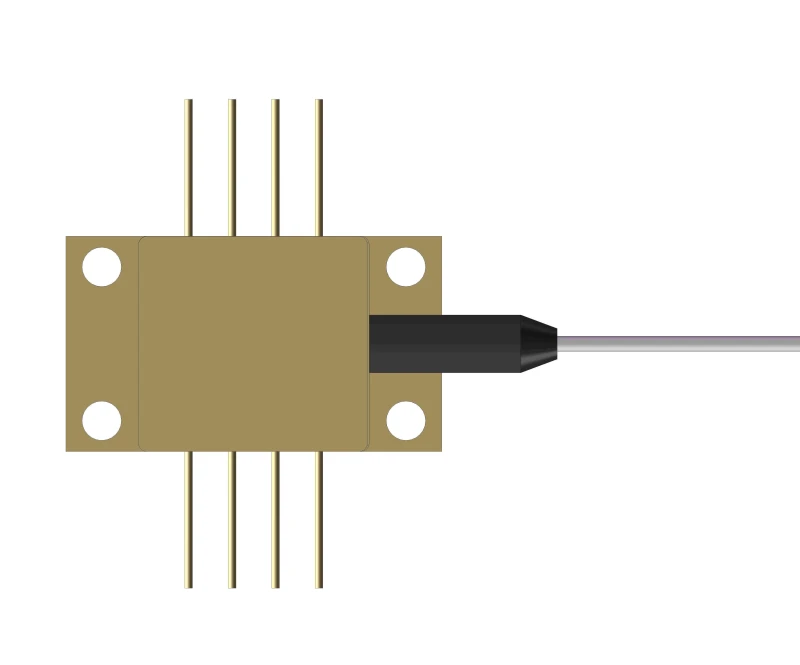

Thumbnail of 1310nm SLD Laser Diode Butterfly Module with TEC photo 1

Description

The 1310nm SLD Laser Diode Butterfly (6 PIN LP) Module is a cutting-edge optical component designed to meet the demands of modern fiber optic applications. This module is engineered with a spontaneous emission light source, ensuring low ripple and a low polarization extinction ratio. Its wide-spectrum light source boasts a spectral width greater than 40nm, making it a versatile choice for various optical systems. The module is housed in a robust 6-pin butterfly package, complete with a thermoelectric cooler (TEC) and thermistor, ensuring optimal performance across a wide range of operating conditions.

Reliability is at the core of the 1310nm SLD Laser Diode Module's design. It is built to withstand challenging environments, with a case operating temperature range from -40°C to 70°C. This makes it suitable for use in diverse settings, from laboratory environments to field applications. The module is also RoHS compliant, underscoring its commitment to environmental standards and safety regulations.

In addition to its technical prowess, the module is designed with ease of integration in mind. The fiber characteristics include a YOFCSMBI1012-A fiber type with a 2-meter length from the module case to the fiber end, and it is equipped with an FC/APC connector. The ∅900 um jacket ensures durability and ease of handling during installation and maintenance. With its advanced features and robust design, the 1310nm SLD Laser Diode Butterfly Module is an ideal choice for professionals seeking high-performance optical solutions.

1310nm SLD Laser Diode Butterfly Module with TEC

Visit the Friend Laser Photonics Co.,Ltd. Store

Specifications

SLED Type: Fiber Coupled
Operating Power (typical): 1.5 mW
Center Wavelength (typical): 1310 nm
Bandwidth (FWHM): 35 nm
Center Wavelength: 1290~1330 nm
Case Operating Temperature: -40~70 ℃
Storage Temperature: -55~85 ℃
Laser Reverse Voltage: 2 V
Laser Forward Current: 150 mA
TEC Current: 1 A
TEC Voltage: 3 V
Central Wavelength: 1290~1320 nm
Polarization Extinction Ratio: 1.5 db
Spectral Ripple: 0.1~0.5 db
Fiber Length: 2 m
Connector: FC/APC
Jacket: ∅900 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Spontaneous Emission Light Source: Low ripple
  • Low Polarization Extinction Ratio: Ensures minimal signal degradation
  • Wide-Spectrum Light Source: Spectral width greater than 40 nm
  • High Reliability Design: Built for durability and consistent performance
  • RoHS Compliant: Environmentally friendly and safe
  • 6-Pin Butterfly Package: Includes Thermoelectric Cooler (TEC)

Applications

  • Fiber Optic Gyroscope
  • Optical Coherent Tomography (OCT)
  • Optical Testing Instruments
  • Optical Fiber Communication

Frequently Asked Questions

What is the center wavelength range of the 1310nm SLD Laser Diode Butterfly Module?
The center wavelength range is 1290 to 1330 nm.
What are the main applications of this laser diode module?
The main applications include Fiber Optic Gyroscope, Optical Coherent Tomography (OCT), optical testing instruments, and optical fiber communication.
What is the operating temperature range for the case of this module?
The case operating temperature range is -40 to 70°C.
What precautions should be taken to prevent electro-static damage to the module?
Operators should use antistatic bands and clothing, electric conductive shoes, and ensure the working environment has humidity equal to or above 40% RH. Grounding mats should be used on work surfaces and floors.
What is the maximum laser forward current at 25°C?
The maximum laser forward current at 25°C is 150 mA.
What type of fiber is used with this module?
The fiber type used is YOFC SM BI 1012-A.
What is the spectral bandwidth of the laser diode module?
The spectral bandwidth is greater than 40 nm.
