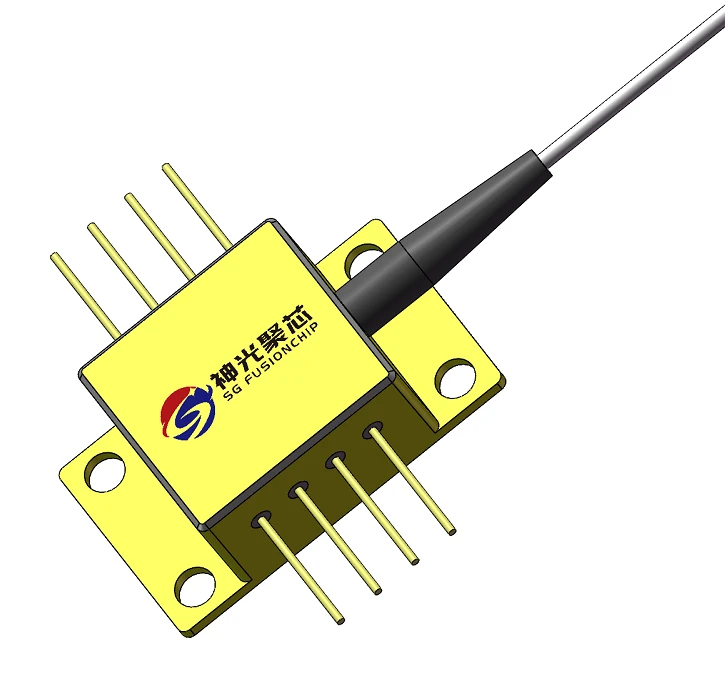

1310nm DFB/SLED Butterfly Device-SGSLD-1310-1.5-BS2-00-8
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2025
Description
Introducing the SGSLD-1310-1.5-BS2-00-8 SLED Butterfly Device, a cutting-edge solution designed to meet the demanding needs of modern optical applications. This device is engineered with precision and reliability, ensuring optimal performance in various environments. Its robust construction and advanced technology make it an ideal choice for professionals seeking high-quality optical components.
The SGSLD-1310-1.5-BS2-00-8 is housed in a metal-coupled and hermetic package, providing excellent protection and durability. The inclusion of a Thermoelectric Cooler (TEC) within the device ensures stable operation across a wide temperature range, making it suitable for diverse applications. The device is available in an 8-pin or 6-pin butterfly package, offering flexibility and compatibility with different systems.
With a fiber output power of 1.5 mW and an average wavelength range of 1290-1320 nm, this SLED Butterfly Device delivers consistent and reliable performance. The single-mode optical fiber ensures minimal signal loss and high-quality transmission, making it an excellent choice for precision optical systems. The device is designed to operate efficiently within a temperature range of -45°C to 70°C, with a storage temperature range of -55°C to 85°C, ensuring reliability in various conditions.
The SGSLD-1310-1.5-BS2-00-8 is a versatile and reliable component for professionals in the optical industry. Its advanced features and robust design make it a valuable addition to any optical system, providing the performance and reliability that modern applications demand.
1310nm DFB/SLED Butterfly Device-SGSLD-1310-1.5-BS2-00-8
Specifications |
|
|---|---|
| SLED Type: | Fiber Coupled |
| Operating Power (typical): | 1.5 mW |
| Center Wavelength (typical): | 1310 nm |
| Bandwidth (FWHM): | 35 nm |
| Fiber Output Power: | 1.5 mW |
| Average Wavelength: | 1290-1320 nm |
| 3dB Spectral Width: | ≥35 nm |
| Ripple: | dB ≤0.2 |
| Extinction Ratio: | dB ≤1.0 |
| Optical Fiber Type: | Single Mode CS1011B |
| Shell Type: | 8 Pin |
| TEC Current TEC: | A ≤1.5 |
| Power Variation @ Operating Temperature 2*(Pmax-Pmin)/(Pmax+Pmin): | <6 % |
Features
- High power output
- Metal-coupled and hermetic package
- TEC inside
- Polarization-maintaining or single-mode optical fiber
- 8pin/6pin Butterfly package
Applications
- Fiber-optic gyroscope
- Optic test
- Optical fiber transmission system
- Fiber-optic sensor
- OCT
Frequently Asked Questions
The SLEDButterflyDevice, model SGSLD-1310-1.5-BS2-00-8, is a high-power output device with a metal-coupled and hermetic package, featuring a TEC inside and available with polarization-maintaining or single-mode optical fiber.
The main applications include fiber-optic gyroscope, optic test, optical fiber transmission system, fiber-optic sensor, and OCT.
The fiber output power of the device is 1.5 mW.
The average wavelength range is between 1290 nm and 1320 nm.
The working temperature range is from -45°C to 70°C.
The device uses a Single Mode CS1011B optical fiber.
The laser module is ESD-sensitive, so proper ESD handling procedures should be followed to prevent damage.
