Description

The 1290nm SLD Laser Diode Butterfly (8 PIN LP) Module is a sophisticated optical component designed to deliver exceptional performance in a variety of demanding applications. This module is characterized by its low polarization extinction ratio and low ripple, ensuring high-quality output with minimal interference. The wide-spectrum light source, with a spectral width greater than 40nm, provides a robust and reliable solution for advanced optical systems.

Encased in an 8-pin butterfly package, the module includes a thermoelectric cooler (TEC) and a thermistor, which work together to maintain optimal operating conditions. This design ensures high reliability and consistent performance across a broad temperature range, from -40°C to 70°C. The module's compliance with RoHS standards underscores its commitment to environmental responsibility and safety.

With a central wavelength range of 1280 to 1300nm, the 1290nm SLD Laser Diode Module is engineered for precision and efficiency. Its optical and electrical characteristics are finely tuned to meet the rigorous demands of modern optical systems, making it an ideal choice for applications such as fiber optic gyroscopes, optical coherent tomography (OCT), and optical testing instruments. The module's robust design and high-quality output make it a valuable asset in the field of optical fiber communication.

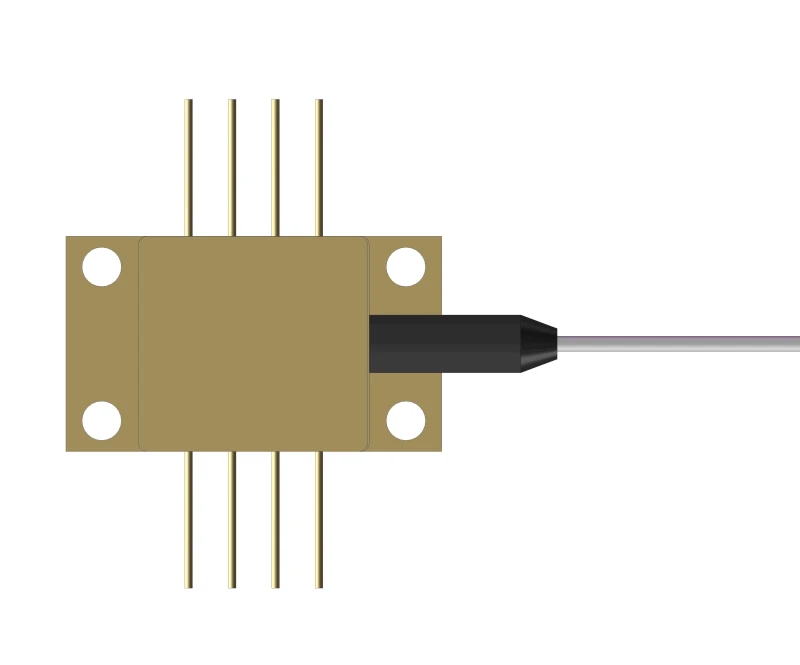

1290nm SLD Laser Diode Butterfly Module with TEC (8 pin)

Specifications

SLED Type: Fiber Coupled
Operating Power (typical): 3 mW
Center Wavelength (typical): 1290 nm
Bandwidth (FWHM): 40 nm
Center Wavelength: 1280~1300 nm
Case Operating Temperature: -40~70 ℃
Storage Temperature: -55~85 ℃
Laser Reverse Voltage: 2 V
Laser Forward Current: 150 mA
TEC Current: 1.2 A
TEC Voltage: 4 V
Polarization Extinction Ratio: 1.5 db
Spectral Ripple: 0.1~0.5 db
Fiber Length: 2 m
Jacket: ∅900 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Center Wavelength: 1280~1300 nm
  • Spontaneous Emission Light Source: Low ripple
  • Low Polarization Extinction Ratio: Ensures stable performance
  • Wide-Spectrum Light Source: Spectral width greater than 40 nm
  • High Reliability Design: Built for durability and consistent performance
  • RoHS Compliant: Environmentally friendly and safe
  • Case Operating Temperature: -40~70℃
  • 8-Pin Butterfly Package: Includes Thermoelectric Cooler (TEC)

Applications

  • Fiber Optic Gyroscope
  • Optical Coherent Tomography (OCT)
  • Optical Testing Instruments
  • Optical Fiber Communication

Frequently Asked Questions

What is the center wavelength of the 1290nm SLD Laser Diode Butterfly Module?
The center wavelength of the module is between 1280nm and 1300nm.
What applications is the 1290nm SLD Laser Diode Butterfly Module suitable for?
The module is suitable for applications such as Fiber Optic Gyroscope, Optical Coherent Tomography (OCT), optical testing instruments, and optical fiber communication.
What is the operating temperature range for the 1290nm SLD Laser Diode Butterfly Module?
The case operating temperature range is from -40℃ to 70℃.
What precautions should be taken to prevent electro-static damage to the module?
Operators should use antistatic bands and clothing, electric conductive shoes, and ensure the working environment has a humidity of 40% RH or above. Grounding mats should be used on workbenches and floors, and care should be taken with electrically charged parts.
What is the maximum laser forward current for the module at 25℃?
The maximum laser forward current at 25℃ is 150 mA.
What type of fiber is used with the 1290nm SLD Laser Diode Butterfly Module?
The module uses YOFCSMBI1012-A fiber type.
What is the spectral bandwidth of the module?
The spectral bandwidth of the module is greater than 40nm.
