Description
These high-intensity SMD modules can be custom designed for an array of configurations and applications. Linear and 2-dimensional arrays are available at 265, 285, and 300 nm. Each module offers multiple watt outputs, with intensity exceeding 100 mW per sq cm. Custom configurations adjusting wavelengths and power levels are available upon request.

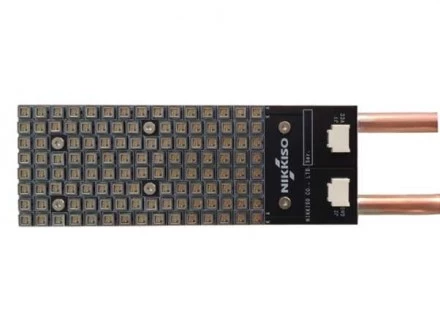

DUV-LED 8x15 High Irradiance Array
Specifications
| Array Geometry: | Rectangle |
|---|---|
| Number Of LEDs: | 120 |
| Size Of Light Source (horizontal): | 67 mm |
| Size Of Light Source (Vertical): | 30 mm |
| Irradiance: | 80 mW/cm^2 |
| Wavelength: | 285 nm |
| Driving Current (Typ.): | 3.0 A |
Download Data Sheet
Features
- High Irradiance 80 mW/cm2 (285 nm, WD=10 mm)
- High density assembled 120 pieces LEDs (8x15)
- Integrated water cooling jacket
- Combinable design
Applications
- Disinfection
- Curing
- Surface modification
Frequently Asked Questions
What is the DUV-LED 8x15 High Irradiance Array used for?
The DUV-LED 8x15 High Irradiance Array can be used for disinfection, curing, and surface modification.
What is the irradiance of the DUV-LED 8x15 High Irradiance Array?
The DUV-LED 8x15 High Irradiance Array has a high irradiance of 80 mW/cm2 (285 nm, WD=10 mm).
Can the DUV-LED 8x15 High Irradiance Array be customized?
Yes, custom configurations adjusting wavelengths and power levels are available upon request.
What is the driving current and voltage for the DUV-LED 8x15 High Irradiance Array?
The typical driving current is 3.0 A (200 mA/String) and the typical driving voltage is 48 V.
What wavelengths are available for the DUV-LED 8x15 High Irradiance Array?
The DUV-LED 8x15 High Irradiance Array is available at 265, 285, and 300 nm.
