Description
These high-intensity SMD modules can be custom designed for an array of configurations and applications. Linear and 2-dimensional arrays are available at 265, 285, and 300 nm. Each module offers multiple watt outputs, with intensity exceeding 100 mW per sq cm. Custom configurations adjusting wavelengths and power levels are available upon request.

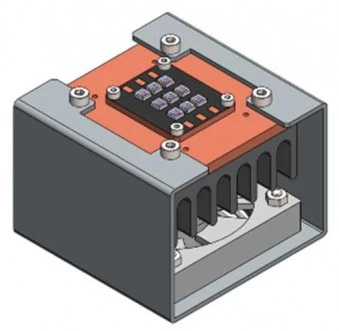

DUV-LED 3x3 Array With Cooling Fan
Specifications
| Array Geometry: | Square |
|---|---|
| Number Of LEDs: | 9 |
| Size Of Light Source (horizontal): | 12 mm |
| Size Of Light Source (Vertical): | 16 mm |
| Irradiance: | 45 mW/cm^2 |
| Wavelength: | 285 nm |
Download Data Sheet
Features
- Irradiance 45 mW/cm2 (285 nm, WD=10 mm)
- 9 pieces LEDs (3x3)
- Integrated air cooling fan
Applications
- Disinfection
- Curing
- Surface modification
Frequently Asked Questions
What is the DUV-LED 3x3 Array With Cooling Fan?
The DUV-LED 3x3 Array With Cooling Fan is a high-intensity SMD module that can be custom designed for an array of configurations and applications.
What are the applications of the DUV-LED 3x3 Array With Cooling Fan?
The applications of the DUV-LED 3x3 Array With Cooling Fan include disinfection, curing, and surface modification.
Is it possible to get custom configurations for the DUV-LED 3x3 Array With Cooling Fan?
Yes, custom configurations adjusting wavelengths and power levels are available upon request.
What wavelengths are available for the DUV-LED 3x3 Array With Cooling Fan?
Linear and 2-dimensional arrays are available at 265, 285, and 300 nm.
What is the irradiance of the DUV-LED 3x3 Array With Cooling Fan?
The irradiance is 45 mW/cm2 (285 nm, WD=10 mm).
