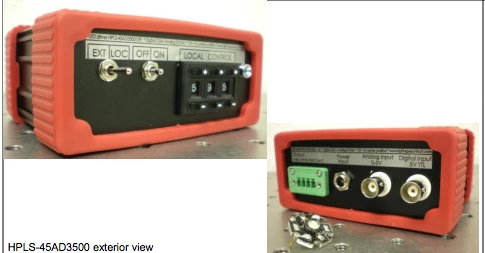

HPLS-45AD3500-DIP High Power LED Light Sources
Description
The HPLS-45 series of high power LED light sources are designed as flexible system of interchangeable components for applications where it is hard to standardize the requirements for mass-production. Building a system comes down to (1) selection of appropriate base with specific functionality and type of control; (2) selection of LED head[s] and (3) focusing optics specific for the application. Functionality of base units include fast analog control (to generate any optical function, sine, saw, square, CW…); low-noise CW control (for applications where ATC-like or PWM algorithms may cause problem); and fast pulsed (digital) control (faster and more powerful then analog). Selection of the way the optical power is set include external digital/analog signal supplied thru connector (BNC/Twin BNC), or, for CW application, Built-In Potentiometer). LED heads are currently available in LEDH-xxx series with 0.8” pin spacing for higher performance and wider selection of focusing optics. Many other models of LEDs can be adapted. The function of focusing optics is to direct the light to the certain spot size on certain distance as required and often custom designed for specific application. Most of new optics is backward-compatible (fits the units previously shipped).
HPLS-45AD3500-DIP High Power LED Light Sources
Specifications |
|
|---|---|
| LED Color Category: | Ultraviolet (UV), Visible, Infrared (IR) |
| Wavelength: | 455 nm |
| Output Power (typical): | -- mW |
| Operation Mode: | Continuous Wave (CW) |
Features
Plug-and-play frame for LEDs
Interchangeable LED heads provided
455nm, 475nm, 505nm, 530nm, 590nm, 617nm, 630nm, white 5500 K, white 3300 K, UV and IR options
Selection of collimating optics/ attachments • Selection of base units
Fast analog control (some models)
Low-noise CW control (some models)
Fast pulsed (digital) control (some models)
Narrow bandwidth or broadband
Wide field or focused output
Continuous, waveforms, or pulses to <150ns
Up to 400mW CW, x5 intensity short pulse
Accepts LEDs with 0.2”, 0.4”, 0.6”, 0.8”, 1”, 1.2” pin spacing
Applications
Fluorescence excitation
High-speed imaging
UV Curing
Synchronous detection
Machine vision
Biomedical optics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim Lightspeed Technologies Inc Page to edit and add data
Frequently Asked Questions
The HPLS-45 series offers LED heads in the LEDH-xxx series with 0.8" pin spacing for higher performance and a wider selection of focusing optics.
Yes, the HPLS-45 series accepts LEDs with pin spacing options of 0.2", 0.4", 0.6", 0.8", 1", and 1.2".
The HPLS-45 series offers fast analog control, low-noise CW control, and fast pulsed (digital) control options, depending on the model.
Yes, the focusing optics are often custom designed to direct the light to a certain spot size at a specific distance as required for the application.
Yes, most of the new optics are backward-compatible and can fit the units that were previously shipped.
