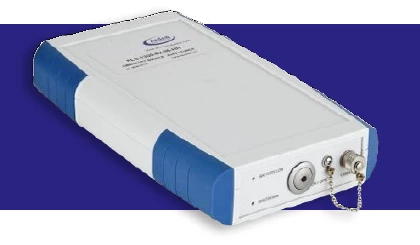

ALS Handheld LED Light Source for Multimode Fiber

Name: ALS Handheld LED Light Source for Multimode Fiber
Brand: Arden Photonics Ltd
Availability: InStock

Description

The ALS LED Light Source by Arden Photonics is a compact, handheld device designed to provide precise and stable launch conditions for multimode fiber measurements. This light source is an essential tool for professionals in the aerospace industry, where it is widely used by companies like Airbus for the certification of optical fiber harnesses. With its 85/85% Limited Phase Space modal launch conditions, the ALS ensures accurate and reliable measurements, making it a staple in insertion loss testing for aerospace applications.

Constructed with user convenience in mind, the ALS LED Light Source is equipped with a rechargeable Li-Ion battery that offers an impressive 48-hour life, ensuring long-lasting performance for extended testing sessions. The device is available with either a 1300nm or 850nm LED, catering to different fiber types such as 62.5/125 µm or 50/125 µm. Its robust design includes an FC connector interface, which facilitates seamless connectivity and operation.

Arden Photonics offers a comprehensive insertion loss test kit that includes the ALS LED Light Source, a battery charger, a power meter, and all necessary leads, patchcords, and couplers. This complete solution is designed to meet the rigorous demands of fiber optic testing, providing users with everything they need to conduct accurate and efficient measurements. The ALS LED Light Source stands out as a reliable and effective tool for professionals seeking precision and ease of use in their optical fiber testing endeavors.

Specifications

LED Color Category:	Infrared (IR)
Wavelength:	850 nm
Operation Mode:	Continuous Wave (CW), Modulated
Source Type:	LED
Centre Wavelength:	1300nm
Spectral Width:	155nm (FWHM)
Dimensions:	200 x 120 x 35mm
Weight:	0.5kg
Optical Power Output:	-20dBm into 62.5/125 µm fiber
Optical Power Stability:	± 0.05 dB over 1 hour
Optical Launch Condition:	85/85% Limited Phase Space
Connector Interface:	FC
Power:	Built-in Li-Ion battery (External charger supplied)
Battery Life:	48 hours continuous
Case:	ABS
Operating Temperature:	0° to +50°C
Storage Temperature:	-10° to +60°C

Download Data Sheet

Features

Compact Handheld Design: The ALS LED Light Source is designed for portability and ease of use, making it ideal for field testing.

85/85% Launch Condition: Provides stable 85/85% limited phase space modal launch conditions, essential for accurate multimode fiber measurements in aerospace applications.

Versatile Wavelength Options: Available in 1300nm or 850nm LED options, suitable for various testing requirements.

Fiber Compatibility: Designed for use with 62.5/125 µm or 50/125 µm multimode fibers, ensuring broad application compatibility.

Long Battery Life: Equipped with a rechargeable Li-Ion battery, offering up to 48 hours of continuous operation for extended testing sessions.

Excellent Stability: Ensures optical power stability of ± 0.05 dB over 1 hour, providing reliable and consistent measurements.

Durable Construction: Housed in a robust ABS case, the ALS LED Light Source is built to withstand the demands of field use.

Comprehensive Test Kit: Available with a full insertion loss test kit, including an ALS LED light source, battery charger, power meter, and necessary leads/patchcords/couplers.

Temperature Resilience: Operates effectively in temperatures ranging from 0° to +50°C, with storage capabilities from -10° to +60°C.

Industry Standard Connector: Features an FC connector interface, ensuring compatibility with standard optical testing equipment.

Applications

Compact Handheld Light Source: The ALS LED Light Source is designed to be portable and easy to use, making it ideal for field applications.

Insertion Loss Testing for Aerospace Applications: Specifically used in the aerospace industry, the ALS light source is widely adopted by Airbus for the certification of optical fiber harnesses.

Stable 85/85% Launch Conditions: Provides consistent launch conditions for multimode fiber measurements, ensuring accurate results.

LED Options: Available with 1300nm or 850nm LED for different fiber types (62.5/125 µm or 50/125 µm).

Long Battery Life: Equipped with a rechargeable Li-Ion battery providing up to 48 hours of continuous operation.

Ease of Use: The ALS light source is designed for simplicity and stability, making it user-friendly for various testing scenarios.

Comprehensive Insertion Loss Test Kit: Arden Photonics offers a full test kit including the ALS LED light source, battery charger, power meter, and necessary leads/patchcords/couplers.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United Kingdom

Sold by:

Arden Photonics Ltd

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the ALS handheld optical fiber source used for?

The ALS handheld optical fiber source is used with an Optical Power Meter to measure the loss of multimode optical fiber systems, in applications which require 85/85% Limited Phase Space modal launch conditions.

What is the 85/85% modal launch condition used for?

The 85/85% modal launch condition is used specifically in the aerospace industry, and it’s widely used by Airbus for certification of its optical fiber harnesses.

What type of fibers is the ALS LED Light Source compatible with?

The ALS LED Light Source is compatible with 62.5/125 μm or 50/125 μm fiber.

What type of battery does the ALS LED Light Source have?

The ALS LED Light Source has a rechargeable Li-Ion battery with 48hr life.

What is included in the insertion loss test kit?

The insertion loss test kit comes with an ALS - LED light source; a battery charger; a power meter and all the power meter leads/patchcords/ couplers required.
