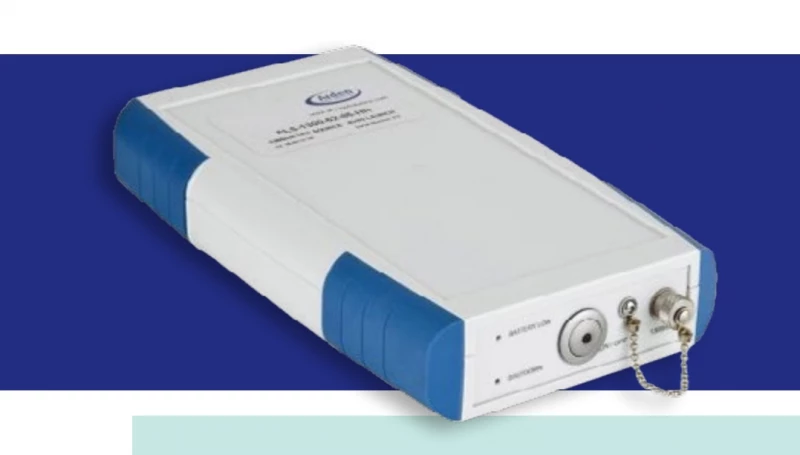

ALS Handheld LED Light Source for Aerospace Testing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The ALS LED Light Source is a cutting-edge, compact handheld device designed specifically for professionals in the aerospace industry. Engineered by Arden Photonics Ltd, this light source facilitates precise insertion loss testing of multimode optical fiber systems. Its primary feature is the ability to provide stable 85/85% launch conditions, which are essential for accurate multimode fiber measurements. This makes the ALS an indispensable tool for those requiring high precision and reliability in their optical testing processes. Designed for Aerospace Excellence The 85/85% modal launch condition offered by the ALS LED Light Source is a critical requirement in the aerospace sector. This specific launch condition is widely recognized and employed by leading aerospace manufacturers, such as Airbus, for the certification of optical fiber harnesses. The ALS ensures that users can achieve consistent and repeatable results, thereby meeting the stringent standards set by the industry. Its robust design and ease of use make it a preferred choice for professionals who demand the highest quality in their fiber optic testing equipment. Unmatched Performance and Convenience Equipped with either a 1300nm or 850nm LED, the ALS LED Light Source is compatible with both 62.5/125 µm and 50/125 µm fibers. Its built-in rechargeable Li-Ion battery offers an impressive 48-hour continuous life, ensuring that users can rely on the device for extended testing periods without frequent recharging. The compact dimensions and lightweight design enhance portability, making it an ideal tool for fieldwork. With its excellent optical power stability and durable ABS casing, the ALS LED Light Source is engineered to withstand the demands of rigorous testing environments while delivering precise and reliable performance.
ALS Handheld LED Light Source for Aerospace Testing
Specifications |
|
|---|---|
| LED Color Category: | Infrared (IR) |
| Wavelength: | 1300 nm |
| Operation Mode: | Continuous Wave (CW), Modulated |
| Source Type: | LED |
| Spectral Width: | <170 nm |
| Weight: | 0.5 kg |
| Optical Power Output: | -20 dBm |
| Optical Launch Condition: | 85/85 % |
| Connector Interface: | FC |
| Battery Life: | 48 hours |
| Operating Temperature: | +5 +45 °C |
| Storage Temperature: | -10 +60 °C |
| Humidity: | 5 - 95 % |
Features
- Compact Handheld Design: The ALS LED Light Source is designed for portability and ease of use, making it ideal for field applications.
- 85/85% Launch Condition: Provides stable 85/85% limited phase space modal launch conditions for accurate multimode fiber measurements.
- Optimized for Aerospace Applications: Specifically used in the aerospace industry, including by Airbus for optical fiber harness certification.
- Dual Wavelength Options: Available in 1300nm and 850nm LED options to suit different fiber types and testing requirements.
- Compatible with Multiple Fiber Types: Suitable for both 62.5/125 µm and 50/125 µm multimode fibers.
- Long Battery Life: Equipped with a rechargeable Li-Ion battery providing up to 48 hours of continuous operation.
- Stable Optical Output: Optical power stability of ± 0.05 dB over 1 hour ensures reliable and consistent measurements.
- Robust and Durable: Constructed with an ABS case for durability in various operating environments.
- Wide Operating Temperature Range: Functions effectively in temperatures ranging from 0° to +50°C.
- Complete Insertion Loss Test Kit Available: Arden Photonics offers a full test kit including the ALS LED light source, power meter, charger, and necessary leads and couplers.
Applications
- Compact Handheld Light Source: Ideal for portable use and easy handling.
- Insertion Loss Testing for Aerospace Applications: Specifically designed to meet the rigorous demands of the aerospace industry.
- Stable 85/85% Launch Conditions: Provides consistent and reliable measurements for multimode fiber.
- Wavelength Options: Available in 1300nm or 850nm LED configurations.
- Fiber Compatibility: Suitable for 62.5/125 µm or 50/125 µm fiber types.
- Long Battery Life: Rechargeable Li-Ion battery with up to 48 hours of continuous use.
- Ease of Use: Designed for use with an Optical Power Meter to measure fiber system loss.
- Aerospace Certification: Widely used by Airbus for optical fiber harness certification.
Frequently Asked Questions
It is used with an Optical Power Meter to measure the loss of multimode optical fiber systems, in applications which require 85/85% Limited Phase Space modal launch conditions.
It is used specifically in the aerospace industry, and it’s widely used by Airbus for certification of its optical fiber harnesses.
It is compatible with 62.5/125 μm or 50/125 μm fiber.
The battery life is 48 hours.
Yes, Arden can provide a full insertion loss test kit which comes with an ALS - LED light source; a battery charger; a power meter and all the power meter leads/patchcords/ couplers required.
