Integrate LED Module

Name: Integrate LED Module
Brand: YIXIST YIXI Technology Co., Ltd
Availability: InStock

Description

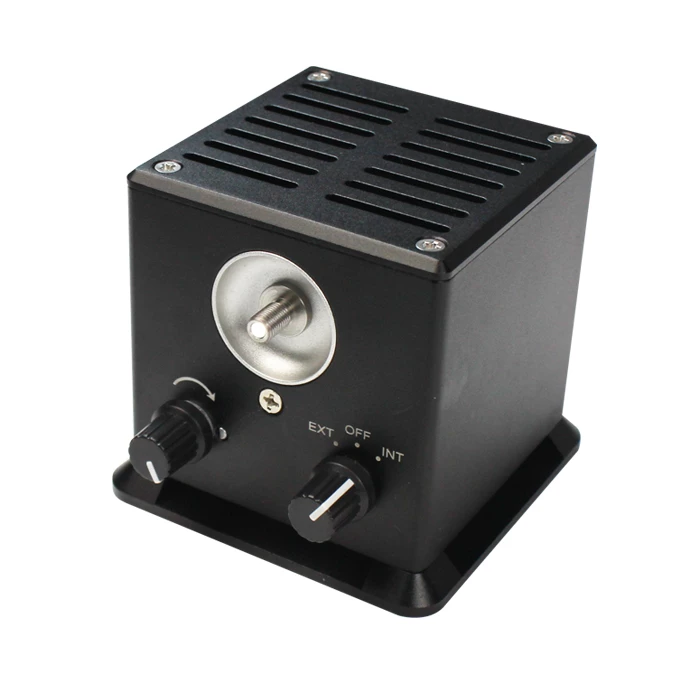

The YLS-8303-02 series offers a versatile and reliable LED light source solution, ideal for both research and industrial applications. Designed to cater to a wide range of needs, this series provides both internal and external modes of operation. The internal mode allows for seamless adjustment of light intensity via a convenient knob located on the panel, while the external mode offers control through a DB9 connection, ensuring flexibility and ease of use.

Featuring a built-in power supply and a high-quality LED chip with an advanced heat dissipation module, the YLS-8303-02 series promises a typical lamp life of over 2000 hours. Its compact size facilitates easy integration into various systems, making it a practical choice for fluorescence detection, high-resolution optics, medicine, photolytic reactions, UV curing, and specialized lighting applications.

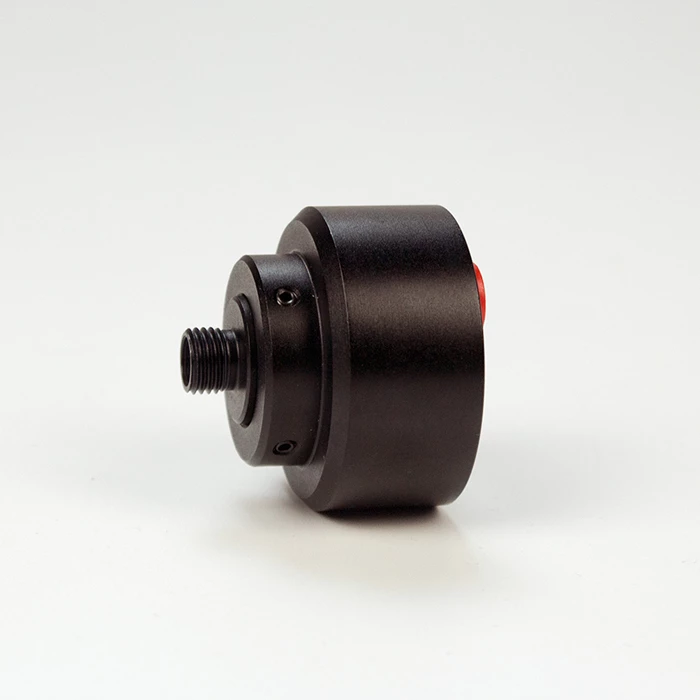

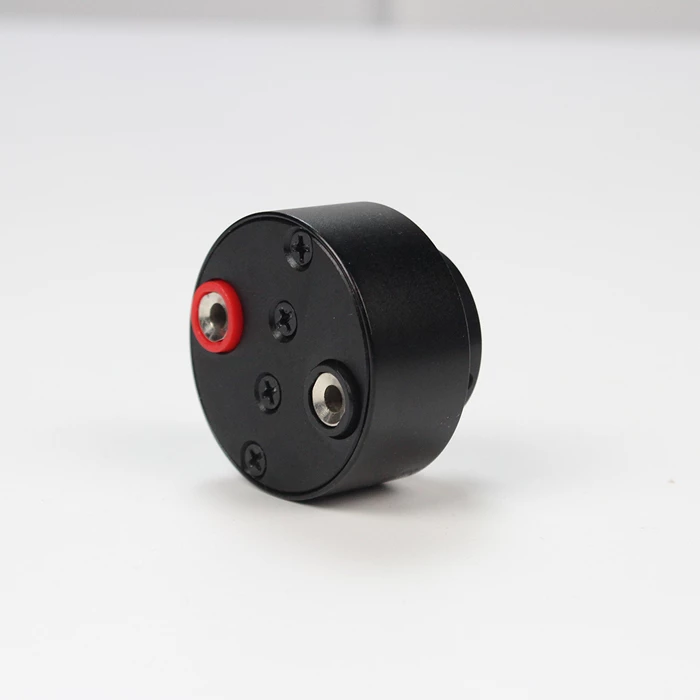

The YLS-8303-01 series LED modules are engineered for stability and longevity, boasting a typical usage life of over 100,000 hours. These modules are designed to accept an adjustable constant-source power supply, ensuring a stable and customizable output. With options ranging from 255 nm to 430 nm, and the possibility for wavelength customization, these modules are adaptable to a variety of needs.

In addition to their impressive performance, the YLS-8303-01 series modules are compact and produce minimal heat, making them easy to integrate into existing systems. YIXIST also offers a range of accessories to complement these modules, including an adjustable constant current source, a four-channel cuvette holder, and a miniature diffuse reflection probe, enhancing their functionality for transmissivity, reflectivity, and absorbance measurements.

Specifications

LED Color Category:	Ultraviolet (UV), Visible
Wavelength:	255 nm
Operation Mode:	Continuous Wave (CW)
Model:	YLS-8303-01/02
Wavelength:	255-590 nm
FWHM:	15, 20, 40 nm
Max Current:	30, 40, 100, 700, 1000 mA
Power:	3 W
Flux:	30-80 lm
Optical Power:	10-15, 3-4, 200-600 mW
Lamp Power:	0.2, 0.3, 0.6, 3 W
Dimension:	86 x 86 x 81.5, Φ43×46 mm

Download Data Sheet

Features

Continuously Adjustable LED Light Source: The YLS-8303-02 series offers a versatile LED light source suitable for both research and industrial applications.

Multiple Wavelength Options: Available in 455nm, 525nm, 620nm, 590nm, 3000K CCT, and 6500K CCT to meet diverse lighting needs.

High-Resolution Optics: Ideal for fluorescence detection, photolytic reactions, UV curing, and special lighting applications.

Flexible Control Modes: Internal mode allows continuous light intensity adjustment via a panel knob, while external mode enables control through a DB9 connector.

Built-in Power Supply: Ensures stable and reliable operation.

High-Quality LED Chip: Features a heat dissipation module for enhanced performance and longevity.

Long Lamp Life: Offers a typical lamp life of over 2000 hours.

Compact and Easy to Integrate: Designed for seamless integration with a compact size of 86 x 86 x 81.5 mm.

SMA905 Fiber Connector: Facilitates easy connectivity.

Model Variants: Includes YLS-8303-02-455, YLS-8303-02-525, YLS-8303-02-620, YLS-8303-02-Orange Yellow, YLS-8303-02-Warm Yellow, and YLS-8303-02-Cool White.

Stable and Adjustable Output: The YLS-8303-01 series LED modules feature adjustable constant-source power supply for stable performance.

Extended Usage Life: Provides a typical usage life of over 100,000 hours.

Low Heat Production: Ensures efficient operation with minimal heat generation.

Customizable Wavelengths: Offers standard options from 255nm to 430nm, with customization available.

Comprehensive Accessories: Includes adjustable constant current source, four-channel cuvette holder, and miniature diffuse reflection probe.

Reference Light Source: Suitable for transmissivity, reflectivity, and absorbance measurement applications.

Applications

Fluorescence Detection: High-precision emission measurements for liquids, solids, or powders.

Photolytic Reactions: Controlled UV exposure for chemical and material studies.

UV Curing: Reliable LED light source for polymerization and coating processes.

High-Resolution Optics: Laboratory testing of optical components and filters.

Reference Light Source: For absorbance, reflectivity, and transmissivity measurements.

Scientific Research & Industrial Integration: Compatible with automated systems and secondary development projects.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

YIXIST YIXI Technology Co., Ltd

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the available wavelength options for the YLS-8303-01 series LED modules?

The YLS-8303-01 series LED modules offer wavelength options of 255/275/310/365/380/400/415/430 nm.

Can the wavelength of the YLS-8303-01 series LED modules be customized?

Yes, the YLS-8303-01 series LED modules can accept wavelength customization.

What is the typical usage life of the YLS-8303-01 series LED modules?

The YLS-8303-01 series LED modules have a typical usage life of over 100,000 hours.

What accessories are available for the YLS-8303-01 series LED modules?

The YLS-8303-01 series LED modules have multiple accessories available, including an adjustable constant-source power supply, a four-channel cuvette holder, and a diffuse reflection probe.

What are the applications of the YLS-8303-02 series LED light sources?

The YLS-8303-02 series LED light sources are suitable for fluorescence detection, high-resolution optics, medicine, photolytic reaction, UV curing, and special lighting.
