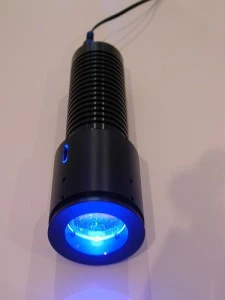

HPLS-36AD3500 Single Emitter With Built in Driver
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
The DRAGON series High Power LED Light Sources, specifically the HPLS-36ADxx/DDxx/APxx/A models, represent a pinnacle of innovation in LED technology. These high-power LED light sources are meticulously designed to offer a flexible system of interchangeable components, making them ideal for applications where standardization is challenging. Whether you are in need of a specific wavelength or a particular optical output, the DRAGON series provides a customizable solution that can be tailored to meet diverse requirements.
At the core of the HPLS-36 series is a modular design that allows for the selection of appropriate base units with specific functionalities and types of control. This modularity ensures that users can build a system that precisely fits their needs. The base units offer fast analog control for generating various optical functions, low-noise continuous wave (CW) control for sensitive applications, and fast pulsed digital control for high-speed operations. This versatility is complemented by the ability to set optical power through external digital or analog signals, or via built-in or remote potentiometers for CW applications.
The LED heads in the DRAGON series are available in two form factors: the LEDHR-xxx series, which features pre-collimated heads with built-in reflectors for close-range illumination, and the LEDH-xxx series, which offers higher performance with a wider selection of focusing optics. This adaptability ensures that the light sources can be configured for a wide range of applications, with many other LED models available for adaptation.
The focusing optics are designed to direct light to specific spot sizes and distances, often custom-designed for particular applications, and are backward-compatible with previously shipped units. Lightspeed Technologies is committed to providing cutting-edge solutions that operate at the speed of light. With the DRAGON series, users can expect a seamless integration of technology and functionality, ensuring that their lighting needs are met with precision and efficiency.
HPLS-36AD3500 Single Emitter With Built in Driver
Specifications |
|
|---|---|
| LED Color Category: | Ultraviolet (UV), Visible, Infrared (IR) |
| Wavelength: | 455 nm |
| Output Power (typical): | 400 mW |
| Operation Mode: | Continuous Wave (CW) |
Features
- Plug-and-Play Frame for LEDs: Easily integrate and replace LED components with minimal setup.
- Interchangeable LED Heads: Customize your lighting solution with a variety of LED heads to suit different applications.
- Wide Range of Wavelengths: Available in 455nm, 475nm, 505nm, 530nm, 590nm, 617nm, 630nm, as well as white 5500 K and white 3300 K options.
- Selection of Collimating Optics/Attachments: Choose from a variety of optics to focus or spread the light as needed for your specific application.
- Versatile Base Units: Select from different base units to match your control and functionality needs.
- Fast Analog Control: Generate any optical function such as sine, saw, square, or continuous wave (CW) with precision.
- Low-Noise CW Control: Ideal for applications where ATC-like or PWM algorithms may cause issues.
- Fast Pulsed (Digital) Control: Offers faster and more powerful performance compared to analog control.
- Narrow Bandwidth or Broadband Options: Tailor the light output to your specific requirements.
- Wide Field or Focused Output: Achieve the desired light distribution for your application.
- Flexible Light Output: Operate in continuous mode, waveform mode, or pulses to less than 150ns.
- High Power Output: Deliver up to 400mW CW, with up to 5x intensity in short pulse mode.
- Customizable System Configuration: Build a system by selecting the appropriate base, LED heads, and focusing optics for your application.
- Backward-Compatible Optics: New optics are compatible with previously shipped units, ensuring long-term usability.
Applications
- Biomedical Imaging: Ideal for applications requiring precise and controlled lighting conditions for imaging biological samples.
- Machine Vision: Provides consistent and reliable illumination for industrial inspection and automation systems.
- Fluorescence Microscopy: Suitable for exciting specific fluorophores with its narrow bandwidth LED options.
- Optogenetics: Enables precise control of light for manipulating biological processes in research settings.
- Phototherapy: Offers specific wavelengths for therapeutic applications, such as skin treatments.
- Scientific Research: Supports a wide range of experimental setups with its customizable LED heads and optics.
- Display and Projection: Provides high-intensity light sources for display technologies and projection systems.
- General Illumination: Versatile for use in various lighting applications requiring high power and efficiency.
Frequently Asked Questions
The HPLS-36 series offers interchangeable LED wavelengths, including UV, VIS, and IR.
Yes, the base units of the HPLS-36 series have fast analog control capabilities, allowing you to generate various optical functions.
The HPLS-36 series can be easily synchronized with cameras or other instruments for seamless integration.
The HPLS-36 series can provide up to 400mW of continuous power output.
Yes, the focusing optics of the HPLS-36 series can be custom designed to direct the light to a specific spot size and distance as required.
