Description
Plug and play, TECless, WiDy SWIR cameras are delivered calibrated with proprietary software and cable in a shockproof case.

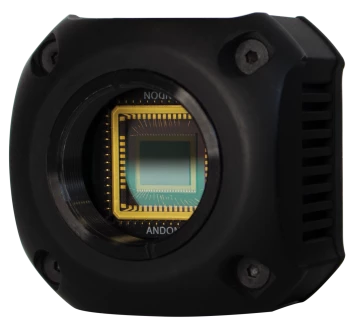

WiDy SWIR 640 Camera
Specifications
| Camera Type: | Industrial, Scientific, Security, Military |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 512 |
| # Pixels (Width): | 640 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Uncooled |
| Dynamic Range: | 120dB |
| TEC: | No |
| Frame Rate: | Up to 200Hz |
Download Data Sheet
Features
- VGA 640×512, Pitch : 15µm
- InGaAs Logarithmic Response, Snapshot mode
- Compact and low power consumption camera
- Dynamic range 120dB typical
- Up to 100Hz
- USB3.0, CameraLink, GigE and Analog
Applications
- Semiconductor & wafer inspection
- Thermography
- Surveillance & security
- Machine vision
Frequently Asked Questions
What is the WiDy SWIR 640 Camera?
The WiDy SWIR 640 Camera is a plug and play, TECless camera that operates in the shortwave infrared (SWIR) spectrum.
What does "TECless" mean?
TECless means that the camera does not require a thermoelectric cooler for operation.
What is the dynamic range of the camera?
The camera has a dynamic range of 120dB, which is typical for this model.
What are the available interfaces for the camera?
The camera supports USB3.0, CameraLink, GigE, and Analog interfaces.
What are some applications for the WiDy SWIR 640 Camera?
The camera can be used in semiconductor and wafer inspection, thermography, surveillance and security, and machine vision applications.
