Description
High-end SWIR camera series with unique dual-mode InGaAs sensor (Linear & Logarithmic): easy-to-use, best trade-off on market between High sensitivity (linear response) & High Dynamic Range (Logarithmic response), fastest gating capability, available with USB3.0, CameraLink, GigE, and Analog.

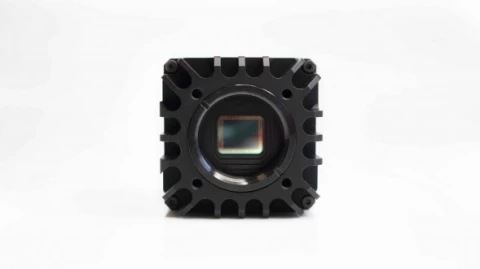

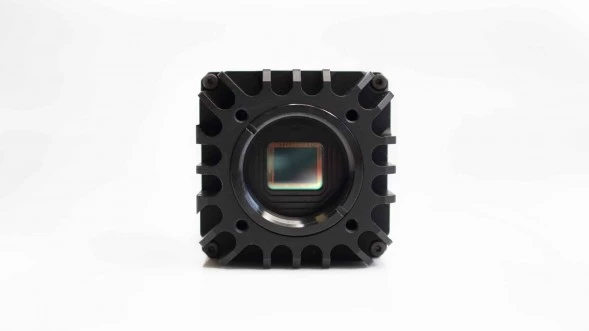

WiDy SenS 640 Camera
Specifications
| Camera Type: | Industrial, Scientific, Security, Military, Other |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Uncooled |
| Dynamic Range: | 120dB |
| Readout Noise: | <50e- |
| Frame Rate: | Up to 230Hz |
| Gated Mode: | Yes (Optional) |
| Dark Current: | 50ke- @+15°C |
| TRIGGER: | IN/OUT mode (LVTTL) |
| Exposure Time: | 10µs to 220ms |
| TEC: | TEC1 |
Download Data Sheet
Features
- Unique Dual-response mode (HDR 120dB & High Sensitivity)
- High QE InGaAs from 900nm to 1700nm
- VGA resolution , 640*512 effective pixels
- Bad Pixels Replacement and smart Non Uniformity Correction
- USB3.0, CamLink, GigE and Analog interface
- Available in Compact & Embedded
Applications
- Active Imaging
- Laser Beam profiling
- Metrology (microscopy, hyperspectral)
- Process control (industry, semiconductors,
food, ...) - Defense and security
- Airborne cameras (UAV)
Frequently Asked Questions
What are the applications of the WiDy SenS 640 camera?
The WiDy SenS 640 camera is suitable for active imaging, laser beam profiling, metrology (microscopy, hyperspectral), process control (industry, semiconductors, food), defense and security, and airborne cameras (UAV).
What are the features of the WiDy SenS 640 camera?
The WiDy SenS 640 camera features a unique dual-response mode, high QE InGaAs from 900nm to 1700nm, VGA resolution, bad pixels replacement, and smart non-uniformity correction. It is also available with USB3.0, CameraLink, GigE, and Analog interfaces.
What is the resolution of the WiDy SenS 640 camera?
The WiDy SenS 640 camera has a resolution of 640×512.
What is the temperature range of the WiDy SenS 640 camera?
The WiDy SenS 640 camera has a temperature range of -10°C to 71°C.
What is the WiDy SenS 640 camera?
The WiDy SenS 640 camera is a high-end SWIR camera series with a unique dual-mode InGaAs sensor.
