Description
Plug-and-play with a small form factor, the WiDy NaNo camera is delivered calibrated with proprietary WiDyVISION software. The WiDy NaNo has been designed for SWIR applications where size is crucial. Embedded in UAVs or mounted on helmets, the WiDy NaNo with its 25 x 25 x 29 mm3 provides HDR images clear of saturation in high light conditions. Its TECless feature eases the integrations in Portable platforms.

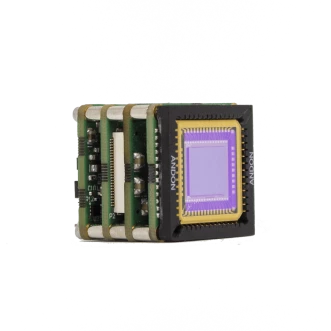

WiDy NaNo 640V-S SWIR Camera
Specifications
| Camera Type: | Security, Industrial |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 15 |
| # Pixels (Width): | 640 |
| Pixel Pitch: | 512 um |
| Array Cooling: | Uncooled |
| Resolution: | 640(H)x512(V) |
| Pixel Pitch: | 15µm |
| Spectral Response: | 0.9 to 1.7um |
| Dynamic Range: | 120dB |
| ADC: | 14 bits |
| Frame Rate: | Up to 100Hz |
| Power Consumption: | 1.5W |
| Power Range: | 5V (USB) |
| Dimension: | 25x25x29mm |
| Weight: | <125g |
| Temperature Range: | 0 to 65°C |
Download Data Sheet
Features
- VGA 640×512, Pitch : 15µm
- Small form factor for embedded platforms
- Near-Infrared Imaging up to 1700nm
- Dynamic Range 120dB
- Low power consumption
- TECless
- Up to 100fps full frame
- USB3.0
Applications
- Imaging
- Spectroscopy
- Surveillance
Frequently Asked Questions
What is the dynamic range of the WiDy NaNo camera?
The WiDy NaNo camera has a dynamic range of 120dB, providing HDR images clear of saturation in high light conditions.
What is the interface of the WiDy NaNo camera?
The WiDy NaNo camera has a USB3.0 interface and can provide up to 100fps full frame.
What is the power consumption of the WiDy NaNo camera?
The WiDy NaNo camera has a low power consumption of 1.5W and is TECless, easing integrations in portable platforms.
What is the resolution of the WiDy NaNo camera?
The WiDy NaNo camera has a VGA resolution of 640x512 pixels with a pixel pitch of 15µm.
What is the WiDy NaNo camera?
The WiDy NaNo camera is a small form factor SWIR camera designed for applications where size is crucial, such as UAVs or helmets.
