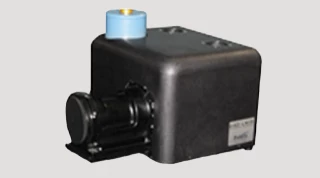

Vela LWIR High-Speed Imaging Polarimeter with Dual Focal Length Lens
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
Experience the pinnacle of advanced imaging technology with the Vela LWIR Imaging Polarimeter, a cutting-edge solution from Polaris Sensor Technologies, Inc. This high-speed half-wave rotating retarder imaging polarimeter is designed to operate efficiently within the long-wave infrared (LWIR) spectrum, offering unparalleled sensitivity and precision. With its ability to collect imagery at different polarization states sequentially in time, the Vela LWIR captures up to 120 frames per second, ensuring you never miss a critical moment.
The Vela LWIR is equipped with a sophisticated 6-position filter wheel, which can be chilled to 77K using a LN2 pour fill Dewar, enhancing its performance in various environmental conditions. The integrated dual focal length lens, offering 45mm and 135mm options, provides flexibility for both wide and narrow field of view (FOV) imaging, making it adaptable to diverse operational needs. This imaging polarimeter is controlled by Grave’, a comprehensive software package specifically designed for imaging polarimeters, facilitating real-time processing of radiometric and polarimetric data products.
Designed for ease of use, the Vela LWIR operates seamlessly with a laptop computer via a single GigE cable connection. Its robust design is field test compatible, ensuring reliable performance in challenging environments. The fusion of polarimetric information with standard radiometric data sets the Vela LWIR apart, offering a sophisticated tool for advanced imaging applications. Whether you are conducting research or engaging in field operations, the Vela LWIR Imaging Polarimeter is engineered to deliver exceptional results.
Vela LWIR High-Speed Imaging Polarimeter with Dual Focal Length Lens
Specifications |
|
|---|---|
| Camera Type: | Other, Security, Industrial |
| Array Type: | Mercury Cadmium Telluride (MCT, HgCdTe) |
| Spectral Band: | 7.5 – 11.1 um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 480 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Cooled |
Features
- High-Speed Imaging: Features a high-speed half wave rotating retarder imaging polarimeter operating in the LWIR spectrum, capturing imagery at different polarization states sequentially at up to 120 frames per second.
- Exceptional Sensitivity: Offers the highest sensitivity among all Polaris’ LWIR imaging polarimeter offerings.
- Advanced Filter System: Equipped with a 6-position filter wheel that can be chilled to 77K using a LN2 pour fill Dewar.
- Dual Focal Length Lens: Integrated lens with dual focal lengths of 45mm/135mm for both wide and narrow field of view (FOV) viewing.
- Comprehensive Software Control: Controlled by Grave’, a mature and complete software package designed for imaging polarimeters, offering real-time processing of radiometric and polarimetric data products, region of interest statistics, and processing.
- Easy Connectivity: Operates with a laptop computer using a single connection GigE cable.
- Data Fusion: Polarimetric information is fused with standard radiometric data for enhanced analysis.
Applications
- Thermal Crossover Detection: Identifies man-made objects even when thermal contrast is low.
- Cluttered Environment Detection: Distinguishes targets from natural background environments.
- Facial Recognition: Enables enhanced biometric imaging in LWIR spectrum.
- Environmental Monitoring: Detects oil on water and other surface contaminants.
- Phenomenology Research: Supports studies of polarimetric signatures in real-world scenarios.
Frequently Asked Questions
The frame rate of the Vela LWIR camera is up to 120 frames per second.
The pixel pitch of the Vela LWIR camera is 15µm.
The resolution of the Vela LWIR camera is 640 x 480 pixels.
The Vela LWIR camera is used for detecting man-made objects, facial recognition, detecting oil on water, and phenomenology.
The weight of the Vela LWIR camera with the standard lens is 31lbs.
