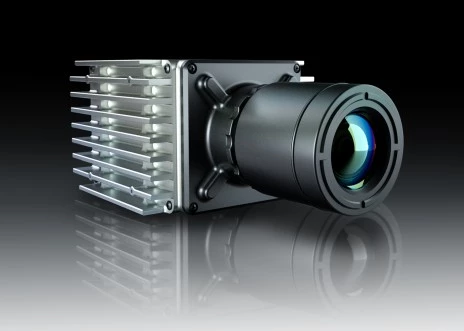

Sierra-Olympic\'s VAYU HD Thermal Camera
Description
The Vayu HD by Sierra-Olympic Technologies is the world’s first Full High-Definition, uncooled thermal imager capable of 1080p output. The Vayu HD provides unmatched image resolution, sensitivity, and detector quality for the most stunning thermal imagery ever offered in a stand-alone commercially designed camera. The Vayu HD processor core offers some of the most refined capabilities found in any thermal camera ever produced. Standard offerings include real-time extended image processing tools found in no other camera, electronic image stabilization, on-board image and video storage, and true Ethernet capabilities. Optional extension capabilities include object tracking and moving target detection with telemetry, NMEA metadata tagging in the Ethernet stream. Because of the special sensor, a custom-designed 24mm F1.1 optic is provided with the system. The lens focuses via the locking thread mount, and supports the systems IP67 enclosure rating. The lens is athermalized, offers a 52° HFOV with minimal distortion, and has a hard-carbon coating for direct exposure to outdoor environments.
Sierra-Olympic\'s VAYU HD Thermal Camera
Specifications |
|
|---|---|
| Camera Type: | Industrial, Security, Military |
| Array Type: | Vanadium Oxide (VOx) Microbolometer |
| Spectral Band: | 8-14um |
| # Pixels (Height): | 1200 |
| # Pixels (Width): | 1920 |
| Pixel Pitch: | 12 um |
| Array Cooling: | Uncooled |
Features
True HD, 1920 x 1200 x 12μm
Uncooled VOX Microbolometer Array
Standard Video Outputs: HD-SDI,
IP-Video (H.264/MJPEG), 16-bit
CameraLink®
Rugged, IP67 Sealed Design for
Outdoor Use
Applications
Degraded Vision
Navigation
Wide Area Surveillance
Rugged Military Imaging
Maritime Imaging
Unmanned Vehicle
Thermal imager for industrial applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Vayu HD is a Full High-Definition, uncooled thermal imager capable of 1080p output, with a resolution of 1920 x 1200 x 12μm.
The Vayu HD offers standard video outputs including HD-SDI, IP-Video (H.264/MJPEG), and 16-bit CameraLink®.
Yes, the Vayu HD has a rugged, IP67 sealed design for outdoor use, and the lens is athermalized, with a hard-carbon coating for direct exposure to outdoor environments.
The Vayu HD offers real-time extended image processing tools found in no other camera, including linear histogram AGC, CLAHE, and LAP.
The Vayu HD is suitable for a range of applications including degraded vision, navigation, wide area surveillance, rugged military imaging, maritime imaging, unmanned vehicle, and thermal imaging for industrial applications.
