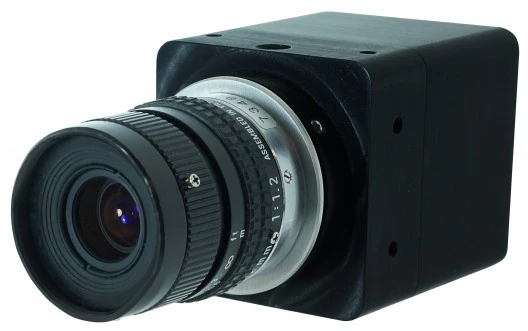

Owl 640 Mini VIS-SWIR Low Power VGA Resolution Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Description
The Owl 640 Mini VIS-SWIR camera is a cutting-edge imaging device designed for high precision and low power consumption. With a VGA resolution of 640 x 512 and a pixel pitch of 15µm x 15µm, this camera harnesses the power of VIS-SWIR technology to deliver exceptional image clarity. Its innovative TEC-less design enables ultra-low power usage, making it an ideal choice for applications requiring efficiency without compromising on performance.
Built with ruggedness and compactness in mind, the Owl 640 Mini is perfect for integration into small OEM platforms. Its ultra-high intrascene dynamic range allows for simultaneous capture of both bright and dark portions of a scene, ensuring that no detail is lost. This feature is particularly beneficial for environments with challenging lighting conditions, where precision is paramount.
The camera's C-mount optical interface and global shutter mode further enhance its versatility, allowing for seamless integration into various systems. With a programmable frame rate of up to 120Hz and a spectral response range of 0.4µm to 1.7µm, the Owl 640 Mini stands out as a highly adaptable solution for diverse imaging needs. Whether for industrial, scientific, or surveillance purposes, this camera offers unparalleled performance in a compact form factor.
Raptor Photonics ensures that the Owl 640 Mini is not only at the forefront of technology but also user-friendly, with easy camera setup and control via Cameralink. Its robust build and low power consumption (<2.5W) make it a sustainable option for long-term use. With the ability to operate in temperatures ranging from -20˚C to +55˚C, the Owl 640 Mini is designed to withstand various environmental conditions, making it a reliable choice for professionals seeking high-quality imaging solutions.
Owl 640 Mini VIS-SWIR Low Power VGA Resolution Camera
Specifications |
|
|---|---|
| Camera Type: | Scientific |
| Array Type: | InGaAs |
| Spectral Band: | 0.4 – 1.7 um |
| # Pixels (Height): | 512 |
| # Pixels (Width): | 640 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Uncooled |
Features
- VGA Resolution: 640 x 512 pixels for high-quality imaging.
- 15µm x 15µm Pixel Pitch: Delivers the highest resolution VIS-SWIR images.
- Ultra Low Power Consumption: Consumes less than 2.5W, making it energy efficient.
- TEC-less Visible SWIR Technology: Operates without thermoelectric cooling, enhancing portability and reducing power usage.
- Ultra High Intrascene Dynamic Range: Captures bright and dark portions of a scene simultaneously for superior image quality.
- Ultra Compact and Rugged Design: No fan required, ideal for integration into small OEM platforms.
- Wide Wavelength Range: Covers VIS-SWIR spectrum from 0.4µm to 1.7µm.
- High Quantum Efficiency: Peak efficiency over 85%, optimized for 860, 1064, and 1550nm laser line detection.
- Global Shutter: Ensures crisp images without motion blur, with exposure times from 1µs to 1/frame rate.
- Programmable Frame Rate: Up to 120Hz for capturing fast-moving scenes.
- Output Format: 14-bit CameraLink for high-quality data transmission.
- Compact Dimensions: Measures 42mm x 42mm x 67mm, weighing only 282g.
- Operating Temperature Range: Functions efficiently from -20˚C to +55˚C.
Applications
- Laser Line Detection: Sensitive to 860, 1064, and 1550 nm for industrial and scientific use.
- Handheld Goggles: Ultra-compact and lightweight for wearable vision systems.
- Machine Vision: Enhances automated inspection with VIS-SWIR imaging capability.
- Beam Profiling: Accurate laser beam analysis and alignment monitoring.
- Vision Enhancement: Supports surveillance and low-light operational systems.
Frequently Asked Questions
The OWL 640 'Mini' is a TEC-less camera with SWaP design, which stands for Size, Weight, and Power. It is designed for integration into small OEM and machine vision and scientific platforms.
The OWL 640 'Mini' camera features TEC-less Visible SWIR, ultra-low power, high resolution VIS-SWIR image, ultra-high intrascene dynamic range, and a compact, rugged design with no fan.
The OWL 640 'Mini' camera can be used for 860, 1064 & 1550nm laser line detection, hand-held goggles, vision enhancement, machine vision, beam profiling, and scientific experiments.
The OWL 640 'Mini' camera has a VGA resolution of 640 x 512 pixels with a 15 µm x 15µm pixel pitch.
The OWL 640 'Mini' camera has an ultra-low power consumption of less than 2.5W.
