Description
The IR0005 infrared camera is the latest in the thermal imaging line that brings together all the strong points of the IR0018 and compacting it into a new sleek and elegant design. It\'s now more user-friendly to take with you around the house or on the job. Put it in your pocket and go.

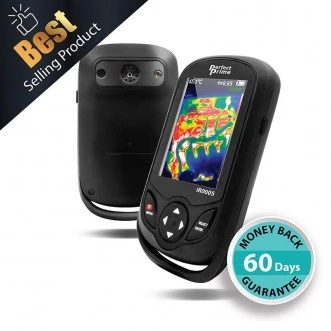

IR0005 Thermal Camera
Specifications
| Camera Type: | Security |
|---|---|
| Array Type: | Not Specified |
| Spectral Band: | 7 – 14 um |
| # Pixels (Height): | 220 |
| # Pixels (Width): | 160 |
| Pixel Pitch: | Not Specified |
| Array Cooling: | Uncooled |
Download Data Sheet
Features
IR Image Resolution: 220 x 160, 35,200 pixels with visible light image 0.3 millions pixels
Storage memory: Micro SD Card, 3GB for image storage
Thermal Sensitivity:0.07°C, Temperature Range: -20 to 300 °C
Temperature Accuracy:+/- 2 % or +/- 2 °C
Display Screen: 3.2\" Full-angle HD TFT, Visible Image Resolution:0.3 mega pixels
Frequently Asked Questions
What is the resolution of the IR0005 thermal camera's IR image?
The IR image resolution of the IR0005 thermal camera is 220 x 160, which is equivalent to 35,200 pixels.
What is the storage capacity of the IR0005 thermal camera?
The IR0005 thermal camera has a storage memory of Micro SD Card, 3GB for image storage.
What is the thermal sensitivity of the IR0005 thermal camera?
The thermal sensitivity of the IR0005 thermal camera is 0.07°C.
What is the temperature range of the IR0005 thermal camera?
The temperature range of the IR0005 thermal camera is -20 to 300 °C.
What is the display screen size of the IR0005 thermal camera?
The IR0005 thermal camera has a 3.2" full-angle HD TFT display screen with a visible image resolution of 0.3 mega pixels.
