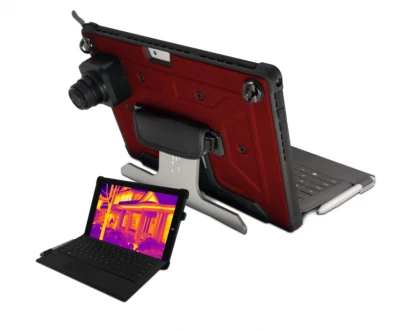

IR-Pad 320 Builder Infrared Camera

Specifications

Camera Type: Security, Industrial
Array Type: Not Specified
Spectral Band: 7 – 14 um
# Pixels (Height): 320
# Pixels (Width): 240
Pixel Pitch: 17 um
Array Cooling: Uncooled
Document icon Download Data Sheet Download icon

Features

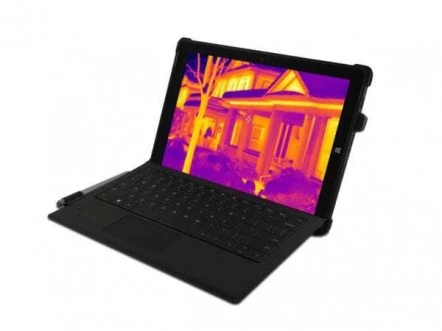

  • All-in-One Device: The IR-Pad 320 - Builder combines a thermal infrared camera and a tablet for seamless thermal imaging and report building.

  • Custom Infrared Camera: Utilizes the ICI 8320 infrared camera to capture high-quality thermal images.

  • Dual Mode Functionality: Easily switch between visible and infrared modes with multiple color palettes to enhance viewing.

  • Intuitive Touch Screen Interface: Navigate effortlessly with a user-friendly touch screen.

  • Connectivity: Features Bluetooth® and WiFi for easy data transfer and connectivity.

  • Rugged Design: Built to withstand any environment a builder or inspector may encounter.

  • IR Flash Pro Software: Includes powerful software for advanced thermal analysis and reporting.

  • Lens Options: Choose from a range of fixed and manual focus lenses to suit different inspection needs.

  • Durability: Withstands 75 G shock and 4 G vibration.

  • Compact and Portable: Dimensions of 209 x 311 x 19 mm and a weight of 1400 g (without lens).

  • Advanced Power and Data Options: USB 2.0 for power and data, USB and HD video out, built-in shutter, and internal NUC.

  • Operating System: Runs on Windows 10 for compatibility with a wide range

Applications


  • Building / Home Inspections: Detect hidden faults and inefficiencies

  • Insulation Assessments: Identify thermal leakage and underperformance

  • Electrical Inspections: Safely locate hotspots and anomalies

  • HVAC Evaluations: Analyze heating and cooling system performance

  • Roof Inspections: Spot moisture intrusion and structural issues

  • Real Estate Appraisals: Provide in-depth, visual reports for buyers and sellers

  • Plumbing / Pools: Detect leaks, pipe issues, and water distribution problems
