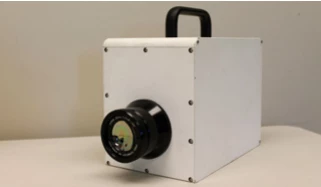

Corvus LWIR Imaging Polarimeter
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
The Corvus LWIR is a cutting-edge scientific imaging instrument designed to facilitate advanced investigations in the Long-Wave InfraRed (LWIR) spectrum. This sophisticated device is engineered to capture and analyze the polarization characteristics of various scenes, making it an invaluable tool for researchers and professionals in the field of infrared imaging. With its robust architecture, the Corvus LWIR is equipped with a spinning linear polarizer, enabling the collection of the first three Stokes Vector elements—radiometric (S0), degree of horizontal polarization (S1), and degree of 45° polarization (S2)—on a per-pixel basis.
The Corvus LWIR stands out for its ability to provide detailed insights into the Degree of Linear Polarization (DoLP) and the Angle of Polarization (AoP). This capability makes it ideally suited for the investigation of polarization phenomenology in scenes that are largely static. The instrument's powerful software interface offers users complete control over the recording process, with six different recording options available. These options include automatic collection over extended periods, such as several diurnals, as well as manual start and stop controls, ensuring flexibility and precision in data collection.
Once data is collected, the Corvus LWIR's software further enhances the user experience by supporting comprehensive data analysis. Users can export imagery for detailed reports and perform spatial and temporal averaging of selected pixels, pixel areas, or lines of pixels. This feature-rich software provides a simple, intuitive, and powerful interface, making sensor control and data analysis both efficient and effective. The Corvus LWIR is a testament to Polaris Sensor Technologies, Inc.'s commitment to innovation and excellence in the field of infrared imaging.
Corvus LWIR Imaging Polarimeter
Specifications |
|
|---|---|
| Camera Type: | Scientific, Security, Industrial |
| Array Type: | Vanadium Oxide (VOx) Microbolometer |
| Spectral Band: | 7.5 – 13.5 um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 17 um |
| Array Cooling: | Cooled |
Features
- Polarization Imaging Capability: Measures first three Stokes Vector elements (S0, S1, S2).
- Derived Polarization Products: Provides Degree of Linear Polarization (DoLP) and Angle of Polarization (AoP).
- Spinning Linear Polarizer Design: Enables precise polarization measurements in LWIR.
- Flexible Software Control: Six recording modes with options for automated or manual operation.
- Advanced Data Analysis: Supports spatial/temporal averaging and full data export.
- Compact and Lightweight: Field-ready design with GigE data interface.
Applications
- Oil Spill Detection: Locates oil on water surfaces for environmental monitoring.
- Disturbed Earth Detection: Identifies soil disturbances for security and geological studies.
- Route and Pathway Detection: Highlights roads and pathways under low-contrast conditions.
- Camouflage Detection: Reveals concealed or disguised objects in natural backgrounds.
- Facial Recognition: Provides enhanced biometric imaging in LWIR.
- UXO Location: Detects unexploded ordnance for defense and safety applications.
Frequently Asked Questions
The Corvus LWIR Camera is ideally suited for the investigation of polarization phenomenology in scenes that are substantially static. It can be used for oil on water location, disturbed earth location, road/pathway location, camouflage, concealment, and deception detection, facial recognition, and UXO location.
The Corvus LWIR Camera features a spinning linear polarizer, allows the collection of the first three Stokes Vector elements, provides the Degree of Linear Polarization (DoLP) and Angle of Polarization (AoP), and has powerful software that puts you in control of the recording.
The Corvus LWIR Camera is a scientific imaging instrument that facilitates the investigation of polarization in the Long-Wave InfraRed (LWIR) band.
The Corvus LWIR Camera has a resolution of 640 x 512 pixels.
The Corvus LWIR Camera weighs 9.6 lbs with the standard lens.
