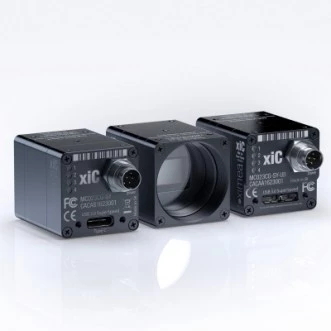

Ximea MC089CG-SY Camera
Description
Thanks to its slim two-board stack size, the xiC camera line can be tightly integrated into embedded and multi-camera systems. Its small size and variety of interface configurations make it ideal for a high number of challenging applications. xiC cameras can be supplied in many configurations including various sensors in both color or monochrome, different data connection types (micro-B, type-C, or fl ex ribbon cable). This makes them compatible with the xiFLY system.
Ximea MC089CG-SY Camera
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 4112 |
| # Pixels (Height): | 2176 |
| Pixel Size (Square): | 3.45 um |
| Peak Quantum Efficiency: | -- % |
| Full Frame Rate: | 43 fps |
| Bit Depth: | 8 bit |
Features
Low power consumption
USB3 Vision compliant
Various standard connector options: Micro-B, Type-C
Ribbon cable variants for embedded systems
Flexible GPIO, optoisolated and bidirectional
High-quality images from Sony Pregius sensors
Rugged and lightweight, aluminum alloy CNC machined housing
Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
No, the xiC camera line does not require auxiliary power as it is fed directly through the USB bus.
The xiC camera line can be used for a variety of applications, including vision inspection, OEM, metrology, and scientific purposes.
The front face size of the xiC camera line is 26 x 26 mm with a C/CS-mount.
The xiC camera line offers various standard connector options, including Micro-B, Type-C, and ribbon cable variants for embedded systems.
The xiC camera line offers various sensors in both color or monochrome, including Sony Pregius global shutter sensors ranging from 2.3 - 12.4 Mpix.
