Description
The In-Line Polarizer is designed to pass light with one specific polarization while blocking
the other polarization. Itcan be used to convert unpolarized light into polarized light with
high extinction ratio. It can also be used to enhance the extinction ratio of signals with
its excellent polarization properties. It is ideal for high speed communication systems
and test instrumentations where high polarization extinction ratio is required.

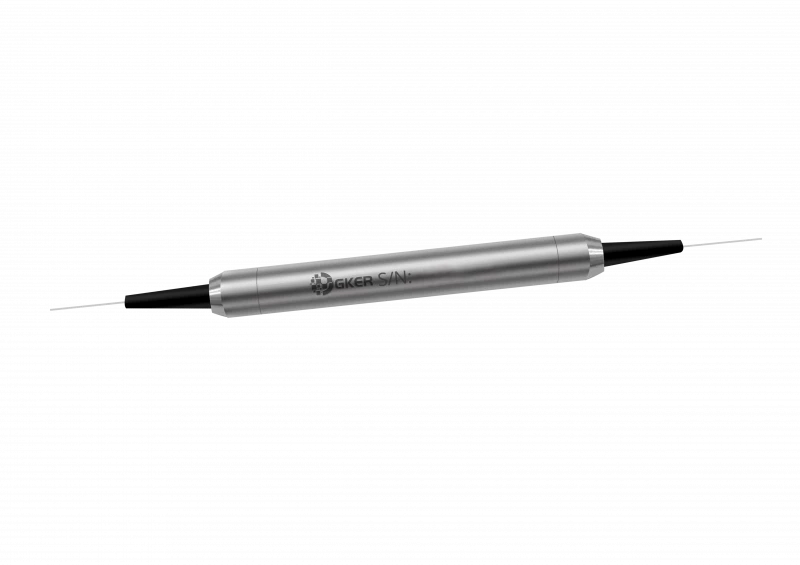

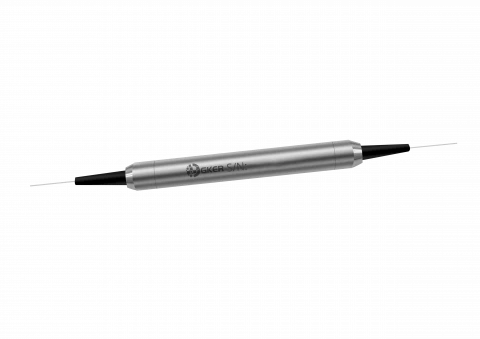

In-Line Polarizer-800-1064-1310nm
Specifications
| Center Wavelength: | 800 nm |
|---|---|
| Operating Wavelength Range: | 800 – 1310 nm |
| Typical Insertion Loss: | 1 dB |
| Min Return Loss: | 50 dB |
| Typical Extinction Ratio: | 28 dB |
| Max Optical Power (CW): | 300 mW |
| Center Wavelength (λc): | 800 1064 1310 nm |
| Operating Wavelength Range: | ± 50 ± 50 ± 50 nm |
| Max. Insertion Loss: | 1 0.8 0.6 dB |
| Max. WDL, 23 ℃: | 1 0.5 0.3 dB |
| Typ. Extinction Ratio, 23 ℃: | 28 30 30 dB |
| Min. Extinction Ratio, 23 ℃: | 25 27 28 dB |
| Min. Return Loss: | 50 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Download Data Sheet
