Description
The Reduced Cladding In-Line Polarizer is designed to pass light with one specific
polarization while blocking the other polarization.It can be used to convert unpolarized
light into polarized light with high extinction ratio. It can also be used to enhance the
extinction ratio of signals with its excellent polarization properties. It is ideal for high
speed communication systems and test instrumentations where high polarization
extinction ratio is required.

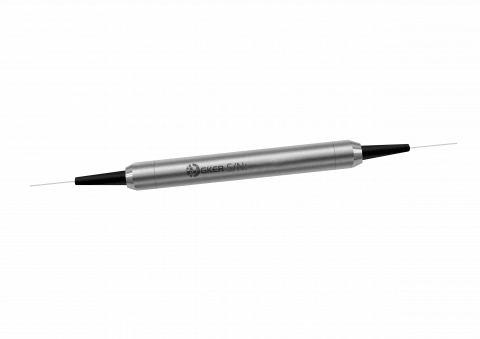

1550nm Reduced Cladding In-Line Polarizer
Specifications
| Center Wavelength: | 1550 nm |
|---|---|
| Operating Wavelength Range: | 55 – 1550 nm |
| Typical Insertion Loss: | 0.4 dB |
| Min Return Loss: | 50 dB |
| Typical Extinction Ratio: | 28 dB |
| Max Optical Power (CW): | 300 mW |
| Center Wavelength (λc): | 1550 nm |
| Operating Wavelength Range: | λc ± 50 nm |
| Typ. Insertion Loss, 23 ℃: | 0.3 dB |
| Max. Insertion Loss: | 0.5 dB |
| Typ. Extinction Ratio, 23 ℃: | 30 dB |
| Min. Extinction Ratio, 23 ℃: | 28 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Min. Return Loss: | 50 dB |
| Fiber Type: | RC SMF-28, or RC PM Panda Fiber (MFD 9.5 um) - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Download Data Sheet
