Description
The In-Line Polarizer is designed to pass light with one specific polarization while
blocking the other polarization.It can be used to convert unpolarized light into polarized
light with high extinction ratio. It can also be used to enhance the extinction ratio of
signals with its excellent polarization properties. It is ideal for high speed communication
systems and test instrumentations where high polarization extinction ratio is required.

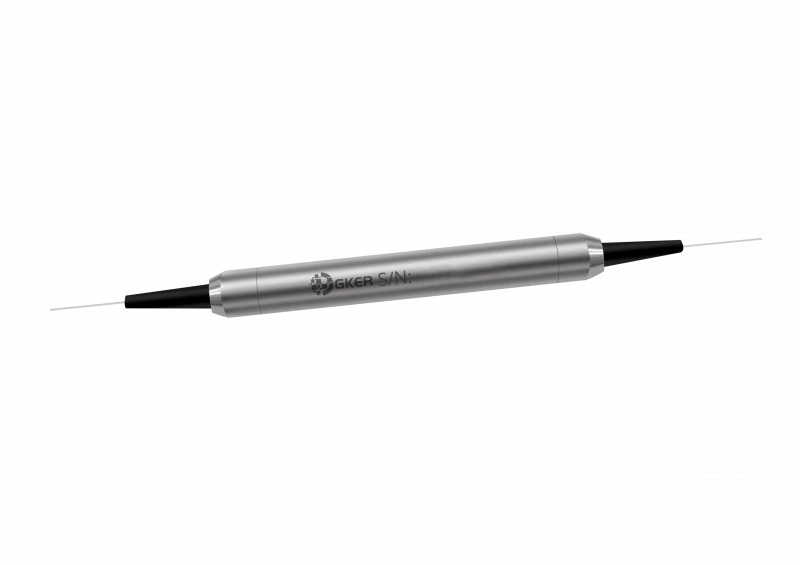

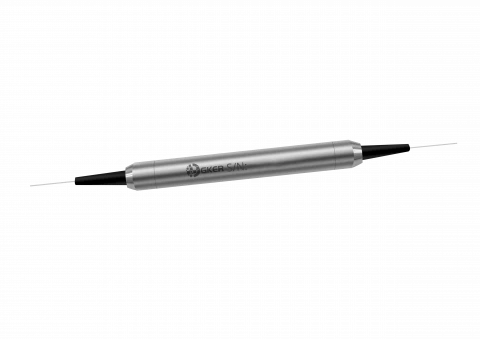

In-Line Polarizer
Specifications
| Center Wavelength: | 1310 nm |
|---|---|
| Operating Wavelength Range: | 1310 – 1550 nm |
| Typical Insertion Loss: | 0.3 dB |
| Min Return Loss: | 50 dB |
| Typical Extinction Ratio: | 30 dB |
| Max Optical Power (CW): | 300 mW |
| Center Wavelength (λc): | 1310, 1480, or 1550 nm |
| Operating Wavelength Range: | λc ± 50 nm |
| Typ. Insertion Loss, 23 ℃: | 0.3 dB |
| Max. Insertion Loss: | 0.5 dB |
| Typ. Extinction Ratio, 23 ℃: | 30 dB |
| Min. Extinction Ratio, 23 ℃: | 28 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Min. Return Loss: | 50 dB |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | -40 to +85 ℃ |
Download Data Sheet
