Description

The 850nm TGG Based Optical Circulator from DK Photonics is a precision-engineered, high-performance component designed for advanced fiber optic systems. Utilizing terbium gallium garnet (TGG) as its core material, this circulator offers superior optical performance, making it an excellent choice for demanding applications in fiber optic amplifiers, pump laser sources, fiber optic sensors, and test and measurement instrumentation.

This circulator efficiently directs light signals, routing incoming signals from Port 1 to Port 2 and from Port 2 to Port 3, ensuring optimal signal management within complex optical networks. Its design emphasizes low insertion loss and high isolation, which are critical for maintaining signal integrity and minimizing crosstalk in multi-channel systems. The device also boasts high return loss and low polarization dependent loss (PDL), contributing to its reliability and consistent performance across a range of operating conditions.

Engineered for versatility, the 850nm TGG Based Optical Circulator is available in both polarization-maintaining (PM) and non-PM configurations, with customizable fiber types and pigtail lengths to suit specific integration requirements. Its robust construction ensures excellent temperature stability and high reliability, making it suitable for both laboratory and industrial environments. The circulator is also capable of handling high optical power, with options for direct fiber splicing to accommodate higher power levels, which is particularly beneficial in fiber laser and amplifier setups.

With its combination of advanced materials, precise optical routing, and customizable options, the DK Photonics 850nm TGG Based Optical Circulator stands out as a reliable solution for professionals seeking high isolation and low loss in their optical systems. Its adaptability and performance make it a preferred choice for cutting-edge photonics applications where signal quality and system stability are paramount.

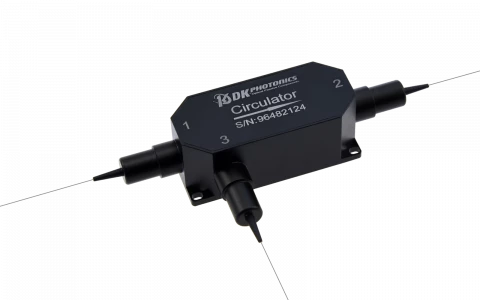

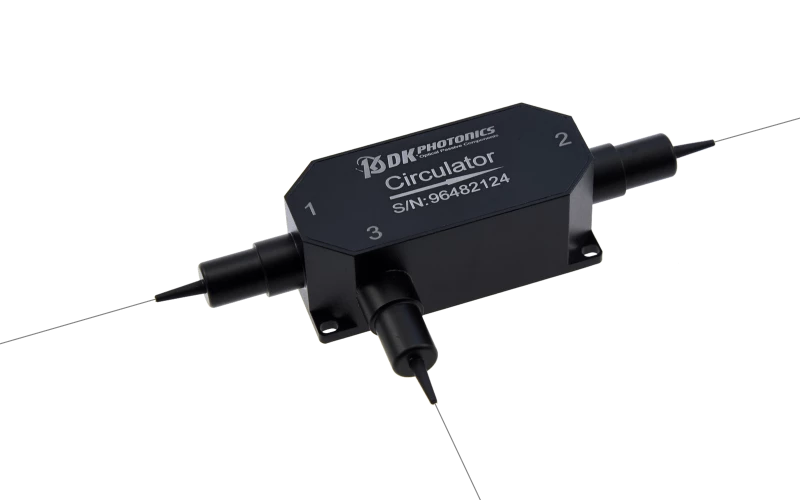

850nm TGG Based Optical Circulator

Specifications

Type Of The Device: Circulator
Operating Wavelength: 850 nm
Max Power: 0.5 W
Min Isolation: 15 dB
Operating Wavelength Range: ±10 nm
Typical Peak Isolation: 26 dB
Min. Isolation, λc, 23°C: 22 dB
Max. Insertion Loss, 23°C: 1.5 dB
Min. Return Loss: 45 dB
Fiber Type: Nufern 780-HP, or other
Operating Temperature: 0 to +60 °C
Storage Temperature: -10 to +75 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 850nm TGG-Based Optical Circulator
  • Low Insertion Loss: Ensures minimal signal attenuation for high-performance optical networks
  • High Isolation: Superior channel separation prevents signal cross-talk and enhances system integrity
  • Polarization Options: Available in both Polarization Maintaining (PM) and Non-PM configurations
  • Customizable Fiber Types: Supports various fiber types and pigtail lengths to meet specific application needs
  • High Reliability: Robust design for long-term operation in demanding environments
  • Excellent Temperature Stability: Maintains performance across a wide temperature range
  • High Power Handling: Suitable for applications up to 2W (with connector) and higher with direct splicing
  • Low Polarization Dependent Loss (PDL): Ensures consistent performance regardless of polarization state
  • High Return Loss: Minimizes back-reflection for improved signal quality
  • Compact Package: Space-saving design for easy integration into optical systems
  • Customizable Wavelengths and Specifications: Tailored solutions available for unique requirements
  • RoHS Compliant: Environmentally friendly and meets international safety standards

Applications

  • Fiber Optic Amplifiers
    Enhances the performance of optical amplifiers by efficiently routing optical signals and preventing unwanted back reflections, ensuring signal integrity and amplifier longevity.
  • Pump Laser Source Isolation
    Protects pump laser sources from damaging back-reflected light, improving the reliability and lifespan of laser diodes in fiber laser systems.
  • Fiber Optic Sensors
    Enables advanced sensor configurations by directing light through sensing elements and isolating return signals for accurate measurement in distributed and point sensing applications.
  • Test and Measurement Equipment
    Essential for optical testing setups, allowing precise routing and isolation of test signals in laboratory and production environments.
  • Optical Instrumentation
    Integrates into various optical instruments to manage signal direction, minimize loss, and prevent interference, supporting high-precision measurements.
  • Fiber Laser Systems
    Used in high-power fiber laser setups to separate pump and signal paths, protect sensitive components, and enable bidirectional operation.
  • Optical Communication Networks
    Facilitates bidirectional data transmission, wavelength multiplexing, and signal routing in advanced fiber optic communication systems.
  • Optical Coherence Tomography (OCT)
    Supports medical imaging systems by directing reference and sample beams, improving image quality and system stability.
  • Quantum Optics and Research
    Enables complex experimental setups requiring precise control of light paths, polarization, and isolation in quantum communication and photonics research.
  • Multiplexing and Demultiplexing Systems
    Used in WDM (Wavelength Division Multiplexing) systems for efficient channel routing and isolation, enhancing network capacity and performance.
  • Reflectometry and Fault Detection
    Integral in OTDR (Optical Time Domain Reflectometry) systems for isolating test signals and improving fault location accuracy in fiber networks.
  • High-Power Optical Applications
    Suitable for applications requiring high power handling and robust isolation, such as industrial laser processing and scientific research.

Frequently Asked Questions

What is the DK Photonics 850nm TGG Based Optical Circulator?
The DK Photonics 850nm TGG Based Optical Circulator is a high-performance fiber optic component designed to route optical signals from Port 1 to Port 2 and from Port 2 to Port 3. It features low insertion loss, high isolation, and excellent temperature stability, making it ideal for applications in fiber lasers, amplifiers, sensors, and test instrumentation.
What are the main features of the 850nm TGG Based Optical Circulator?
Key features include low insertion loss, high isolation, high reliability, excellent temperature stability, and availability in both polarization-maintaining (PM) and non-PM versions. The circulator also offers customizable fiber types and high power handling capabilities.
What applications is the DK Photonics optical circulator suitable for?
This optical circulator is suitable for fiber optic amplifiers, pump laser sources, fiber optic sensors, test and measurement systems, and general instrumentation applications. Its high performance and reliability make it ideal for demanding optical setups.
Can the DK Photonics circulator be customized for specific requirements?
Yes, DK Photonics offers customization options for fiber type, wavelength, power handling, and connector types. Customers can request custom fiber pigtails, different operating wavelengths, and specific handling power to meet their unique application needs.
What is the recommended installation method for high power applications?
For high power applications, DK Photonics recommends direct splicing of fibers instead of using connectors, as connectors are only suitable for low power performance testing. This ensures optimal power handling and device reliability.
How does the DK Photonics circulator ensure high reliability and stability?
The circulator is designed with high-quality TGG materials and advanced manufacturing processes to provide excellent environmental and temperature stability. It also features low polarization dependent loss (PDL) and high return loss for consistent performance.
How should I specify my requirements when ordering a custom circulator?
When ordering, provide the correct part number (P/N) according to DK Photonics' ordering information and include a detailed description of your requirements. If you need a connector, avoid choosing a 250μm bare fiber pigtail, and specify if your application involves pulsed signals, including pulse energy and peak power.

Got more questions? Use the inquiry form to ask the supplier directly.
