Description

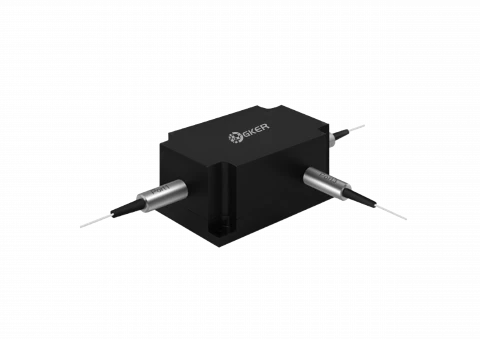

The GKER Photonics High Power Polarization Insensitive Circulator (GK-HPCIR Series) is engineered for high-performance applications requiring minimal signal loss and robust power handling. Operating at a central wavelength of 1064 nm, this circulator is designed to route optical signals efficiently with exceptionally low insertion loss and high isolation.
With a typical insertion loss of just 0.8 dB and a peak isolation of 25 dB, it ensures optimal signal integrity. The device excels in environments where high optical power and excellent return loss are essential, handling up to 10 W of continuous wave power and peak pulses up to 10 kW.
The circulator's polarization insensitivity guarantees reliable performance across varying polarization states, making it suitable for fiber laser systems and high-precision instrumentation. Its compact design and high operational stability under a wide temperature range (+10°C to +50°C) and storage conditions (0°C to +60°C) further enhance its versatility and application scope.
High Power Polarization Insensitive Circulator-HPCIR
Specifications
| Type Of The Device: | Circulator |
|---|---|
| Operating Wavelength: | 1064 nm |
| Max Power: | 10 W |
| Min Isolation: | 22 dB |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Typ. Peak Isolation: | 25 dB |
| Min. Isolation, λc, 23 ℃: | 22 dB |
| Typ. Insertion Loss, 23 ℃: | 0.8 dB |
| Max. Insertion Loss, 23 ℃: | 1 dB |
| Max. Polarization Dependent Loss: | 0.2 dB |
| Min. Crosstalk: | 45 dB |
| Min. Return Loss: | 45 dB |
| Max. Average Optical Power: | 10 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | HI 1060 Fiber - |
| Operating Temperature: | + 10 to + 50 ℃ |
| Storage Temperature: | 0 to + 60 ℃ |
Download Data Sheet
Features
- Polarization Insensitivity: Consistent performance regardless of light polarization state
- Low Insertion Loss: Typical loss of 0.8 dB at 23°C, ensuring minimal signal degradation
- High Isolation: Minimum isolation of 25 dB, protecting signal quality
- High Power Handling: Supports up to 10 W of continuous wave power and peak power of up to 10 kW
- High Return Loss: Minimum return loss of 45 dB, reducing reflections
- Robust Design: Operates effectively from +10°C to +50°C and can be stored at 0°C to +60°C
Applications
- Fiber Laser Systems: Ideal for managing high-power laser outputs with minimal loss
- Instrumentation: Suitable for precise measurement and testing applications
- Telecommunications: Provides reliable signal routing and isolation in communication systems
