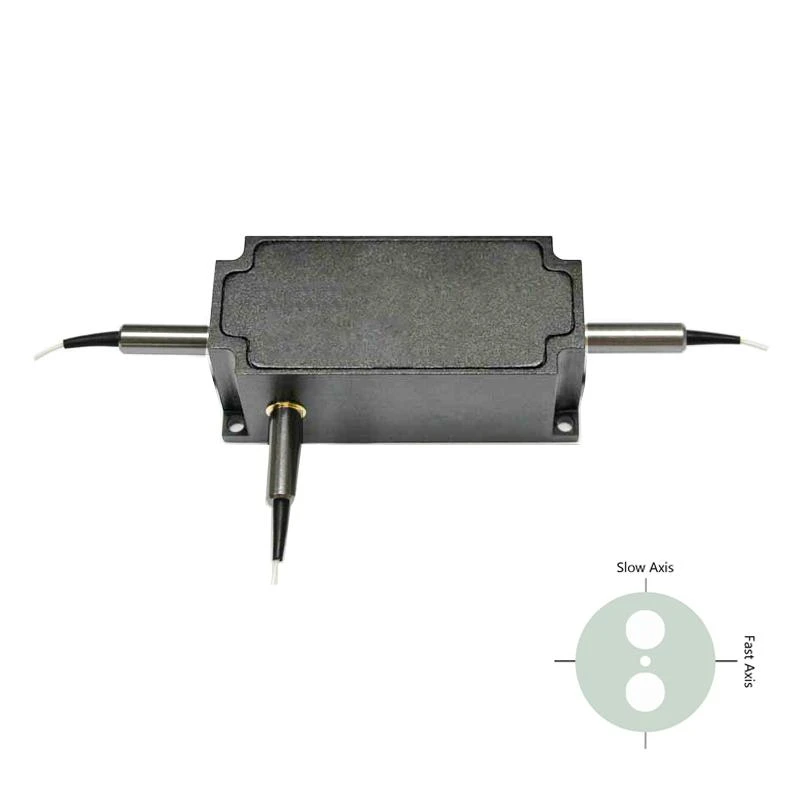

High Power 980nm PM 3-port Optical Circulator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2021
Description
High Power 980nm Polarization Maintaining Optical Isolator is an advanced fiber passive component designed to enhance the performance of optical systems. Constructed with TGG crystal, this isolator ensures that light signals are transmitted in a single forward direction, effectively preventing back reflection. This feature is crucial for maintaining the integrity of the light source and minimizing optical signal noise, making it an essential component in various optical applications.
Widely utilized in amplifier systems and fiber optic sensor systems, the High Power 980nm PM Optical Isolator is engineered to deliver exceptional performance. Its ability to handle higher optical power levels upon request makes it versatile for different operational needs. The isolator's design is optimized for high isolation and low insertion loss, ensuring reliable and efficient operation in demanding environments.
With its robust construction and high reliability, this optical isolator is suitable for use in fiber optic amplifiers, fiber lasers, and laboratory research settings. Its compact size and precision engineering make it an ideal choice for applications requiring high power and precise polarization maintenance. For specialized requirements, such as pulse type operations, customers are encouraged to contact us for confirmation and customization options.
High Power 980nm PM 3-port Optical Circulator
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 980 nm |
| Max Power: | 20 W |
| Min Isolation: | 22 dB |
| Max. Insertion Loss: | 1.5 dB |
| Max. Optical Power: | 20 W |
| Max. Peak Power: | 20 kW |
Features
- High Power 980nm Polarization Maintaining Optical Isolator: Built with TGG crystal, this isolator ensures light signal delivery in one forward direction, effectively preventing back reflection.
- Applications: Ideal for use in fiber optic amplifier systems, fiber optic sensor systems, fiber lasers, and lab & research environments.
- High Isolation: Provides a minimum isolation of 32 dB, ensuring optimal performance by reducing unwanted signal interference.
- Low Insertion Loss: Typical insertion loss is only 0.8 dB, minimizing signal attenuation.
- High Reliability: Designed for consistent performance under various conditions, ensuring long-term reliability.
- Customizable Options: Available in multiple wavelengths (915nm, 930nm, 940nm, 950nm, 975nm, 980nm) and fiber lengths (0.5m, 1.0m, 1.5m, 2.0m).
- Connector Options: Choose from FC/APC, FC/UPC, SC/APC, SU/APC, LC/APC, LC/UPC, or specify your requirement.
- Operating and Storage Temperature: Operates between +10℃ to +50℃ and can be stored between 0℃ to +60℃.
- Max Optical Power: Supports continuous wave (CW) optical power up to 20W, with peak power options available.
- Fiber Type: Utilizes PM Panda Fiber for enhanced performance.
- Compact Design: Features a compact package dimension of 4x3mm, making it suitable for space-constrained applications.
Applications
- Fiber Optic Amplifiers: Protects light sources and reduces noise in high-power systems.
- Fiber Optic Sensors: Ensures accurate signal detection in precision sensing setups.
- Fiber Lasers: Maintains stable laser output under high-power operation.
- Laboratory & Research: Ideal for experimental and high-precision optical experiments.
Frequently Asked Questions
It is widely used in Laser System, Fiber Optic Sensor, and Coherent Detecting field.
The optical power can be up to 20W CW upon request.
It has high power, high extinction ratio, high isolation, and high reliability.
It can be used in Fiber Optic Amplifier, Fiber Optic Sensor, Laser System, and Coherent Detecting.
The operating temperature range is from -10℃ to 50℃.
