Description

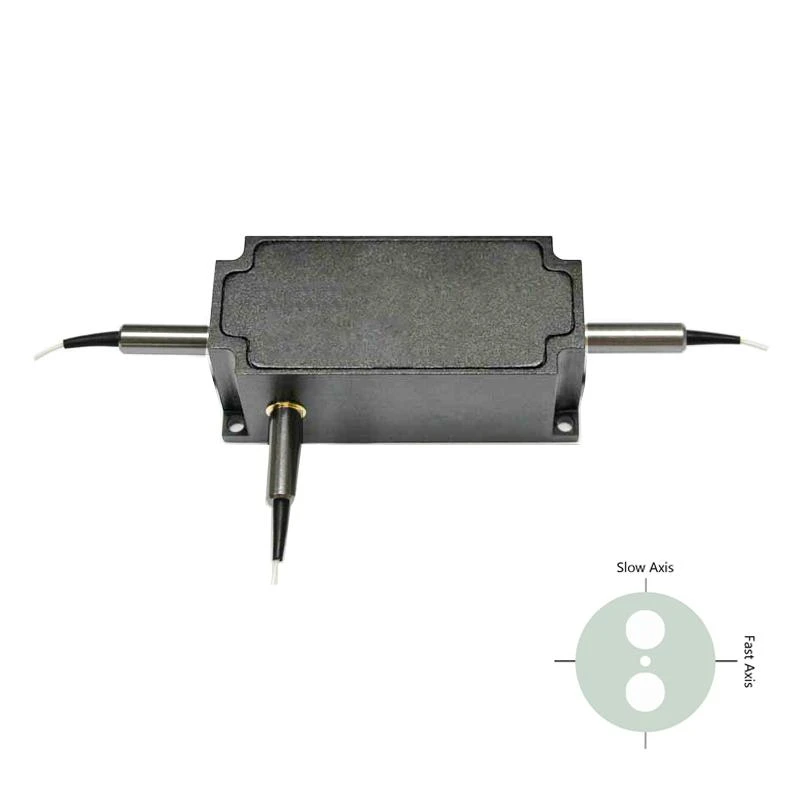

High Power 635nm 3-Port Polarization Insensitive Optical Circulator is a cutting-edge fiber passive component designed to optimize signal light transmission paths. Utilizing advanced TGG crystal technology, this circulator efficiently directs signals from Port 1 to Port 2 and subsequently from Port 2 to Port 3. Its high isolation capability effectively blocks back reflection light, ensuring superior performance and reliability.
This optical circulator is an essential component in various high-demand applications, including Fiber Amplifier Systems, Fiber Optic Sensors, and Testing Systems. Its robust design and high power handling make it ideal for environments requiring consistent and reliable signal management. The circulator's polarization insensitivity further enhances its versatility, making it suitable for a wide range of optical systems.
Engineered for high performance, the circulator offers low insertion loss and high isolation, ensuring minimal signal degradation and maximum efficiency. Its high reliability and durability are complemented by its ability to handle significant optical power, making it a preferred choice for professionals seeking dependable fiber optic solutions. Whether for coherent detecting or other advanced optical applications, this circulator delivers exceptional results.
High Power 635nm 3-port Polarization Insensitive Optical Circulator
Specifications
| Type Of The Device: | Circulator |
|---|---|
| Operating Wavelength: | 635 nm |
| Max Power: | 2 W |
| Min Isolation: | 20 dB |
| Max. Insertion Loss: | 2.0 dB |
| Typ. Isolation: | 25 dB |
Download Data Sheet
Features
- High Power 635nm 3-Port Polarization Insensitive Optical Circulator: Designed with TGG crystal to efficiently change signal light transmission paths.
- Wide Application: Ideal for use in Fiber Amplifier Systems, Fiber Optic Sensors, and Testing Systems.
- High Isolation: Effectively blocks back reflection light, ensuring signal integrity.
- Low Insertion Loss: Typical insertion loss of 1.5 dB and maximum of 2.0 dB between ports.
- High Reliability: Built for consistent performance in demanding environments.
- Center Wavelength: 635 nm with a bandwidth of ±10 nm.
- Polarization Dependent Loss: Maximum PDL of 0.15 dB for stable performance.
- Cross Talk: Minimum cross talk of 40 dB to prevent signal interference.
- Return Loss: Minimum return loss of 40 dB for optimal signal reflection management.
- Optical Power Handling: Supports continuous wave optical power of 1W or 2W, with peak power up to 5 kW or 10 kW.
- Durable Construction: Can withstand a maximum tensile load of 5 N.
- Fiber Type: Utilizes 630-HP fiber for enhanced performance.
- Operating Temperature Range: +5℃ to +65℃, suitable for various environmental conditions.
- Storage Temperature Range: -40℃ to +85℃ for safe storage.
- Compact Design: Package dimensions of 4x3mm, with specific port dimensions for easy integration.
Applications
- Fiber Optic Amplifier Systems: Directs signals efficiently in high-power setups.
- Fiber Optic Sensors: Maintains accurate signal routing for precise measurements.
- Coherent Detection Systems: Minimizes back-reflection and cross-talk for accurate detection.
- Optical Testing & Laboratory Systems: High isolation and low loss ensure reliable experimental results.
