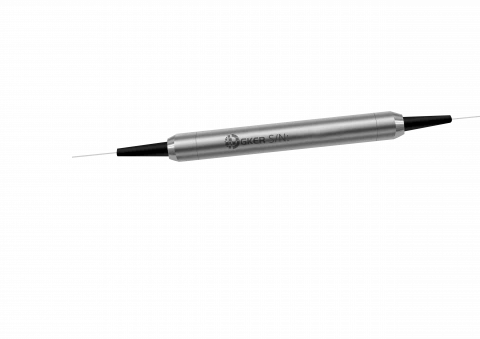

2 µm Polarization Insensitive Isolator (PSSI and PDSI Series)

Name: 2 µm Polarization Insensitive Isolator (PSSI and PDSI Series)
Brand: GKER Photonics
Availability: InStock

Description

The 2 µm Polarization Insensitive Isolator, found within the flagship PSSI and PDSI series, is designed with careful attention to detail and adheres to Telcordia standards. Our unique manufacturing process, coupled with an epoxy-free optical path design, improves its power handling capabilities, making it the ideal choice for demanding applications in 2 µm laser systems.

Designed to meet the rigorous demands of modern laser technology, this isolator offers exceptional performance across various parameters. Its high isolation and low insertion loss ensure efficient signal transmission with minimal signal degradation, while its polarization insensitivity guarantees consistent performance across all polarization states. With robust construction and unparalleled reliability, this isolator provides long-term stability and durability, even in the harshest environments.

Whether integrated into research laboratories, telecommunications networks, industrial manufacturing processes, or medical equipment, the 2 µm Polarization Insensitive Isolator delivers unmatched performance and versatility. Its compatibility with various connector types and fiber jacket options allows for seamless integration into diverse systems, while its wide temperature range ensures reliable operation in any environmental condition.

Specifications

Type Of The Device:	Isolator
Operating Wavelength:	2000 nm
Max Power:	1 W
Min Isolation:	16 dB
Center Wavelength (λc):	2000 nm
Min. Isolation, λc ± 50 Nm, 23 ℃, All Polarization States:	Single Stage:16, Dual Stage: 35 dB
Max. Average Optical Power:	1, 2 W
Max. Peak Power For Ns Pulse:	10 kW

Download Data Sheet

Features

Telcordia Standard Compliance: Designed and manufactured in accordance with Telcordia standards for exceptional quality and reliability
Unique Manufacturing Process: Features a proprietary manufacturing process that enhances power handling capabilities and ensures superior performance
Epoxy-Free Optical Path: Utilizes an epoxy-free optical path design, reducing signal degradation and enhancing overall efficiency
High Performance: Exhibits high isolation and low insertion loss, ensuring efficient signal transmission and minimal signal degradation
Polarization Insensitive: Designed to be insensitive to polarization, ensuring consistent performance across all polarization states
Robust Construction: Constructed with high-quality materials for long-term durability and stability in demanding environments
Single and Dual Stage Configurations: Available in both single stage and dual stage configurations to meet diverse application requirements
Versatile Integration: Compatible with various connector types and fiber jacket options, offering flexibility in integration into different systems
Wide Temperature Range: Operates effectively across a wide temperature range, making it suitable for use in various environmental conditions

Applications

2 µm Laser Systems: Ideal for integration into 2 µm laser systems for research, industrial, and medical applications
Research Laboratories: Used in research laboratories for experimentation and analysis requiring precise signal transmission
Telecommunications Networks: Employed in telecommunications networks for signal amplification and transmission
Industrial Manufacturing: Used in industrial manufacturing processes requiring laser systems for cutting, welding, and material processing
Medical Equipment: Integrated into medical equipment for laser-based surgical procedures and diagnostic applications

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

GKER Photonics

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the center wavelength of the 2 µm Polarization Insensitive Isolator?

The center wavelength of the isolator is 2000 nm.

What is the handling power range of the isolator?

The handling power range varies based on the configuration and can be specified between 1 W to 2 W.

Is the isolator suitable for both single-stage and dual-stage applications?

Yes, the isolator is available in both single-stage (PSSI) and dual-stage (PDSI) configurations to accommodate different application requirements.

What fiber types are compatible with the isolator?

The isolator is compatible with SMF-28 fiber or Nufern SM 1950 fiber, depending on the chosen configuration.

What is the maximum insertion loss of the isolator?

The maximum insertion loss at 23 ℃ and the center wavelength is between 1.3 dB to 1.5 dB, depending on the configuration.

Can the isolator handle high optical power?

Yes, the isolator has a maximum average optical power handling capability of 2000 W and can withstand peak powers for ns pulse applications.

What temperature range does the isolator operate within?

The isolator operates within a temperature range of -5 ℃ to +70 ℃, making it suitable for a wide range of environmental conditions.

What is the typical isolation performance of the isolator?

The isolator provides a minimum isolation of 5 dB at the center wavelength and 23 ℃, across all polarization states.

Can I specify custom requirements for the isolator?

Yes, the isolator can be customized according to specific requirements for wavelength, handling power, connector type, fiber jacket, fiber length, and power type.

What applications are suitable for the 2 µm Polarization Insensitive Isolator?

The isolator is ideal for use in fiber laser systems, amplifiers, test instruments, and other high-power optical applications requiring precision signal isolation and management.
