Description

The 1064nm Polarization Insensitive Isolator from DK Photonics is a high-performance optical component engineered to ensure unidirectional light transmission in fiber optic systems. Utilizing the Faraday Effect in a magneto-optical crystal, this isolator effectively suppresses back reflections and back scattering, regardless of the polarization state of the incoming light. This makes it an essential device for maintaining signal integrity and protecting sensitive optical components in advanced photonic applications.

Designed with an optical path that is epoxy-free, the isolator offers enhanced reliability and superior high-power handling capabilities. Its robust construction results in low insertion loss and high isolation, ensuring minimal signal attenuation and maximum protection against unwanted feedback. The device also exhibits low polarization dependent loss (PDL) and polarization mode dispersion (PMD), which are critical for maintaining signal quality in demanding environments. Additionally, its excellent temperature stability ensures consistent performance across a wide range of operating conditions.

This 1064nm isolator is widely adopted in applications such as Erbium-Doped Fiber Amplifiers (EDFAs), Raman amplifiers, Dense Wavelength Division Multiplexing (DWDM) systems, fiber lasers, and optical transmitters. Its versatility and reliability make it a preferred choice for both laboratory research and industrial deployment. The isolator’s design accommodates customization, allowing for tailored solutions to meet specific wavelength, power handling, or fiber pigtail requirements.

Engineered to meet the rigorous demands of modern optical communication systems, the DK Photonics 1064nm Polarization Insensitive Isolator stands out for its combination of performance, durability, and adaptability. Whether integrated into high-power laser setups or complex WDM networks, it delivers dependable isolation and protection, supporting the advancement of next-generation photonic technologies.

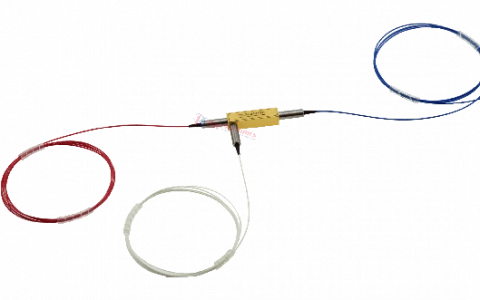

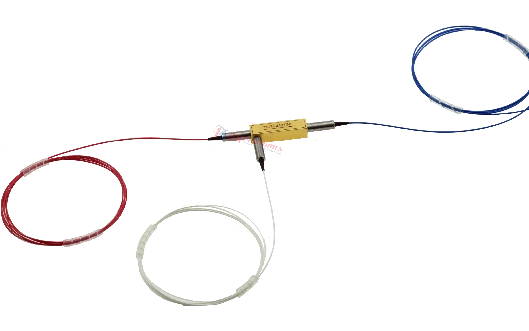

1064 -1080 nm Polarization Insensitive Optical Circulator

Specifications

Type Of The Device: Circulator
Operating Wavelength: 1064 nm
Max Power: 0.2 W
Min Isolation: 45 dB
Bandwidth: +/-5nm
Maximum Power Handling (CW): 200, 100 (model dependent) W
Max. Tensile Load: 5 N
Fiber Type: 1060-XP
Operating Temperature: 0 to + 65 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: Optimized for 1064nm applications, ensuring compatibility with common fiber laser and amplifier systems.
  • Polarization Insensitive: Maintains performance regardless of input polarization state, ideal for diverse optical setups.
  • Low Insertion Loss: Minimizes signal attenuation, enhancing overall system efficiency.
  • High Isolation: Effectively suppresses back reflection and back scattering, protecting sensitive components and improving signal integrity.
  • Optical Path Epoxy-Free Design: Increases high-power handling capability and long-term reliability.
  • Low Polarization Dependent Loss (PDL) & Low Polarization Mode Dispersion (PMD): Ensures stable and consistent performance in demanding environments.
  • Excellent Temperature Stability: Maintains optimal performance across a wide temperature range, suitable for various operating conditions.
  • High Return Loss: Reduces unwanted reflections, further protecting upstream components.
  • Compact and Robust Package: Space-saving design suitable for integration into complex optical systems.
  • Customizable Options: Available with a variety of fiber pigtails, connectors, and power handling capabilities to meet specific application requirements.
  • High Reliability: Manufactured with stringent quality controls for consistent, long-term operation.
  • Wide Application Range: Ideal for use in WDM systems, fiber amplifiers (EDFA, Raman), fiber lasers, transmitters, and other fiber optic communication equipment.
  • Compliant with Industry Standards: Designed to meet or exceed international performance and reliability standards.

Applications

  • Erbium-Doped Fiber Amplifiers (EDFAs): Suppression of back reflections and backscattering to enhance amplifier performance and stability.
  • Raman Fiber Amplifiers: Prevention of unwanted feedback and noise, ensuring high signal integrity in Raman amplification systems.
  • DWDM (Dense Wavelength Division Multiplexing) Systems: Isolation of optical channels to minimize crosstalk and improve overall system reliability.
  • Fiber Lasers: Protection of laser sources from destabilizing back reflections, enabling stable and efficient laser operation.
  • Optical Transmitters: Elimination of back reflections to maintain signal quality and reduce noise in transmitter modules.
  • Optical Communication Networks: Enhancement of signal transmission quality by preventing reverse light propagation in fiber optic links.
  • Test and Measurement Equipment: Ensuring accurate measurements by isolating sensitive optical components from reflected signals.
  • Optical Sensing Systems: Improvement of sensor accuracy and reliability by minimizing interference from backscattered light.
  • Quantum Communication: Protection of quantum channels from noise and feedback, supporting secure and stable quantum key distribution.
  • Medical and Industrial Laser Systems: Safeguarding high-precision laser equipment from optical feedback, enhancing operational safety and performance.
  • Research and Development Laboratories: Versatile use in experimental setups requiring high isolation and low insertion loss for advanced optical research.
  • Optical Circulators and Rotators Integration: Utilization in systems where circulators or rotators are needed for routing or polarization control in fiber optic networks.

Frequently Asked Questions

What is a 1064nm Polarization Insensitive Isolator and how does it work?
A 1064nm Polarization Insensitive Isolator is an optical device designed to allow light to pass in one direction while blocking it in the reverse direction, regardless of the light's polarization state. It utilizes the Faraday Effect in a magneto-optical crystal to achieve this non-reciprocal behavior, effectively eliminating back reflection and back scattering in fiber optic systems.
What are the key features of the DK Photonics 1064nm Polarization Insensitive Isolator?
The DK Photonics 1064nm Polarization Insensitive Isolator features low insertion loss, high isolation, optical path epoxy-free design, low polarization dependent loss (PDL) and polarization mode dispersion (PMD), high reliability, and excellent temperature stability. These features make it suitable for demanding fiber optic applications.
What applications are suitable for the 1064nm Polarization Insensitive Isolator?
This isolator is widely used in Erbium-Doped Fiber Amplifiers (EDFAs), Raman amplifiers, Dense Wavelength Division Multiplexing (DWDM) systems, fiber lasers, transmitters, and other fiber optic communication equipment to suppress back reflection and back scattering.
What is the maximum recommended power handling for the 1064nm Polarization Insensitive Isolator?
For the standard 1064nm Polarization Insensitive Isolator, it is recommended to use an average power of less than 200mW for single-stage devices and less than 100mW for dual-stage devices. For higher power requirements, DK Photonics offers a 1064nm TGG High Power Isolator.
How does the presence of connectors affect the isolator's performance?
When connectors are added to the isolator, the insertion loss (IL) increases by 0.3dB and the return loss (RL) decreases by 5dB compared to devices without connectors. For optimal performance, it is recommended to specify your connector requirements when ordering.
Can the 1064nm Polarization Insensitive Isolator be customized for specific requirements?
Yes, DK Photonics offers customization for their isolators, including custom fiber pigtails, different operating wavelengths, and specific power handling capabilities. Customers are encouraged to provide detailed specifications when inquiring to ensure the product meets their needs.
What should I consider when using the isolator in pulsed laser applications?
If you plan to use the isolator in pulsed laser applications, it is important to inform DK Photonics of the pulse energy and peak power. This ensures the isolator is properly specified to handle the unique demands of pulsed operation and prevents potential damage.

Got more questions? Use the inquiry form to ask the supplier directly.
