Description

The Polarization Maintaining Fiber Switch from OZ Optics is engineered to deliver superior performance in advanced optical networks and precision test instrumentation. Designed with high-quality polarization maintaining (PM) fiber, this switch ensures the preservation of polarization to better than 20dB on both channels, making it a reliable choice for applications where maintaining the integrity of the optical signal is critical. With insertion losses as low as 0.6dB in low-loss versions, this switch stands out for its efficiency and minimal signal degradation, even after millions of switching cycles.

This fiber optic switch is available in both latching and non-latching configurations, providing flexibility to suit a variety of system requirements. Its robust switching mechanism has been rigorously tested for durability and repeatability, ensuring consistent performance over extended operational lifetimes. The device supports standard operating wavelengths from 1510 to 1610 nm, with custom wavelength options available upon request, catering to diverse network and instrumentation needs.

The use of PM fiber in this switch effectively eliminates polarization mode dispersion (PMD) and polarization dependent loss (PDL) issues, which are common challenges in high-speed optical communication systems. This makes the switch particularly suitable for next-generation optical networks, optical add/drop multiplexing systems, and precision test setups that require stable and accurate polarization management. Additionally, singlemode fiber versions are available, broadening the range of compatible applications.

With a return loss of less than -55dB and repeatability within ±0.05dB, the Polarization Maintaining Fiber Switch offers exceptional signal fidelity and reliability. Its compatibility with a wide range of fiber core/cladding sizes and connector types ensures seamless integration into existing infrastructures. Whether deployed in research laboratories, telecommunications networks, or manufacturing test environments, this switch delivers the performance and dependability demanded by today’s optical technologies.

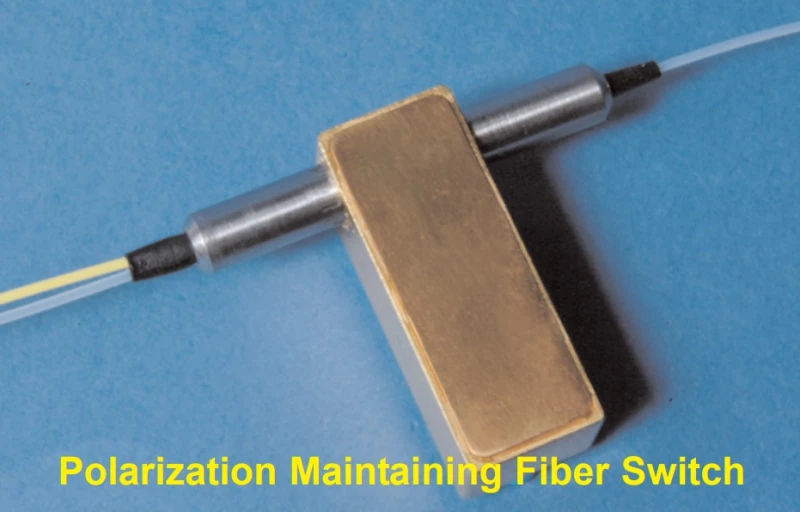

Polarization Maintaining Fiber Switch

Specifications

Number Of Ports: 2 – 2
Wavelength Range: 1510 – 1610 nm
Insertion Loss (typical): 0.6 dB
Return Loss: -55 dB
Insertion Loss: <=0.6 dB (LL version), <=0.8 dB (Standard)
Wavelength Dependent Loss: <=0.25 dB
Polarization Extinction Ratio: >20 dB (both channels)
Return Loss: < -55 dB
Repeatability: <= ±0.05 dB
Drive Voltage: 5 V
Durability: Millions of cycles
Fiber Core/Cladding Sizes: 9/125, 8/125, 7/125 microns
Fiber Length: 1 meter (standard)
Fiber Jacket Type: 0.25 = 250 micron OD acrylate, 1 = 900 micron OD hytrel

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Superior Polarization Maintenance: Maintains polarization to better than 20dB on both channels, ensuring high signal integrity for demanding applications.
  • Ultra-Low Insertion Loss: Offers insertion loss as low as 0.6dB (low loss version) and 0.8dB (standard), minimizing signal degradation.
  • Exceptional Repeatability: Delivers repeatability of ≤ ±0.05dB, guaranteeing consistent performance over millions of switching cycles.
  • High Return Loss: Provides return loss of < -55dB, reducing back reflections and enhancing overall system performance.
  • Reliable and Durable Switching: Features a robust switching mechanism tested for millions of cycles without performance loss, ensuring long-term reliability.
  • Latching and Non-Latching Versions: Available in both latching and non-latching configurations to suit various system requirements.
  • Low Wavelength Dependent Loss: Wavelength dependent loss of ≤0.25dB, supporting stable operation across a wide wavelength range (1510–1610 nm standard; other wavelengths available).
  • Versatile Fiber Compatibility: Supports both polarization maintaining (PM) and singlemode fiber types, with multiple core/cladding size options (e.g., 8/125, 9/125, 7/125 microns).
  • Wide Connector Options: Compatible with a variety of industry-standard connectors including FC/PC, FC/APC, LC, SC, and SC/APC for seamless integration.
  • Cost-Effective Solution: Delivers high performance at a competitive price point, making it ideal for both R&D and production environments.
  • Flexible Fiber Lengths and Jacket Types: Customizable fiber lengths and jacket types (250μm acrylate, 900μm hytrel) to meet specific installation needs.
  • Ideal for Advanced Applications: Perfect for polarization maintaining optical networks, optical add/drop systems, and precision test instruments.
  • Minimized PMD and PDL: Use of PM fiber eliminates polarization mode dispersion (PMD) and polarization dependent loss (PDL) issues, supporting high-speed network performance.
  • Standard and Custom Wavelengths: Standard operating range of 1510–1610 nm, with custom wavelengths available upon request.
  • Easy Integration: 5V drive voltage and standardized form factor for straightforward system integration.

Applications

  • Polarization Maintaining Optical Networks: Essential for advanced optical communication systems where maintaining the state of polarization is critical for signal integrity and minimizing polarization mode dispersion (PMD) and polarization dependent loss (PDL).
  • Optical Add/Drop Multiplexing (OADM) Systems: Enables dynamic routing and switching of specific wavelength channels in dense wavelength division multiplexing (DWDM) networks while preserving polarization.
  • Test and Measurement Instruments: Ideal for use in optical test equipment that requires precise polarization control, such as polarization extinction ratio (PER) testers, optical spectrum analyzers, and interferometers.
  • Quantum Communication and Quantum Key Distribution (QKD): Maintains polarization states necessary for secure quantum communication protocols and entanglement-based experiments.
  • Fiber Optic Sensing Systems: Used in distributed and point fiber optic sensors (e.g., gyroscopes, current sensors) where polarization fidelity is crucial for accurate measurements.
  • Coherent Optical Transmission Systems: Supports high-speed coherent transmission by preserving polarization, which is vital for advanced modulation formats and signal demodulation.
  • Polarization Sensitive Imaging: Applied in biomedical imaging, remote sensing, and industrial inspection systems that rely on polarization information for enhanced contrast and analysis.
  • Research and Development Laboratories: Facilitates experiments in photonics, fiber optics, and polarization-related studies by providing reliable polarization maintaining switching.
  • Optical Signal Routing and Protection: Used in network protection schemes and dynamic reconfiguration of optical paths while ensuring polarization integrity.
  • Laser Delivery Systems: Maintains polarization in high-power laser delivery applications, including material processing and medical laser systems.

Frequently Asked Questions

What is a polarization maintaining fiber optic switch?
A polarization maintaining (PM) fiber optic switch is a device designed to route optical signals while preserving the polarization state of light. It uses PM fiber to ensure that the polarization extinction ratio remains better than 20dB, making it ideal for applications where maintaining polarization is critical, such as high-speed optical networks and test instruments.
What are the main features of the OZ Optics polarization maintaining fiber optic switch?
The OZ Optics PM fiber optic switch offers polarization extinction ratios greater than 20dB, low insertion losses (as low as 0.6dB for low-loss versions), reliable switching mechanisms, latching and non-latching options, and high durability with millions of switching cycles. It is also available in both polarization maintaining and singlemode fiber versions.
What applications are suitable for polarization maintaining fiber optic switches?
Polarization maintaining fiber optic switches are ideal for polarization maintaining optical networks, optical add/drop systems, and test instruments that require precise polarization control. They are particularly useful in next-generation high-speed networks to eliminate polarization mode dispersion (PMD) and polarization dependent loss (PDL) issues.
What is the insertion loss and polarization extinction ratio of this fiber optic switch?
The OZ Optics PM fiber optic switch features an insertion loss of ≤0.6dB for low-loss versions and ≤0.8dB for standard versions. The polarization extinction ratio is greater than 20dB on both channels, ensuring excellent polarization maintenance.
What is the difference between latching and non-latching fiber optic switches?
Latching fiber optic switches maintain their last switched state even when power is removed, making them ideal for applications where power interruptions may occur. Non-latching switches return to a default state when power is lost. Both types are available in the OZ Optics product line.
What connector and fiber options are available for the OZ Optics PM fiber optic switch?
The switch supports a variety of fiber core/cladding sizes, including 9/125 for singlemode and 8/125 or 7/125 for PM fibers. Connector options include Super NTT-FC/PC, Ultra NTT-FC/PC, Angled NTT-FC/PC, LC, SC, and Angled SC, with other connectors available upon request.
How reliable is the OZ Optics polarization maintaining fiber optic switch?
The switch is highly reliable, having been tested over millions of switching cycles with no significant change in insertion loss or polarization performance. This makes it suitable for demanding applications in optical networks and test environments.

Got more questions? Use the inquiry form to ask the supplier directly.
