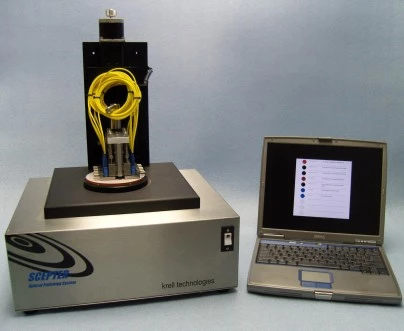

Scepter Fiber Optic Polisher
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
Scepter™ Automated Connector Polishing System is a cutting-edge solution designed for precision optical polishing. This advanced system is engineered to deliver exceptional performance, ensuring that every connector achieves the highest standards of polish quality. With its state-of-the-art technology, the Scepter™ system is ideal for professionals seeking reliable and efficient polishing results.
The Scepter™ system is equipped with an External PC Control with Microfeed™, allowing users to have complete control over the polishing process. This feature ensures that all polishing parameters, including cycle time, pressure, and speed settings, can be easily adjusted to meet the specific requirements of any connector type. The intuitive user interface simplifies the creation of polishing programs, making it accessible for users of all experience levels.
One of the standout features of the Scepter™ system is its Independent Suspension Workholders. Each connector position is equipped with independent suspension, ensuring controlled pressure and uniform contact with the polishing surface. This innovative design allows for air polishing, which maximizes the life of the polishing film and ensures consistent results. The optical alignment at each position guarantees optimal polish geometry, enhancing the overall quality of the polish.
Designed to support all industry standard and MIL-spec connectors/termini, the Scepter™ system is versatile and adaptable to a wide range of applications. Its compliance with Telcordia standards further underscores its reliability and performance. Whether you are working with UPC or APC connectors, the Scepter™ system delivers outstanding optical performance, with minimal back reflection and insertion loss.
With its programmable polishing pressure and speed, the Scepter™ system offers unparalleled flexibility and precision. The random orbital polishing motion ensures even and consistent results, while the program-selectable cycling timing allows for customization based on specific needs. The system's ability to polish up to 12 connectors simultaneously makes it an efficient choice for high-volume operations.
Overall, the Scepter™ Automated Connector Polishing System is a powerful tool for achieving superior polish quality. Its combination of advanced features and user-friendly design makes it an essential asset for any professional seeking to enhance their optical polishing capabilities.
Scepter Fiber Optic Polisher
Specifications |
|
|---|---|
| Fiber Diameter Range: | 1 – 1 um |
| Objects Polished: | Fiber Connectors |
| Inspection Options: | Real-Time Polishing Inspection, In-Line Surface Inspection |
| Apex Offset: | <50 microns, maximum |
| Apex Offset: | <15 microns, typical |
| Radius Of Curvature: | 10-25 mm, 2.5 mm ferrules |
| Radius Of Curvature: | 7-20 mm, 1.25 mm ferrules |
| Radius Of Curvature: | 5-12 mm, APC ferrules |
| Undercut/Protrusion: | 0 to -50 nm |
| Back Reflection: | < -60 dB, UPC |
| Back Reflection: | < -65 dB, APC |
| Insertion Loss: | < 0.25 dB, typical |
| Connector Capacity: | Up to 12 connectors |
| Process Time: | Approximately 30 sec/connector |
| Polishing Pressure: | Programmable, sub-micron, automated, linear displacement |
| Polishing Motion: | Random orbital |
Features
- Precision Optical Polishing: Achieve superior polishing results with precision control, meeting and exceeding Telcordia specifications.
- External PC Control with Microfeed™: Utilize advanced PC control for precise adjustments and enhanced polishing accuracy.
- Independent Suspension Workholders: Each connector position features Independent Suspension (IS) for controlled pressure and uniform contact, maximizing film life and ensuring optimal polish geometry.
- Supports All Industry Standard and MIL-Spec Connectors/Termini: Compatible with a wide range of connectors, including custom designs.
- Air Polishing in Machine: Incorporates air polishing to enhance performance and extend the life of polishing films.
- Telcordia Compliant: Meets industry standards for reliability and performance.
- Intuitive User Interface: Easily create polishing programs with adjustable cycle time, pressure, and speed settings for all connector types and desired surface geometries.
Applications
- Fiber Optic Manufacturing: Delivers reliable and consistent connector polishing for high-volume production.
- Telecommunication Networks: Provides Telcordia-compliant finishes for superior network performance.
- Military and Aerospace Systems: Supports MIL-spec connectors for mission-critical optical systems.
- Research and Development: Enables programmable polishing configurations for custom optical experiments.
Frequently Asked Questions
The Scepter Fiber Optic Polisher is used for consistent and Telcordia compliant mass polishing of optical connectors and bare fiber.
The Scepter Fiber Optic Polisher incorporates Krell's unique independent suspension and optical alignment design for uniform polishing at each connector position.
Yes, various polishing procedures can be easily programmed for all connector types and surface finishes.
Yes, the Scepter Fiber Optic Polisher has in-line video inspection capabilities to streamline production and minimize component handling.
The Scepter Fiber Optic Polisher has a back reflection of less than -60 dB, UPC of less than -65 dB, and insertion loss of less than 0.25 dB.
