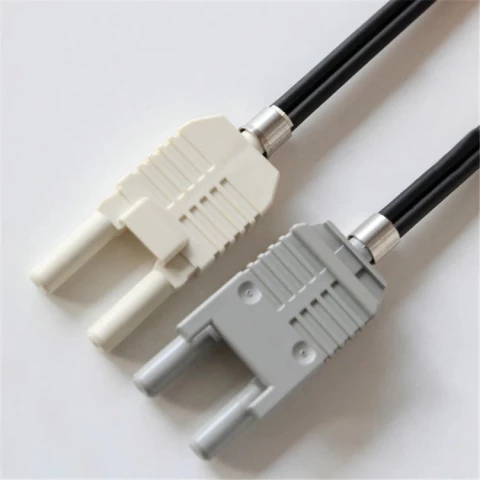

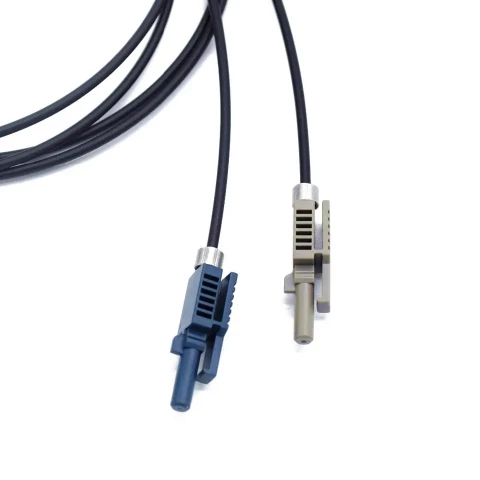

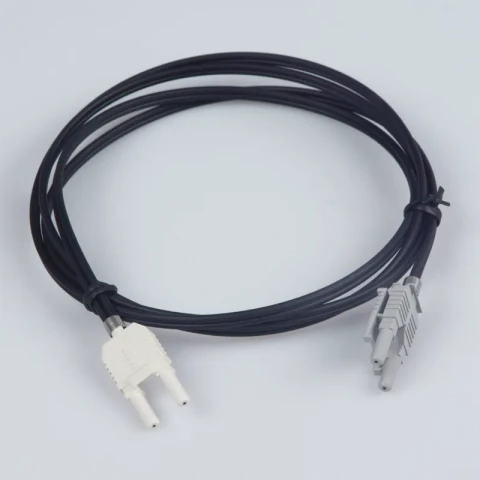

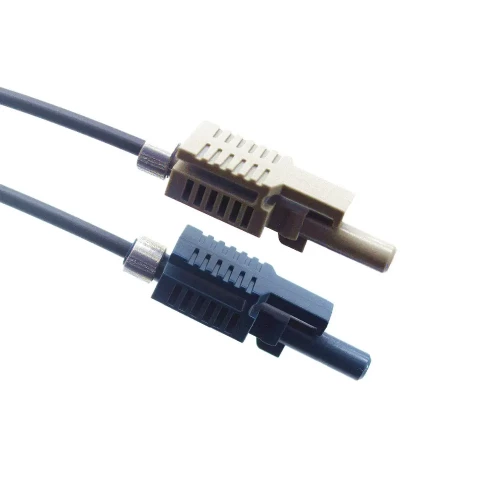

AVAGO Original Plastic Fiber Optic Patch Cord HFBR-4503/4513z HFBR-4506/45136Z anti-flaming 0.5 to 15M cable

Yangzhou RSPOF Technology Co., Ltd.

Specifications

Wavelength Range: 10 – 15 nm
Cable Length: 1 m
Fiber Core Material: Polymethyl Methacrylate (PMMA)
Model Number: HFBR-4503Z HFBR-4513Z cable
Number Of Conductors: 1
Length: 0.5m/1m/2m/5m/customized
Package: 1pcs/polybag
NA: 0.5
Fiber Diameter: 1mm
Document icon Download Data Sheet Download icon

Features

Detailed product description



  • Fiber core diameter:Φ1.0mm

  • Finished product diameter :Φ2.2mm

  • Outer jacket:PE

  • Outer color:Black

  • Attenuation:<180dB/km

  • Working temperature:-55°C-+85°C

  • Standard length:1m, 0.1-80m accept customized

  • Quality standard: ROHS

Applications


  • Industrial Data Links for Factory Automation and Plant Control

  • Intra-System Links; Boardto-Board, Rack-to-Rack

  • Telecommunications Switching Systems

  • Computer-to-Peripheral Data Links, PC Bus Extension

  • Proprietary LANs

  • Digitized Video

  • Medical Instruments

  • Reduction of Lightning and Voltage Transient Susceptibility

  • High Voltage Isolation
