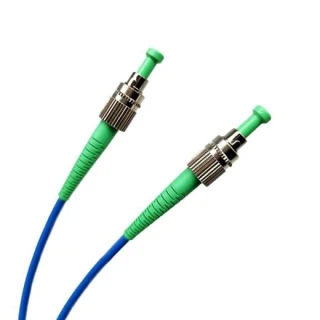

Thumbnail of Polarization Maintaining Fiber Optic Patch Cord PM780-HP FC/APC-FC/APC 3m Long photo 1
Thumbnail of Polarization Maintaining Fiber Optic Patch Cord PM780-HP FC/APC-FC/APC 3m Long photo 2

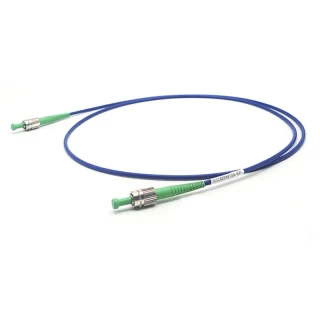

Thumbnail of Polarization Maintaining Fiber Optic Patch Cord PM780-HP FC/APC-FC/APC 3m Long photo 3

Description

The Polarization Maintaining Fiber Optic Patch Cord PM780-HP FC/APC-FC/APC with a PM780-HP (770-1100nm) fiber type and 3m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Polarization Maintaining Fiber Optic Patch Cord PM780-HP FC/APC-FC/APC 3m Long

Visit the SHANGHAI TARLUZ TELECOM TECH CO LTD Store

Specifications

Insertion Loss: 0.7 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 22 dB
Wavelength Range: 770 – 1100 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Return Loss (dB) APC: 60
Cord Length (m): 3
Storage Temperature (°C): -40 to +85
Operation Temperature (°C): 0 to +70
Fiber Type: PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Connector Key For FC Type: Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)

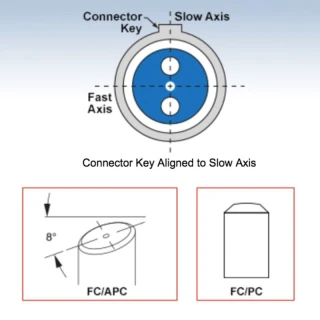

Axis Alignment: Slow axis of fiber aligned to connector key (in default)
Extinction Ratio (dB) Typ.: 22, 24, 25
Extinction Ratio (dB) Min.: 20, 22, 23
Connector Type: FC, SC, LC
Return Loss (dB) UPC: 50
Insertion Loss (dB) Typ.: 0.7, 0.5, 0.3
Insertion Loss (dB) Max.: 1.0, 0.7, 0.5
Mode Field Diameters (um): 5.3±1.0@850nm, 6.6±0.5@980nm, 6.6±0.5@980nm, 9.3±0.5@1300nm, 10.1±0.4@1550nm, 8.6@1950nm
Cutoff Wavelength (nm): 710± 60, 920± 50, 920± 50, 1210± 60, 1380± 60, 1720± 80
Model Based Wavelength Range Options (nm): 770~1100, 970~1550, 970~1550, 1270~1625, 1440~1625, 1850~2200
Model Based Alignment Wavelength (nm): 780, 980, 1064, 1300, 1550, 2000
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-7830LBE/09HBE0030M
FindLight SKU: FL-24335

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

  • Coherent Optical Communications: Used in coherent transmission systems where stable polarization is required for high-speed, long-distance optical signal transmission.
  • Fiber Optic Interferometers: Ideal for interferometric systems that require precise polarization control, including Mach-Zehnder, Michelson, and Sagnac interferometers.
  • Fiber Optic Sensing Systems: Suitable for polarization-sensitive fiber sensors used in strain, temperature, pressure, acoustic, vibration, and current sensing applications.
  • Fiber Optic Gyroscopes: Used in fiber optic gyroscope systems to maintain polarization stability and improve measurement accuracy in navigation and inertial sensing.
  • EDFA and Optical Amplifier Systems: Applied in erbium-doped fiber amplifiers and other optical amplifier modules where polarization maintaining fiber connections are required.
  • External Optical Modulators: Commonly used with LiNbO₃ modulators, phase modulators, intensity modulators, and electro-optic modulators requiring well-defined input polarization.
  • Integrated Optics and Photonic Circuits: Supports coupling into integrated optical devices, planar lightwave circuits, silicon photonics, and polarization-sensitive photonic components.
  • High-Speed Optical Transmission Devices: Suitable for high-speed fiber optic communication equipment, optical transmitters, receivers, and test platforms requiring stable polarization performance.
  • Optical Switching Systems: Used in polarization-sensitive optical switches, fiber optic switching modules, and optical routing systems.
  • Laser Diode and Fiber Laser Systems: Provides stable polarization delivery for diode lasers, fiber lasers, seed lasers, ultrafast lasers, and narrow-linewidth laser systems.
  • Quantum Optics and Quantum Communication: Used in quantum key distribution, single-photon experiments, polarization-entangled photon systems, and precision quantum measurement setups.
  • Polarization Maintaining Fiber Coupling: Designed for connecting PM fiber components while preserving the slow-axis or fast-axis alignment through the connector key.
  • Optical Test and Measurement: Suitable for laboratory test benches, optical component characterization, polarization extinction ratio testing, return loss testing, and insertion loss measurement.
  • Biomedical and Life Science Instrumentation: Used in polarization-sensitive biomedical imaging systems, optical coherence tomography, spectroscopy, and laser-based diagnostic equipment.
  • Telecommunications Research and Development: Applied in R&D environments for next-generation optical networks, coherent modulation formats, and advanced fiber communication systems.
  • Microwave Photonics: Used in RF-over-fiber systems, photonic signal processing, optical links for antennas, and polarization-sensitive microwave photonic modules.
  • Precision Metrology: Suitable for high-accuracy optical measurement systems, frequency stabilization setups, optical clocks, and phase-sensitive metrology equipment.
  • Spectroscopy Systems: Used in laser spectroscopy, absorption spectroscopy, Raman spectroscopy, and other optical analysis systems where polarization control enhances measurement stability.
  • Defense, Aerospace, and Navigation Systems: Applied in ruggedized optical systems, inertial navigation, avionics, remote sensing, and high-reliability fiber optic assemblies.
  • University, Laboratory, and OEM Photonics Platforms: Ideal for OEM integration, prototyping, and research systems requiring low insertion loss, high return loss, and high extinction ratio PM fiber patch cords.

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining fiber optic patch cord?
A polarization maintaining fiber optic patch cord is a fiber cable designed to preserve the linear polarization state of light as it travels through the fiber. This PM patch cord uses PANDA polarization maintaining fiber and is suitable for applications such as coherent optical communications, EDFAs, external modulators, interferometric sensors, integrated optics, switching, and high-speed transmission systems.
What wavelengths are available for this PM fiber patch cord?
This polarization maintaining patch cord is available for multiple alignment wavelengths including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. The supported operating wavelength ranges span from 350–460 nm for UV/visible applications up to 1850–2200 nm for 2 µm systems.
What connector types and polishing options are supported?
The PM patch cord can be terminated with common fiber optic connectors including FC, SC, and LC, with other connector types such as ST, MU, MPO, and MTP available by request. Polishing options include UPC/PC and APC. For FC connectors, both narrow key and wide key options are available, supporting precise polarization axis alignment.
What insertion loss and extinction ratio does this polarization maintaining patch cord provide?
The insertion loss depends on the operating wavelength. Typical insertion loss ranges from about 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. The extinction ratio is also wavelength dependent, with typical values from 17 dB at 375/405 nm up to 25 dB at 1300 nm, 1550 nm, and 2000 nm.
Can the slow axis or fast axis be aligned to the connector key?
Yes. By default, the slow axis of the PM fiber is aligned to the connector key. The fast axis can also be aligned to the connector key upon request. This is important when integrating the patch cord into polarization-sensitive optical systems such as modulators, interferometers, coherent receivers, and PM fiber amplifiers.
What fiber and cable jacket options are available for this PM patch cable?
The patch cord is manufactured with PM PANDA fiber from suppliers such as Nufern, Corning, Fujikura, YOFC, or other specified fiber brands. Cable formats include 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, and armored cable, allowing the assembly to be configured for laboratory, OEM, or field use.
What are the optical power rating and operating temperature range?
The maximum optical power rating is 300 mW. The operating temperature range is 0°C to +70°C, and the storage temperature range is -40°C to +85°C. These ratings make the PM patch cord suitable for many laboratory, telecom, sensing, and photonics integration environments.

Got more questions? Use the inquiry form to ask the supplier directly.
