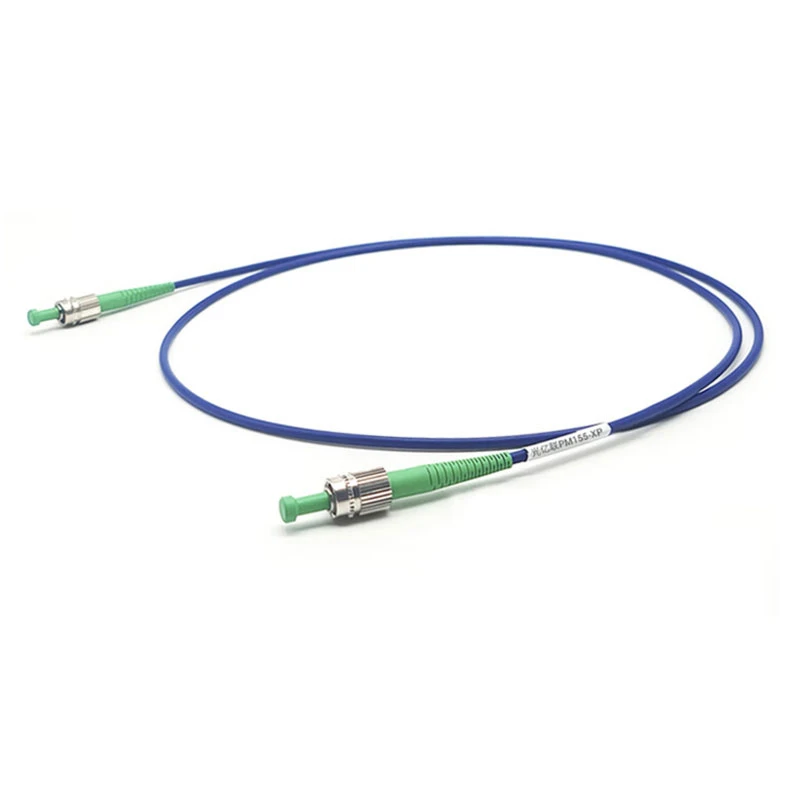

Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC 5m Long

• High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
• Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
• High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.

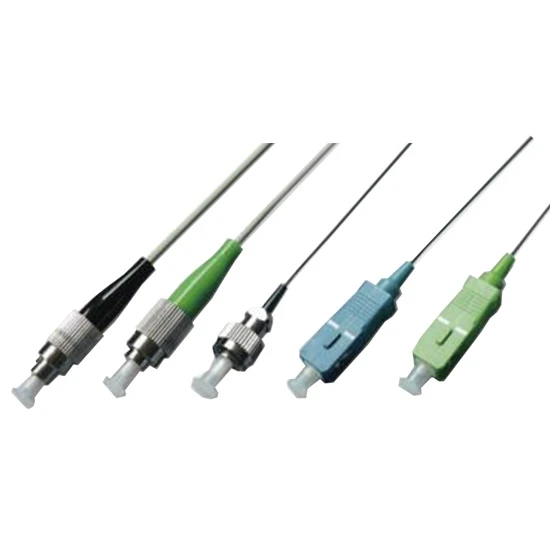

• Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.

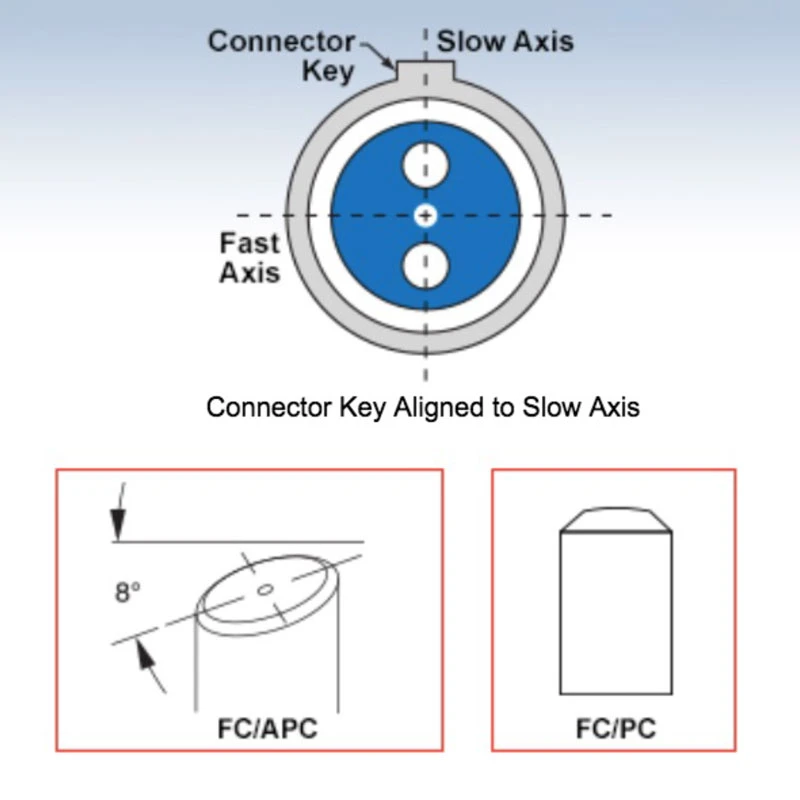

• Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
• Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
• Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
• High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
• Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
• Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications of Polarization Maintaining Patch Cords

• Coherent Optical Communications: Ideal for coherent transmission systems where stable polarization is required for high-speed, long-distance fiber optic signal integrity.
• High-Speed Optical Transmission Systems: Used in advanced fiber optic networks, high-data-rate transmission devices, and telecom test platforms requiring low insertion loss and high extinction ratio.
• EDFA Fiber Amplifier Systems: Suitable for erbium-doped fiber amplifiers and optical amplifier modules that require precise polarization control and stable optical performance.
• Fiber Optic Switching Systems: Applied in optical switches, polarization-sensitive switching modules, and reconfigurable optical network equipment.
• External Optical Modulators: Commonly used with lithium niobate modulators, phase modulators, intensity modulators, and other polarization-sensitive modulation devices.
• Interferometric Fiber Optic Sensors: Supports interferometric sensing systems, including fiber optic gyroscopes, acoustic sensors, current sensors, and precision measurement instruments.
• Fiber Optic Gyroscopes: Used in navigation, aerospace, defense, and inertial sensing systems where stable polarization-maintaining fiber connectivity is critical.
• Integrated Optics and Photonic Circuits: Suitable for coupling light into integrated optical devices, photonic chips, waveguides, and polarization-sensitive optical components.
• Laser Diode and Fiber Laser Systems: Used for connecting polarization-sensitive laser sources, PM fiber lasers, seed lasers, pump lasers, and laser delivery systems.
• Quantum Optics and Quantum Communication: Applicable in quantum key distribution, entangled photon experiments, single-photon systems, and research setups requiring polarization stability.
• Optical Test and Measurement: Used in laboratories and production environments with optical spectrum analyzers, polarization analyzers, interferometers, power meters, and component test benches.
• Polarization-Sensitive Instrumentation: Ideal for instruments that depend on stable polarization states, including polarization controllers, polarimeters, and optical coherence measurement systems.
• Biomedical and Scientific Laser Systems: Suitable for OCT systems, fluorescence imaging, spectroscopy, microscopy, and other precision optical systems requiring stable beam polarization.
• Telecommunications R&D: Used in development and validation of DWDM systems, coherent transceivers, optical line cards, and next-generation fiber optic communication equipment.
• RF Photonics and Microwave Photonics: Supports RF-over-fiber links, photonic signal processing, analog optical links, and microwave photonic systems where polarization stability improves signal quality.
• Fiber Coupled Optical Components: Used to connect PM couplers, PM isolators, PM circulators, PM WDMs, PM splitters, PM collimators, and other polarization maintaining components.
• Precision Laboratory Research: Suitable for universities, photonics labs, and research institutes working with polarization-maintaining panda fiber, low-loss fiber coupling, and stable optical signal delivery.
• Visible, NIR, and Telecom Wavelength Systems: Applicable across UV-visible, near-infrared, 1300 nm, 1550 nm, and 2000 nm optical systems depending on the selected PM fiber and alignment wavelength.
• Aerospace and Defense Photonics: Used in ruggedized optical sensing, laser communication, navigation, targeting, and mission-critical systems requiring high return loss and stable polarization performance.
• OEM Photonics Integration: Ideal for integration into optical modules, laser instruments, sensing equipment, communication devices, and custom fiber optic assemblies requiring FC, SC, LC, ST, MU, MPO, or MTP connector options.
