Description

The Polarization Maintaining Fiber Optic Patch Cord PM460-HP FC/APC-FC/APC with a PM460-HP (460-700nm) fiber type and 2m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Polarization Maintaining Fiber Optic Patch Cord PM460-HP FC/APC-FC/APC 2m Long

Specifications

Insertion Loss: 1.2 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 20 dB
Wavelength Range: 460 – 700 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Return Loss (dB) APC: 60
Cord Length (m): 2
Storage Temperature (°C): -40 to +85
Operation Temperature (°C): 0 to +70
Fiber Type: PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Connector Key For FC Type: Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)
Max. Optical Power (mW): 300
Extinction Ratio (dB) Typ.: 17, 17, 20, 22
Extinction Ratio (dB) Min.: 15, 15, 18, 20
Connector Type: FC, SC, LC
Return Loss (dB) UPC: 50
Insertion Loss (dB) Typ.: 1.2, 1.2, 1.2, 1.0
Insertion Loss (dB) Max.: 1.5, 1.5, 1.5, 1.2
Numeric Aperture: 0.12
Mode Field Diameters (um): 2.3@350nm, 3.3±0.5@405nm, 3.3±0.5@515nm, 4.5±0.5@630nm
Cutoff Wavelength (nm): 315±25, 380±20, 410±40, 570±50
Model Based Wavelength Range Options (nm): 350~460, 400~680, 460~700, 620~950
Model Based Alignment Wavelength (nm): 375, 405, 460, 630
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-4630LBE/09HBE0020M
FindLight SKU: FL-24326

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications of Polarization Maintaining Patch Cords

  • Coherent Optical Communications: Maintains stable polarization for coherent transmission systems, optical receivers, transmitters, and high-capacity fiber optic networks.
  • High-Speed Optical Transmission: Ideal for high-speed data links where polarization stability, low insertion loss, and high extinction ratio are critical.
  • Fiber Optic Sensing Systems: Used in polarization-sensitive fiber sensors, interferometric sensors, current sensors, acoustic sensors, and distributed sensing systems.
  • Fiber Optic Gyroscopes: Supports stable polarization performance in fiber optic gyros used for navigation, aerospace, defense, robotics, and inertial measurement systems.
  • Interferometry: Suitable for Mach-Zehnder, Michelson, Sagnac, and other interferometric systems requiring precise polarization control.
  • External Optical Modulators: Commonly used with LiNbO3 modulators and other polarization-sensitive electro-optic modulators in telecom and RF photonics applications.
  • EDFA and Fiber Amplifier Systems: Used in erbium-doped fiber amplifiers and other optical amplifier modules requiring low-loss, polarization-maintaining fiber connections.
  • Integrated Optics and Photonic Circuits: Provides stable fiber coupling to photonic integrated circuits, waveguides, planar lightwave circuits, and polarization-sensitive optical chips.
  • Laser Diode and Fiber Laser Coupling: Enables reliable connection of polarized laser sources, seed lasers, fiber lasers, and laser diode modules to optical systems.
  • Quantum Optics and Quantum Communication: Supports polarization-stable optical paths for quantum key distribution, single-photon experiments, entangled photon systems, and quantum photonics research.
  • Test and Measurement Equipment: Used in optical test benches, polarization analyzers, optical spectrum analyzers, power meters, interferometers, and laboratory measurement setups.
  • Polarization Control Systems: Suitable for systems requiring accurate alignment of the slow axis or fast axis to connector keys for repeatable polarization performance.
  • Optical Switching Systems: Used in polarization-sensitive optical switches, routing modules, switching matrices, and fiber optic network equipment.
  • Biomedical and Medical Laser Systems: Applied in medical imaging, optical coherence tomography, laser diagnostics, and other biomedical photonics systems requiring polarization stability.
  • Optical Coherence Tomography: Supports polarization-sensitive OCT systems and broadband optical imaging platforms where stable polarization transmission is required.
  • RF Photonics and Microwave Photonics: Used in analog optical links, RF-over-fiber systems, photonic signal processing, and microwave photonic modules.
  • Research and Development Laboratories: Suitable for university, industrial, and government research involving lasers, fiber optics, spectroscopy, interferometry, and precision optical experiments.
  • Polarization-Maintaining Fiber Components: Used for interconnection between PM couplers, PM circulators, PM isolators, PM splitters, PM WDMs, and other PM fiber optic components.
  • Visible, Near-Infrared, and Telecom Wavelength Systems: Supports optical systems operating across UV-visible, visible, 780 nm, 980 nm, 1064 nm, 1310 nm, 1550 nm, and 2000 nm wavelength ranges.
  • Aerospace, Defense, and Avionics Photonics: Suitable for demanding optical systems requiring stable polarization, high return loss, and reliable fiber connectivity.

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining (PM) fiber optic patch cord used for?
A polarization maintaining fiber optic patch cord is used to transmit linearly polarized light while maintaining its polarization state. It is commonly used in coherent optical communications, EDFAs, high-speed transmission systems, external modulators, integrated optics, interferometric sensors, and optical switching applications.
What wavelengths are available for this PM Panda fiber patch cord?
This PM Panda fiber patch cord is available for multiple alignment wavelengths, including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. The supported operating wavelength range depends on the selected fiber, spanning from 350 nm to 2200 nm.
What connector types and polish options are supported?
The patch cord can be supplied with common fiber connector types such as FC, SC, and LC, with other connector options available on request. It supports UPC/PC and APC polishing. For FC connectors, both narrow key and wide key options are available, which is important for accurate PM fiber axis alignment.
What insertion loss and extinction ratio can I expect from this PM fiber patch cable?
Insertion loss depends on the selected wavelength. Typical insertion loss ranges from about 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. The extinction ratio is also wavelength-dependent, with typical values from 17 dB to 25 dB and minimum values from 15 dB to 23 dB.
Is the slow axis or fast axis aligned to the connector key?

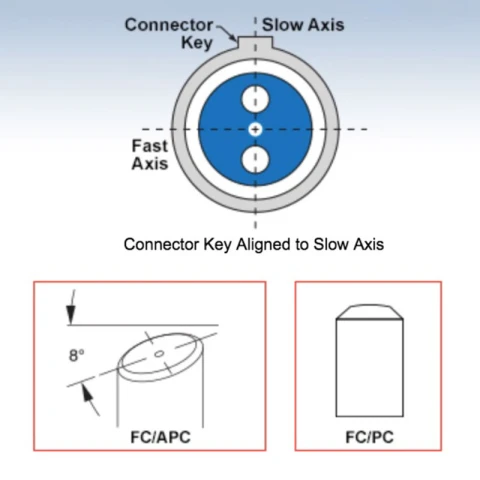

By default, the slow axis of the PM fiber is aligned to the connector key. Fast-axis alignment can also be supplied upon request. Correct axis alignment is critical in polarization-sensitive systems such as modulators, interferometers, fiber lasers, and coherent communication setups.
What cable constructions are available for this polarization maintaining patch cord?
The patch cord can be supplied as 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, or armored cable. This allows the assembly to be configured for lab use, OEM integration, test systems, or more rugged installation environments.
What is the return loss, power handling, and temperature range of the PM patch cord?
The PM patch cord offers high return loss, typically 50 dB for UPC connectors and 60 dB for APC connectors. The maximum optical power handling is 300 mW. The operating temperature range is 0°C to +70°C, and the storage temperature range is -40°C to +85°C.
