Description
The FTIR Bench Top Spectrometer Interspec 200-X is an advanced analytical instrument designed for precise and reliable infrared spectroscopy. This compact yet powerful device is engineered to provide exceptional performance in a variety of laboratory settings, making it an ideal choice for researchers and professionals seeking accurate spectral analysis. With a sleek design and robust construction, the Interspec 200-X is a testament to the commitment to quality and innovation by Interspectrum OU.
At the heart of the Interspec 200-X is its impressive wavelength range, covering both the infrared (IR) and near-infrared (NIR) spectra. This broad range allows for comprehensive analysis and detailed insights into the molecular composition of samples. The spectrometer is equipped with a high-resolution standard of 1 cm-1, with an optional enhanced resolution of 0.5 cm-1, ensuring precise and detailed spectral data.
The Interspec 200-X is designed with user convenience in mind, featuring a Windows-based operating system and a high-speed 18-bit data acquisition system. The USB 2.0 interface ensures seamless connectivity and data transfer, while the compact dimensions and manageable weight of 24 kg make it easy to integrate into any laboratory setup. The spectrometer operates efficiently with a power requirement of just 12 VDC, 30 W, underscoring its energy-efficient design.
With a generously sized sample compartment and a beam diameter of 10 mm at the sample, the Interspec 200-X accommodates a wide range of sample types and sizes, enhancing its versatility. Whether you are conducting routine analyses or complex research, this spectrometer offers the reliability and precision needed to achieve your analytical goals.

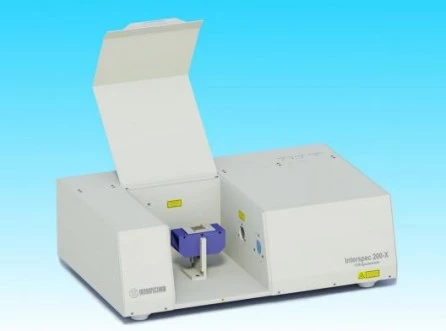

FTIR/FTNIR Bench Top Spectrometer Interspec 200-X
Specifications
| Standard Measurement Range: | 7000 – 400 cm-1 |
|---|---|
| Max Resolution: | 1 cm-1 |
| Wavelength Range, NIR: | 14000-5800 cm⁻¹ or 9000-3850 cm⁻¹ |
| Resolution, Option: | 0.5 cm⁻¹ |
| Beam At Sample: | 10 mm dia. |
| Operating System: | Windows based |
| Data Acquisition System: | 18 bit, high speed |
| Interface: | USB 2.0 |
| Power: | 12 VDC, 30 W |
| Sample Compartment: | W20xD26xH16 cm |
| Dimensions: | W59xD39xH19 cm |
| Weight: | 24 kg |
Download Data Sheet
Features
- Wide Spectral Range: IR 7000–400 cm⁻¹; NIR options 14000–5800 cm⁻¹ or 9000–3850 cm⁻¹ for versatile analysis
- High Spectral Resolution: Standard 1 cm⁻¹; optional 0.5 cm⁻¹ for enhanced detail
- Large Sample Beam: 10 mm diameter beam ensures optimal sample interaction
- Advanced Data Acquisition: 18-bit high-speed system for precise, reliable measurements
- User-Friendly Software: Windows-based OS for intuitive control and analysis
- Fast Data Transfer: USB 2.0 interface for easy connectivity
- Compact Sample Compartment: 20 x 26 x 16 cm facilitates easy sample handling
- Space-Saving Design: Overall dimensions 59 x 39 x 19 cm suitable for bench-top use
- Moderate Weight: 24 kg for stable and stationary operation
- Low Power Consumption: Operates on 12 VDC, 30 W power supply
Applications
- Pharmaceutical Analysis: Utilize the FTIR spectrometer for the identification and quantification of pharmaceutical compounds, ensuring quality control and compliance with industry standards.
- Polymer Analysis: Analyze polymer compositions and monitor chemical changes during processes such as curing and degradation.
- Environmental Monitoring: Detect and measure pollutants and contaminants in air, water, and soil samples for environmental analysis.
- Food Quality Control: Ensure the quality and safety of food products by identifying adulterants and verifying ingredient authenticity.
- Material Science: Investigate the chemical properties of materials for research and development in material science.
- Forensic Analysis: Analyze trace evidence in forensic investigations to identify substances and support legal cases.
- Research and Development: Support scientific research with precise and accurate spectroscopic analysis for various applications.
- Petrochemical Industry: Analyze crude oil and its derivatives for composition and quality control in petrochemical processes.
Frequently Asked Questions
What are the dimensions of the Interspec 200-X?
What is the Interspec 200-X series of FTIR spectrometers?
What is the power source for the Interspec 200-X?
What is the resolution of the Interspec 200-X?
What is the wavelength range of the Interspec 200-X?
