Description
The ARCoptix FT-MIR Rocket is a small footprint FT-IR spectrometer that offers high resolution and sensitivity. The device is perfect for free-space measurements or fibered applications thanks to a removable fiber adapter (included).
The FT-MIR Rocket is designed for highly reproducible chemometric analysis, and it is also used for characterization of infrared lasers, including pulses sources with repetition rate >10 kHz. The system displays excellent stability in both wavelength and intensity scales, making it an ideal tool for demanding applications.

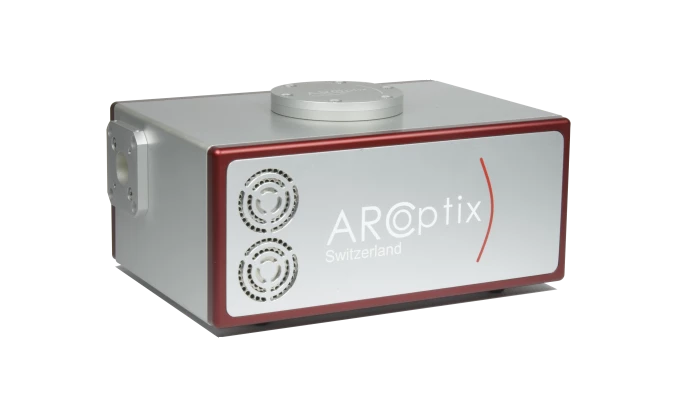

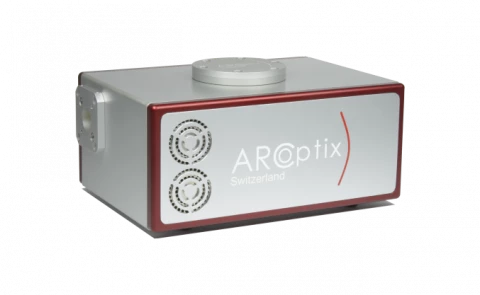

ARCoptix FT-MIR Rocket - Mid-Infrared Fourier Transform Spectrometer FTMIR-L1-060-4TE
Specifications
| Standard Measurement Range: | 5000 – 1660 cm-1 |
|---|---|
| Max Resolution: | 4 cm-1 |

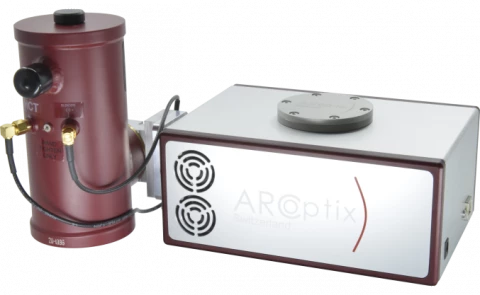

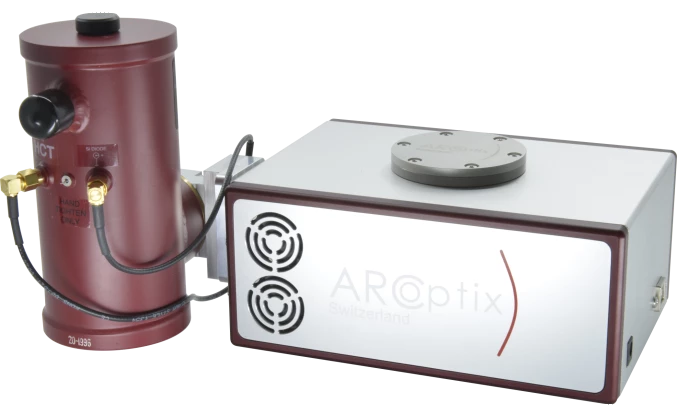

| Detector: | Peltier cooled MCT or LN2 cooled MCT |
| Connectivity: | USB |
| Detector Type: | MCT (4-TE cooled) |
| Detector Peak D: | >1x1011 [cm Hz1/2W-1 |
| Signal-to-noise Ratio: | > 80'000:1i |
| Removable Fiber-optic Coupler: | Lensed (CaF2 fiber coupler) |
| Recommended Fiber: | CIR (chalcogenide) fibers, 1-6μm |
| Fibered Interface: | Fiber core up to Ø 1mm, NA=0.25, SMA 905 connector |
| Free-space Interface: | Ø 12.7mm collimated (max ~30mrad half angle) |
| Interferometer Type: | Permanently aligned, double retro-reflector design |
| Wavenumber Repeatability: | <10 PPM |
| Scan Frequency: | >4 Hz @ 4cm-1 |
| Internal Reference Laser: | Temperature-stabilized solid-state laser @850nm |
| A/D Converter: | 24 bit |
Download Data Sheet
Features
- High resolution 4cm-1, optionally up to 0.5 cm-1
- Peltier cooled MCT detector available
- 4 spectral ranges: 5000-1660cm-1 (2-6μm), 6600-1200cm-1 (1.5-8.5μm), 5000-830 cm-1 (2-12μm) or 5000-650 cm-1 (2-16μm)
- USB connectivity
- Compact size (world's smallest FTIR)
- Cost-effective
Applications
- Highly reproducible chemometric analysis
- Characterization of infrared lasers, including pulses sources with repetition rate >10 kHz
- IR measurements that need fiber coupling or any other special arrangements such as IR light source characterization
- Demanding applications that require high signal-to-noise ratio (SNR) or specific setups with very low optical throughput
Frequently Asked Questions
What are the features of the ARCoptix FT-MIR Rocket?
The ARCoptix FT-MIR Rocket features high resolution, a Peltier cooled MCT detector, and four spectral ranges to choose from.
What are the applications of the ARCoptix FT-MIR Rocket?
The ARCoptix FT-MIR Rocket is used for highly reproducible chemometric analysis, characterization of infrared lasers, and demanding applications that require high signal-to-noise ratio or specific setups with low optical throughput.
Is the ARCoptix FT-MIR Rocket compatible with fibered accessories?
Yes, the ARCoptix FT-MIR Rocket is compatible with fibered accessories thanks to its removable fiber adapter.
What is the size of the ARCoptix FT-MIR Rocket?
The ARCoptix FT-MIR Rocket is the world's smallest FTIR spectrometer and has a compact size.
How can the ARCoptix FT-MIR Rocket be connected to other devices?
The ARCoptix FT-MIR Rocket has USB connectivity, allowing it to be easily connected to other devices.
