Description

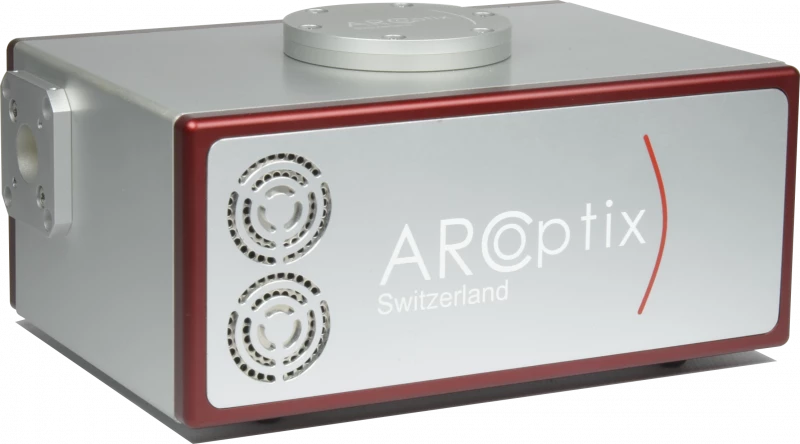

The ARCoptix FT-MIR Rocket is a high performance, compact and reliable spectrometer that is ideal for various applications in the mid-infrared. The concentration levels of CO2 or H2O in the interferometer volume are conveniently minimized thanks to a homemade, replaceable desiccant capsule.
Thanks to its permanently aligned interferometer and solid-state reference laser, the FT-MIR Rocket offers excellent stability in both intensity and wavelength scales.
With four available spectral ranges and adjustable spectral resolution down to 2cm-1 (0.5cm-1 on request), the FT-MIR Rocket is a highly flexible instrument that can be tailored to your application. Designed for convenience and ease-of-use, our FT-MIR spectrometer is readily operational with our ARCspectroRocket software using a standard USB 2.0 connection.
FTIR ROCKET (MIR version)
Specifications
| Standard Measurement Range: | 650 – 5000 cm-1 |
|---|---|
| Max Resolution: | 0.5 cm-1 |
Download Data Sheet
Features
- High performance, maintenance-free TEC MCT detector available
- Also available with LN2 MCT detector
- Highly compact (18cm X 16cm X 8cm)
Applications
- Mid-IR Optical Spectrum Analyzer (OSA) for MIR Lasers and LEDs
- Liquid, thin-film or gas measurement
- Material identification and quantification in various fields such as geology, food and beverage industry, etc.
Frequently Asked Questions
What is the FTIR ROCKET (MIR version) used for?
The FTIR ROCKET (MIR version) is a spectrometer that is ideal for various applications in the mid-infrared, such as optical spectrum analysis, measurement of liquid, thin-film or gas, and material identification and quantification in fields like geology and the food and beverage industry.
How does the FTIR ROCKET minimize the concentration levels of CO2 or H2O?
The FTIR ROCKET minimizes the concentration levels of CO2 or H2O in the interferometer volume by using a homemade, replaceable desiccant capsule.
What are the available spectral ranges for the FTIR ROCKET?
The FTIR ROCKET has four available spectral ranges: 2-6 µm, 1.5-8.5 µm, 2-12 µm, and 2-16 µm.
Can the spectral resolution of the FTIR ROCKET be adjusted?
Yes, the spectral resolution of the FTIR ROCKET can be adjusted. It can be set to 8cm-1, 4cm-1, 2cm-1, and 0.5cm-1 (on request).
How is the FTIR ROCKET connected to a computer?
The FTIR ROCKET is connected to a computer using a standard USB 2.0 connection.
