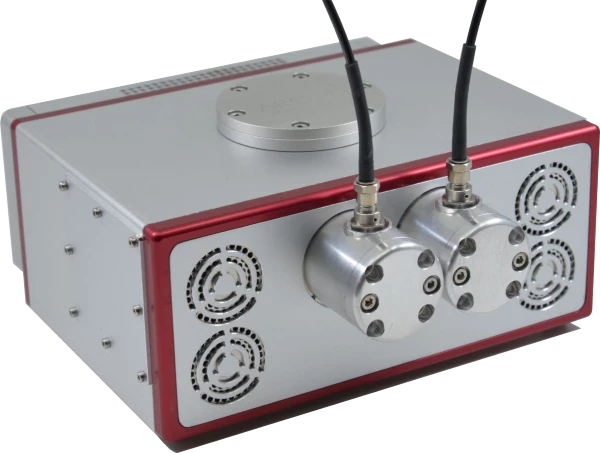

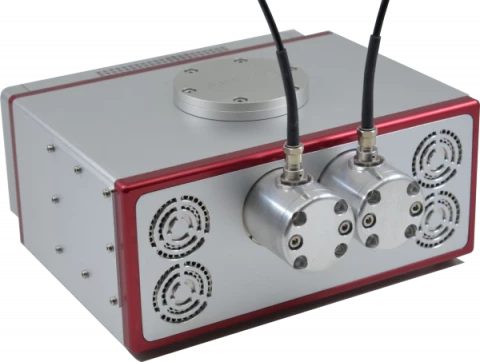

ARCoptix FT-IR Fiber Coupler Spectrometer FTNIR-FC-025-2TE

Name: ARCoptix FT-IR Fiber Coupler Spectrometer FTNIR-FC-025-2TE
Brand: ARCoptix S.A.
Availability: InStock

Description

The ARCoptix FT-IR fiber coupler spectrometer is a compact and robust all-in-one solution for fibered applications such as reflection probes used for diffuse reflection measurements.

It features an internally mounted optical source that allows for modulation of light before coupling it to the output port, making it more resilient to external perturbations such as background thermal emission.

It comes equipped with a high-performance MCT detector and is available in both 4-stage thermo-electrically (TE) cooled or liquid-nitrogen cooled options.

Specifications

Standard Measurement Range:	11000 – 4000 cm-1
Max Resolution:	4 cm-1
Feature Specification Detector:	4-stage TE-cooled or liquid-nitrogen cooled MCT detector
Detector Options:	Extended InGaAs detector available in the NIR
Design:	Compact and robust all-in-one solution with internal source
Spectral Range:	0.9-2.5 um
Detector Peak D:	>2 x1011 [cm Hz1/2W-1
Signal-to-noise Ratio:	> 100’000 :1
Recommended Fiber:	Low-OH, multimode silica fiber
Fibered Interface:	Fiber core up to Ø 1mm, NA=0.25, SMA 905 connector
Internal Reference Laser:	795 nm
Power Requirement:	40W @12VDC
Integrated Light Source:	20W QTH lamp
Interferometer Type:	Permanently aligned, double retro-reflector design
Wavenumber Repeatability:	<10PPM
Repeatability <10PPM Scan Frequency:	>4 hz @ 4cm-1

Download Data Sheet

Features

Compact and robust design
All-in-one solution with source, interferometer, detector, and fiber-couplers
Internal optical source for modulation of light
Resilient to external perturbations such as background thermal emission
Available with high-performance TE-cooled or liquid-nitrogen cooled MCT detectors

Applications

Ideal for fibered applications such as reflection probes used for diffuse reflection measurements
Suitable for use in spectroscopic analysis of liquids, solids, and gases
Can be used in a wide range of industries including pharmaceuticals, chemicals, and environmental monitoring

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Switzerland

Sold by:

ARCoptix S.A.

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the ARCoptix FT-IR Fiber Coupler Spectrometer used for?

It is ideal for fibered applications such as reflection probes used for diffuse reflection measurements and can be used in spectroscopic analysis of liquids, solids, and gases.

What are the features of the ARCoptix FT-IR Fiber Coupler Spectrometer?

It has a compact and robust design, an internal optical source for modulation of light, and is resilient to external perturbations such as background thermal emission. It is available with high-performance TE-cooled or liquid-nitrogen cooled MCT detectors.

What industries can benefit from using the ARCoptix FT-IR Fiber Coupler Spectrometer?

It can be used in a wide range of industries including pharmaceuticals, chemicals, and environmental monitoring.

What is the spectral range of the ARCoptix FT-IR Fiber Coupler Spectrometer?

The spectral range varies depending on the model, but it can cover ranges from 11,000 cm-1 to 4,000 cm-1, 5,000 cm-1 to 1,660 cm-1, 5,000 cm-1 to 830 cm-1, or 5,000 cm-1 to 650 cm-1.

What type of detector is used in the ARCoptix FT-IR Fiber Coupler Spectrometer?

It uses either an InGaAs detector (2-TE cooled), MCT detector (4-TE cooled), or MCT detector (LN2 cooled) depending on the model.
