Description
The ARCoptix FT-NIR Rocket Spectrometer is a high-performance, compact, and affordable fibered NIR spectrometer that offers excellent stability in both intensity and wavelength scales. It has a wide wavelength range of 900-2500 nm, a high resolution of 2 cm-1, and very good sensitivity.

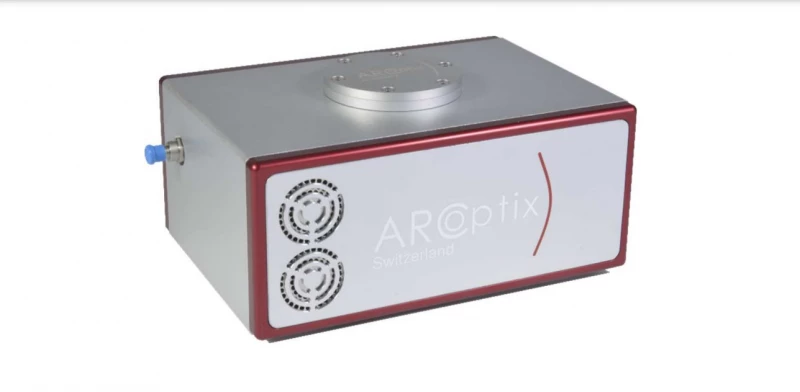

ARCoptix FT-NIR Rocket Spectrometer FTNIR-L1-025-2TE
Specifications
| Standard Measurement Range: | 2 – 8 cm-1 |
|---|---|
| Max Resolution: | 8 cm-1 |
| Wavelength Range: | 900-2500 nm |
| Sensitivity: | Very good with 2TE cooled InGaAs |
| Detector: | Single NIR photodiode |
| Input/Output: | Fibered |
| Stability: | Excellent stability in both intensity and wavelength scales (no dark current-induced drift, internal reference laser) |
| Dimensions: | Compact |
| Compatibility: | ompatible with light sources and sampling accessories (like fibers, cuvette folder, ...) typically used with array-detector based NIR spectrometers. |
Got questions about specs? Use the inquiry form to ask.
Features
- Wide wavelength range of 900-2500 nm
- High resolution of 2 cm-1
- Excellent stability in intensity and wavelength scales
- Very good sensitivity with 2TE cooled InGaAs
- Compact and rugged design
- Easy-to-use fiber input system
- Cost-effective with a single NIR photodiode
Applications
- Chemometric analysis
- Qualitative and quantitative analysis of materials
- Identification of chemical compounds
- Analysis of food and agriculture products
- Pharmaceutical analysis
- Petrochemical analysis
- Environmental analysis
Frequently Asked Questions
What is the wavelength range of the ARCoptix FT-NIR Rocket Spectrometer?
The wavelength range is 900-2500 nm.
What is the resolution of the spectrometer?
The spectrometer has a high resolution of 2 cm-1.
What are the applications of the ARCoptix FT-NIR Rocket Spectrometer?
The spectrometer can be used for chemometric analysis, qualitative and quantitative analysis of materials, identification of chemical compounds, analysis of food and agriculture products, pharmaceutical analysis, petrochemical analysis, and environmental analysis.
Is the spectrometer easy to use?
Yes, the spectrometer has an easy-to-use fiber input system and is readily operational with the ARCspectroRocket software using a standard USB 2.0 connection.
What is the detector type used in the spectrometer?
The spectrometer uses an extended type InGaAs 2-stage TE-cooled detector.
