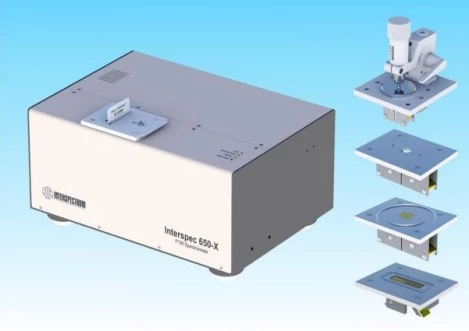

Compact FTIR Spectrometer Interspec 650-X

Specifications

Standard Measurement Range: 7000 – 400 cm-1
Max Resolution: 0.5 cm-1
Wavelength Range With ZnSe ATR Accessory: 6000 to 600 cm-1
Sample Handling: 1 or 3 bounce ATR, transmission, reflection
Beamsplitter: Multicoated KBr
Frequency Reference: VCSEL laser
IR Source: High intensity air cooled ceramic
Data Acquisition System: 24 bit, high speed
Software: Windows based
Interface: USB 2.0
Power: 12 VDC, 25 W
Dimensions: W35xD25xH18 cm
Weight: 14 kg
Document icon Download Data Sheet Download icon

Features


  • Compact Design: The Interspec 650-X is a compact FTIR spectrometer, making it ideal for laboratories with limited space.

  • Wavelength Range: Offers a broad wavelength range from 7000 to 400 cm-1, and 6000 to 600 cm-1 with the optional ZnSe ATR accessory.

  • High Resolution: Provides a resolution of 1 cm-1, with an optional upgrade to 0.5 cm-1.

  • Versatile Sample Handling: Supports 1 or 3 bounce ATR, transmission, and reflection sample handling methods.

  • Advanced Beamsplitter: Equipped with a multicoated KBr beamsplitter for enhanced performance.

  • Accurate Frequency Reference: Utilizes a VCSEL laser for precise frequency referencing.

  • Powerful IR Source: Features a high intensity air-cooled ceramic IR source for reliable operation.

  • Superior Data Acquisition: Incorporates a 24-bit high-speed data acquisition system for accurate results.

  • User-Friendly Software: Comes with Windows-based software for easy operation and data analysis.

  • Convenient Connectivity: Connects via USB 2.0 interface for straightforward integration with computers.

  • Efficient Power Usage: Operates on 12 VDC and consumes only 25 W of power.

  • Compact Dimensions: Measures W35xD25xH18 cm, making it easy to fit into your lab setup.

  • Lightweight: Weighs just 14 kg, allowing for easy transport and handling.

Applications


  • Material Identification and Characterization: Enables precise analysis of chemical compositions in various samples.

  • Quality Control in Manufacturing: Ensures product consistency and detects contaminants efficiently.

  • Chemical and Pharmaceutical Analysis: Supports detailed molecular studies critical for formulation and safety.

  • Environmental Monitoring and Research: Detects pollutants and monitors air, water, and soil quality.

  • Polymer and Plastics Testing: Analyzes polymer structures to assess material properties and performance.

  • Food and Agriculture Product Analysis: Evaluates food quality, safety, and composition for regulatory compliance.

  • Academic and Research Laboratories: Provides versatile spectroscopic capabilities for education and experimental research.
