Description

The ARCoptix OEM FT-IR module is a robust, compact, and reliable OEM FT-IR module that is optimized for system integration. It is ideal for system integrators or laboratories looking for a customized FTIR measurement design.

The module comes in two configurations: a fully integrated OEM module (OEM010) with an integrated light source and detector and a flexible OEM module (OEM011) with an external detector module.

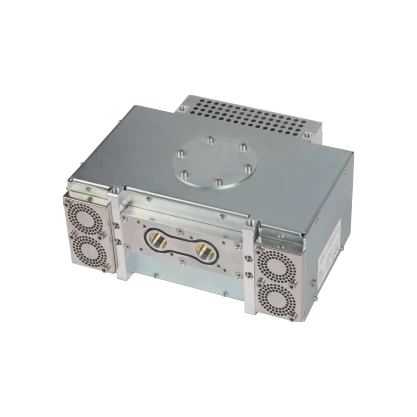

ARCoptix OEM FT-IR Module FTIR-OEM010-060-4TE

Specifications

Standard Measurement Range: 1660 – 5000 cm-1
Max Resolution: 5000 cm-1
Light Source: Built-in SiC globar heated to 1550 °K and regulated in temperature
Detector: Highly sensitive TE-MCT detector
Connectivity: USB
Configuration: Fully integrated OEM module (OEM010) or flexible OEM module (OEM011)
Dimensions: OEM010: 180 mm x 130 mm x 115 mm
Weight: 2 kg
Operating: 5-40 °C
Storage: -20 +60 °C
Power Supply: 24 VDC, 65 W

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Robust, compact, and reliable OEM FT-IR module optimized for system integration
  • Two configurations: fully integrated OEM module (OEM010) and flexible OEM module (OEM011)
  • The OEM010 features a built-in SiC globar heated to 1550 °K and regulated in temperature to ensure stable illumination
  • The OEM011 displays identical performances as the OEM010 while providing an added degree of freedom thanks to its separate detector module
  • High resolution of 2 cm-1 (optionally up to 0.5 cm-1)
  • Easily connected to IR fiber systems
  • 3 possible TE-cooled MCT detector ranges: 5000-1700cm-1 (2-6μm), 6700-1200cm-1 (1.5 - 8.5μm), or 5000-830 cm-1 (2-12μm)
  • USB connectivity
  • Cost-effective

Applications

  • Chemical analysis
  • Pharmaceutical analysis
  • Food analysis
  • Environmental analysis
  • Material science
  • Quality control
  • Research and development

Frequently Asked Questions

What is the ARCoptix OEM FT-IR module used for?
The ARCoptix OEM FT-IR module is used for system integration and customized FTIR measurement design.
What are the two configurations of the ARCoptix OEM FT-IR module?
The module comes in two configurations: a fully integrated OEM module (OEM010) with an integrated light source and detector, and a flexible OEM module (OEM011) with an external detector module.
What is the resolution of the ARCoptix OEM FT-IR module?
The module has a high resolution of 2 cm-1, optionally up to 0.5 cm-1.
What are the possible detector ranges for the ARCoptix OEM FT-IR module?
The module has three possible TE-cooled MCT detector ranges: 5000-1700cm-1 (2-6μm), 6700-1200cm-1 (1.5 - 8.5μm), or 5000-830 cm-1 (2-12μm).
How is the ARCoptix OEM FT-IR module connected to IR fiber systems?
The module can be easily connected to IR fiber systems.

Got more questions? Use the inquiry form to ask the supplier directly.
