Description
The i-Raman® Plus is part of our award winning line of i-Raman portable Raman spectrometers powered by our innovative smart spectrometer technology. Using a high quantum efficiency CCD array detector with deeper cooling and high dynamic range, this portable Raman spectrometer delivers an improved signal to noise ratio for up to 30 minutes, making it possible to measure weak Raman signals. The i Raman Plus features the unique combination of wide spectral coverage and high resolution with configurations measuring from 65 cm-1 to up to 4200 cm-1, enabling you to measure stretching bands around 3100 cm-1. The system’s small footprint, lightweight design, and low power consumption provide research grade Raman capabilities anywhere. The i-Raman Plus comes standard with a fiber optic probe, and can be used with a cuvette holder, a video microscope, an XYZ positioning stage probe holder and our proprietary BWIQ® multivariate analysis software and BWID® identification software. With the i-Raman Plus, a high precision qualitative and quantitative Raman solution is at your fingertips.

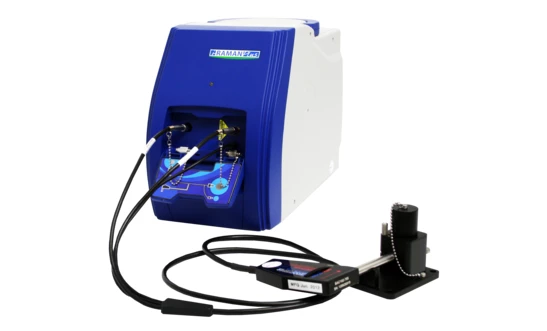

i-Raman Plus Portable Raman Spectrometer
Specifications
| Excitation Wavelength: | 532 nm |
|---|---|
| Raman Shift Range: | 150 – 4200 cm^-1 |
| Spectral Resolution: | 3.5 cm^-1 |
| Excitation Wavelength: | 785 nm |
Features
- Patented CleanLaze® Technology for Laser Stabilization
- Rayleigh line cut-off at 150 cm-1 (65 cm-1 Option Available)
- Fiber Optic Coupling for Convenient Sampling
- 532nm and 785nm Excitation Configurations Available
- Comprehensive sampling accessories for solid and liquid samples
Applications
Art & Archaeology
Bioscience and Medical Diagnosis
Polymers and Chemical Processes
Semiconductor & Solar Industry
Geology and Mineralogy
Pharmaceutical Industry
Environmental Science
Raman Microscopy
Forensic Analysis
Gemology
Teaching
Quality Control
General Research
Frequently Asked Questions
What applications is the i-Raman Plus suitable for?
What accessories come with the i-Raman Plus?
What is the i-Raman Plus Portable Raman Spectrometer?
What is the signal to noise ratio of the i-Raman Plus?
What is the wavelength range of the i-Raman Plus?
