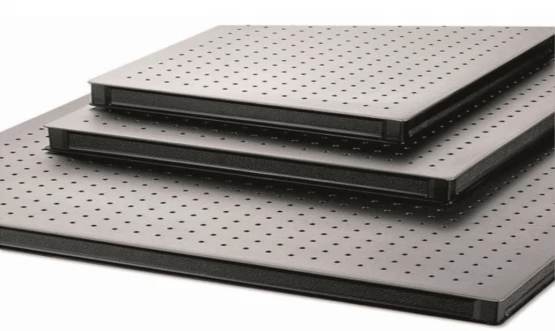

Thumbnail of NTBH series Honeycomb Optical Breadboards photo 1

Description

NTBH series Stainless Steel Breadboards feature high rigidity and excellent damping properties with three layers structure, the top layer is made of stainless steel with high surface flatness, the center layer is hexagon honeycomb structure, the bottom layer is high hardness carbon steel. With a grid of M6 tapped holes, it is convenient for mounting optical posts and rods. The matte surface reduce the reflectivity that make it suitable for optical experiments. The tapped hole has sealed cup which make the hole easy to clean. This series products are suitable for critical applications.

NTBH series Honeycomb Optical Breadboards

Visit the Zolix Instruments CO.,LTD Store

Specifications

Table Material: Stainless Steel
Hole Pattern: M6 holes separated by 25mm
Table Length: 300 mm
Table Width: 300 mm
Table Thickness: 50 mm
Flatness: +/- 0.005 mm/mm^2

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High flatness stainless steel surface;
  • Matte surface can reduce the reflectivity;
  • A grid of M6 tapped holes makes the mounting quick and easy;
  • The tapped hole has sealed cup which make the hole easy to clean.

Frequently Asked Questions

What is the NTBH series Honeycomb Optical Breadboard made of?
The NTBH series Honeycomb Optical Breadboard is made of stainless steel and high hardness carbon steel.
What are the features of the NTBH series Honeycomb Optical Breadboard?
The features of the NTBH series Honeycomb Optical Breadboard include high flatness stainless steel surface, matte surface to reduce reflectivity, a grid of M6 tapped holes for easy mounting, and sealed cups in the tapped holes for easy cleaning.
What are the dimensions and weight options for the NTBH series Honeycomb Optical Breadboard?
The NTBH series Honeycomb Optical Breadboard is available in various thicknesses ranging from 50mm to 200mm. The weight varies depending on the thickness, with options ranging from 110Kg/m2 to 140Kg/m2.
What are the available sizes for the NTBH series Honeycomb Optical Breadboard?
The NTBH series Honeycomb Optical Breadboard is available in a variety of sizes, including 300×300mm, 450×300mm, 450×450mm, 600×300mm, 600×450mm, 600×600mm, 900×450mm, 900×600mm, 900×900mm, 1000×800mm, 1200×600mm, 1200×800mm, 1200×900mm, 1200×1200mm, 1500×600mm, 1500×900mm, 1500×1000mm, 1500×1200mm, 1500×1500mm, 1800×900mm, 1800×1000mm, 1800×1200mm, 1800×1500mm, 2000×1000mm, 2000×1200mm, 2000×1500mm, 2000×1500mm, 2400×1200mm, 2400×1500mm, 2400×1800mm, 3000×1200mm, and 3000×1500mm.
What applications are the NTBH series Honeycomb Optical Breadboards suitable for?
The NTBH series Honeycomb Optical Breadboards are suitable for critical applications in optical experiments and can be used for mounting optical posts and rods.
