Description

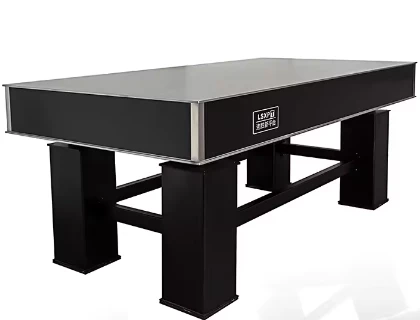

Experience unmatched stability and precision with our Stainless Steel Precision Air Pressure Leveling Table, model POT-P-006006. Engineered and manufactured in Jiangxi, China, this table is specifically designed to meet the rigorous demands of industrial and scientific applications where exactness is paramount.
With a robust stainless steel construction and advanced electric air pressure technology, it ensures a vibration-free environment, optimizing your operational efficiency. Our table offers both automatic and manual leveling options, allowing for precise adjustments and re-leveling accuracy of ±0.1 mm.
The silent compressor minimizes noise to less than 50 dB, providing a quiet working environment. Ideal for tasks requiring high-level precision, this table is a staple in laboratories and manufacturing facilities that prioritize accuracy and quality.

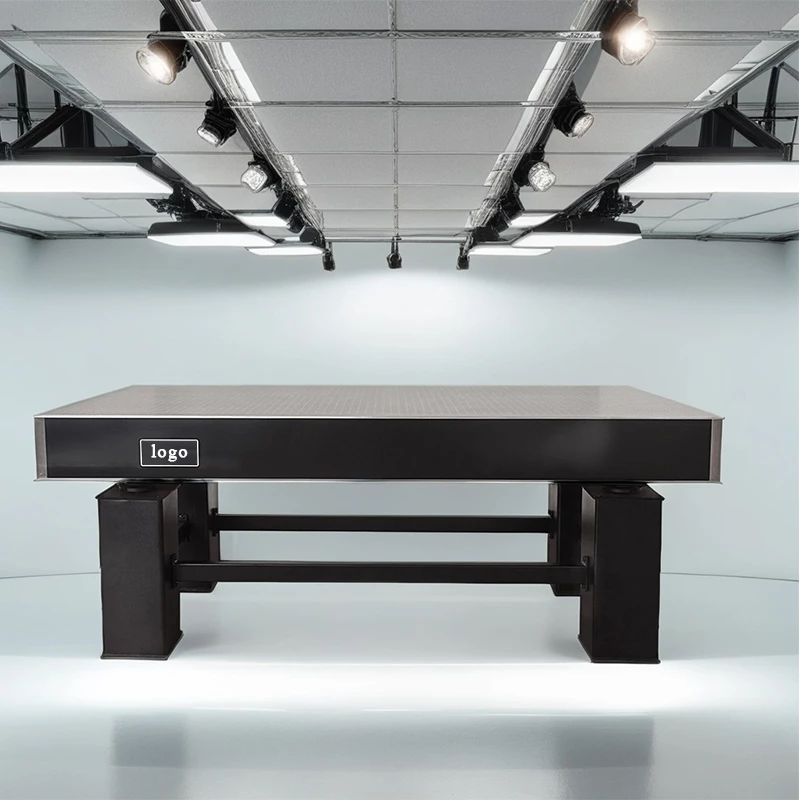

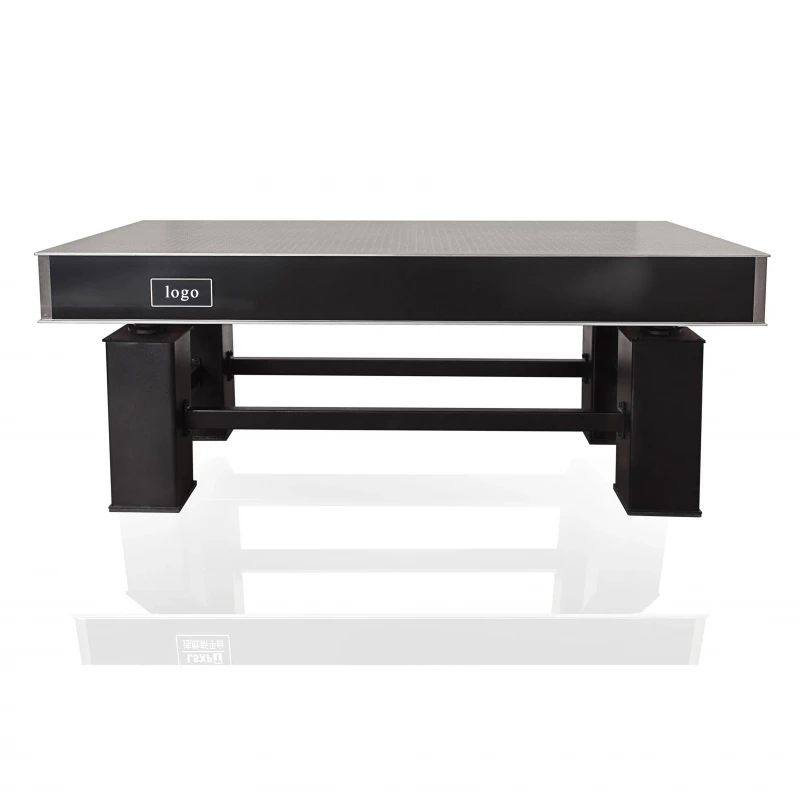

POT-P Series Advanced Active Vibration Isolation Optical Table with Enhanced Isolators
Specifications
| Table Material: | Stainless Steel |
|---|---|
| Table Length: | 900 mm |
| Table Width: | 600 mm |
| Table Thickness: | 800 mm |
| Flatness: | Custom |
| Model: | LSSP-X-13VZ-01 |
| Platform Size: | 34x34mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 2kg |
| Driving Position: | Center |
| Net Weight: | 0.07kg |
| Model: | LSSP-X-13VZ-02 |
| Platform Size: | 40x40mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 3kg |
| Driving Position: | Center |
| Net Weight: | 0.12kg |
| Model: | LSSP-X-13VZ-03 |
| Platform Size: | 60x60mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 3kg |
| Driving Position: | Center |
| Net Weight: | 0.17kg |
| Model: | LSSP-X-13VC-01 |
| Platform Size: | 34x34mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 2kg |
| Driving Position: | Side |
| Net Weight: | 0.07kg |
| Model: | LSSP-X-13VC-02 |
| Platform Size: | 40x40mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
Download Data Sheet
Features
- Place of Origin: Jiangxi, China
- Material: High-quality stainless steel for durability and ease of maintenance
- Power Source: Electric air pressure for stable and controlled operation
- Voltage: Standard 220V for efficient power usage
- Inherent Frequency: 6.5-12Hz vertically and 3.0-8.0Hz horizontally, reducing vibrations effectively
- Leveling Type: Dual leveling capabilities with automatic and manual options to suit various operational needs
- Table Height: Total table height of 800mm, designed for comfortable access
- Compressed Air Source: Includes a silent compressor with a noise level below 50 dB for a quieter workspace
- Re-leveling Accuracy: Highly precise ±0.1mm re-leveling capability
- Table Top Flatness: Superior flatness with ≤0.05mm/m², ensuring accurate results
- Surface Roughness: Surface roughness of ≤0.8μm with a matte surface finish to reduce glare and enhance usability
- Isolator Height Adjustment Range: Adjustable ±10mm for flexible operation
- Warranty: 1-year warranty, providing peace of mind and reliability
- Customized Support: OEM options available to tailor the product to specific requirements
Applications
- Microscopy
- Medical biology
- Optical path testing
- Optical manufacturing
- Instruments and equipment with low vibration requirements
Frequently Asked Questions
What are the platform sizes available for the Liansheng Optics Series Linear Translation Stages?
The platform sizes available are 34x34mm, 40x40mm, and 60x60mm.
What is the travel range for the Liansheng Optics Series Linear Translation Stages?
The travel range for all models in the Liansheng Optics Series is 13mm.
What is the accuracy of the Liansheng Optics Series Linear Translation Stages?
The accuracy of these linear translation stages is 0.005mm.
What driving mode do the Liansheng Optics Series Linear Translation Stages use?
They use a micrometer screw as the driving mode.
What is the load capacity for the LSSP-X-13VZ-01 and LSSP-X-13VC-01 models?
Both the LSSP-X-13VZ-01 and LSSP-X-13VC-01 models have a load capacity of 2kg.
How does the driving position differ between the VZ and VC models?
The VZ models have a center driving position, while the VC models have a side driving position.
What is the net weight of the LSSP-X-13VZ-03 model?
The net weight of the LSSP-X-13VZ-03 model is 0.17kg.
