Precision Breadboards and Table Tops for Optics

Did You Know?

Optical table tops are indispensable equipment for optics and photonics research. They are made of very rigid materials such as steel, aluminum, and carbon fiber with minimum deflection so that the alignment of optical components remains stable over time. Usually, the material used for optical tables has a high speed of sound, and therefore a high frequency of the first eigenmode. Any lower-frequency vibrations applied to the table will not produce appreciable resonant responses, making the setup less sensitive to vibrations from motorized optics, cooling water pumps, etc. Breadboards generally perform similar functions to optical tables. They are not as good as optical tables, but weigh less and are adequate for smaller optical systems that do not require extremely high level of stability. For these reasons and due to their lower costs compared to optical tables, breadboards are often used in academic teaching and research labs.

Frequently Asked Questions

Optical Tabletops and breadboards are platforms commonly used by optical engineers to stabilize and support components during manufacturing and experimentation processes. They are frequently used for optics and photonics research, and often utilized for the testing and repair of standard optical devices (e.g. lasers, microscopes, telescopes).

Breadboards and Table Tops for Optical Setups

Breadboards and Table Tops are rigid, flat platforms used to mount and align optical and photonic components. They provide a stable reference plane with standardized hole patterns for posts, mounts, rails, and translation stages. On FindLight, this subcategory aggregates Breadboards and Table Tops suited for research labs, prototyping benches, production test stations, and educational optics experiments.

Key Specifications and Configurations

When comparing Breadboards and Table Tops, engineers typically evaluate:

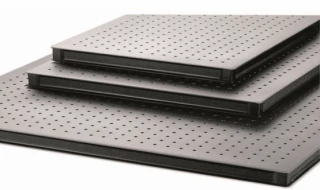

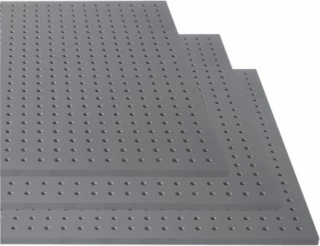

  • Material and construction: Common core materials include aluminum honeycomb, solid aluminum, and steel, often with ferromagnetic stainless or black anodized top skins. Construction impacts rigidity, thermal expansion, and magnetic clamping compatibility.
  • Thickness and stiffness: Typical thickness ranges from ~12.7 mm (0.5 in) for lightweight breadboards to 200 mm or more for large table tops. Higher thickness and optimized core design improve bending stiffness and modal behavior.
  • Mounting hole pattern: Standard arrays are M6 on 25 mm centers or 1/4-20 on 1 in centers, through-holes or blind tapped. Edge margins, counterbores, and grid accuracy are critical for complex assemblies.

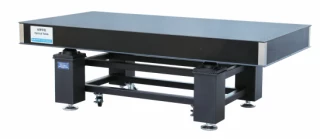

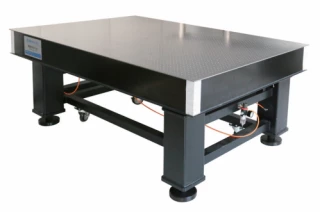

  • Damping and vibration isolation: Some Breadboards and Table Tops integrate passive damping layers or tuned mass dampers. Others are designed to mount on external vibration isolation legs or frames.
  • Surface finish and flatness: Ground or lapped surfaces with specified flatness over the full area reduce alignment errors in interferometric and imaging setups.
  • Size and weight: From compact optical breadboards for benchtop experiments to large table tops for full optical test lines, footprint and mass affect handling, support structure, and lab space planning.

Typical Use Cases

Breadboards and Table Tops on FindLight support laser beam delivery benches, interferometers, fiber-optic test stations, microscopy systems, spectroscopy setups, and alignment fixtures for imaging lenses and detectors. Their hole patterns allow repeatable mounting of kinematic mirror mounts, lens posts, fiber positioners, and translation stages.

Buyer Guidance on FindLight

Use FindLight to compare Breadboards and Table Tops across manufacturers by material, thickness, hole pattern, damping approach, and size. Review datasheets for dynamic compliance, resonance frequencies, flatness, and load capacity where provided. For integration with existing frames or isolators, verify mounting interface, bolt patterns, and height. You can request quotes from multiple suppliers directly from the product pages to evaluate pricing and lead time; no registration is required to initiate quote requests.
